5T/H ac radiator recycling line BS-ACP1200

Category
5T/H ac radiator recycling line BS-ACP1200
ACP-1200 radiator granulator machine from bsgh factory

5T/H ac radiator recycling line BS-ACP1200

  • Our BS-ACP1200 is the 2nd generation of Radiator Shredder Recycling Line BS-ACP1000.
  • The first 110KW vertical crusher of ac radiator recycling line ensures a complete tearing with very less aluminum-iron or aluminum-copper blocks.
  • Triple advanced separating steps ensure 99% recovery rate of copper, aluminum, and iron, maximizing your scrap radiator value.
  • Capable of handling all types of radiators, regardless of shape, size, or number of layers.
  • Processing capacity is up to 5T/H, nearly doubling the efficiency of standard lines.
  • Very less copper loss.
Sofortangebot

products details

Forget about manual sorting. Forget about material limitations. BS-ACP1200 ac radiator recycling line from BSGH Granulator isn’t just an upgrade to the ACP1000—it is a complete revolution in radiator recycling efficiency. This model is a revolutionary model based on common radiator recycling plant, has a different first preshredder, special structure and make the whole ac radiator recycling plant more powerful and bigger crushing capability, because of this structure, you can get bigger processing 5T/H capacity and very less copper loss than traditional recycling plant.

video description

  • Customer: From HK
  • Bought in July, 2017
  • Customer have recycling yard

In July 2017, our HK customer Mr. Chen ordered 5T/H ac radiator recycling line BS-ACP1200 from us. Below is a feedback video he sent to us in 2025:
You can see after 8 years use, his 5T/H ac radiator recycling line can still keep a stable performance. There only needs one operator to feed scraps on the conveyor belt then realize full automatic working, reducing Chen’s labor and time cost. Look! The raw material includes curved and wide, multi-layer radiator, but our BS-ACP1200 can all process at ease, copper, aluminum, and iron are completely separated with extremely high purity, helping Mr. Chen get cost back within half month.

5T/H aC radiator recycling line BS-ACP1200 Parameters

BSGH Granulator R&D team is constantly upgrading the ac radiator recycling line, and BS-ACP1200 is the updated second generation, you may wonder what’s the change, pls discover the details below.

Modell5T/H ac radiator recycling line BS-ACP1200
VerarbeitungskapazitätAbout 5 Tons / Hour
Separation Rate≥99%
Dust Collection Efficiency≥99%
Max. Feeding Size (L×W×H)1000×800×70 MM
Output Size (Granules)About 2–5 CM
Total Installed PowerAbout AC 242.55 KW
Stromspannung380 V/440 V/480 V oder kundenspezifisch
Power of Crusher 1110KW
Power of Crusher 275KW
Machine Dimensions (L×W×H)27000*8000*5000MM (2*40″HQ)

Main structure of 5T/H aC radiator recycling line

5T/H ac radiator recycling line BS-ACP1200 mainly consists of a vertical pre-shredder, main crusher, air separator, vibrating table, magnetic separator, and dust removal system. All components work together to complete the entire process from crushing to separation.

Aufbau der Heizkörperrecyclingmaschine
  • Vertical crusher: The first crusher with vertical structure can directly pre-shred various complex radiators into 10-40cm fragments.
  • Main crusher: Further crushes scrap radiators to 15-35mm in size.
  • Air separator: The core component of the separation system, capable of efficiently separating most of the lighter aluminum particles from all mixed particles.
  • Vibrating table: Vibrating tables can completely separate copper and aluminum by utilizing the difference in weight, making separation rate up to 99%.
  • Magnetic separator:  Remove iron inside the mixed particles out.
  • Dust collection system: Collect dust generated during crushing and sorting in real time to keep the working environment clean.

How to choose the best AC radiator recycling line?

When you click in this page, you may have read our radiator shredder recycling line BS-ACP1000,  and hesitate which to choose, so we will figure out the main difference between them so that you can make a wise decision and invest your AC radiator recycling line.

  1. Processing capacity of BS-ACP1000 is 2-3T/H and BS-ACP1200 is 5T/H.
  2. The price of BS-ACP1200 is higher than that of BS-ACP1000, so if you have enough budget, you can choose BS-ACP1200.
  3. The core difference lies in the first crusher, let’s explore below:
first double shaft shredder of industrial ac radiator recycling line

two shaft crusher

The first crusher of BS-ACP1000 is a double shaft shredder machine, driven by two 45kw motors, the moving and fixed blades squeeze and tear scrap ac radiators into uniform 2-5cm fragments, but owing to the serrated shaft structure, there maybe few aluminum-iron or copper-aluminum blocks sometimes.

vertical crusher of heavy duty ac radiator recycling line acp1200 from bsgh

Unique vertical crusher

The vertical crusher of BS-ACP1200 is first designed by our R&D team, driven by powerful 110kw motor, it can completely pre-shred scrap radiator into small pieces, resulting in no aluminum-iron or copper-aluminum blocks, meanwhile, the final metal chips are much purer.

raw material & final products

Our 5T/H ac radiator recycling line is suitable for radiators of various shapes and sizes, including automotive radiators, air conditioning radiators, refrigerator radiators, industrial radiators, and aluminum-clad iron radiators. In addition, it can also process various used household appliances without requiring pre-disassembly of the motor.

Rohmaterial für Schrott-Kühlerrecyclingmaschine

The final products include copper sheets and aluminum foils, as well as iron particles, at least 99% metal recycled from your scrap AC radiators.

Endprodukte aus Kupfer und Aluminium

5T/h aC radiator recycling line loading

To ensure your 5T/H ac radiator recycling line BS-ACP1200 reach your door the same as its package, we have perfected a rigorous, three-stage protection:

  • Each part is packed in a film, resistance moisture, sea salt corrosion, and dust throughout the journey.
  • Our expert logistics team strategically loads the entire production line into 2*40HQ containers, eliminating shifting or vibration.
  • Our reliable shipping companies manage the transit from our factory to your port.

The end-to-end shipment ensures a secure, damage-free delivery. When you open the container, you will find your equipment in the exact “factory-fresh” condition as the day it was tested.

Verpackung von BS-F3000
Verpackung BS-N125
BS-D65 Elektrostatischer Separator Kupferdrahtgranulator Ladebehälter

positive feedback

Our 5T/H ac radiator recycling line BS-ACP1200 has received consistent praise from recyclers around the world for its excellent recycling performance and service life that far exceeds the market average.

“We have a lot of multi-layer radiators to process, and this machine is so convenient because it can feed them directly without pre-cutting. It can easily process 2000kg of radiators per hour, solving the problem of radiator accumulation at my recycling station.”
Gutes Feedback1
Michael T.Recycling Operations Manager
“We have very high requirements for metal purity, and the BS-ACP1200's sorting performance is satisfactory. Copper and aluminum are almost completely separated, allowing for direct sale to downstream companies without secondary processing.”
Eric L.
Eric L.Plant Supervisor
“The equipment was not only reasonably priced, but also had low maintenance costs. Most importantly, it helped me make money. In just two months, I recouped the entire cost of the machine. I am very satisfied.”
Gutes Feedback1
Eduardo VProduction Director

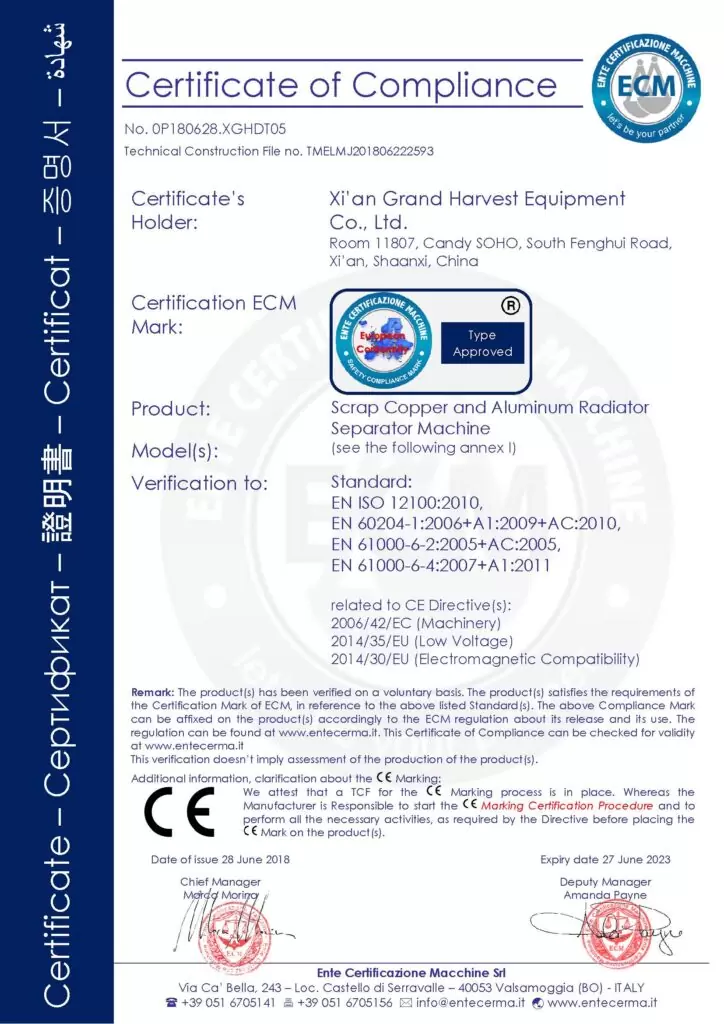

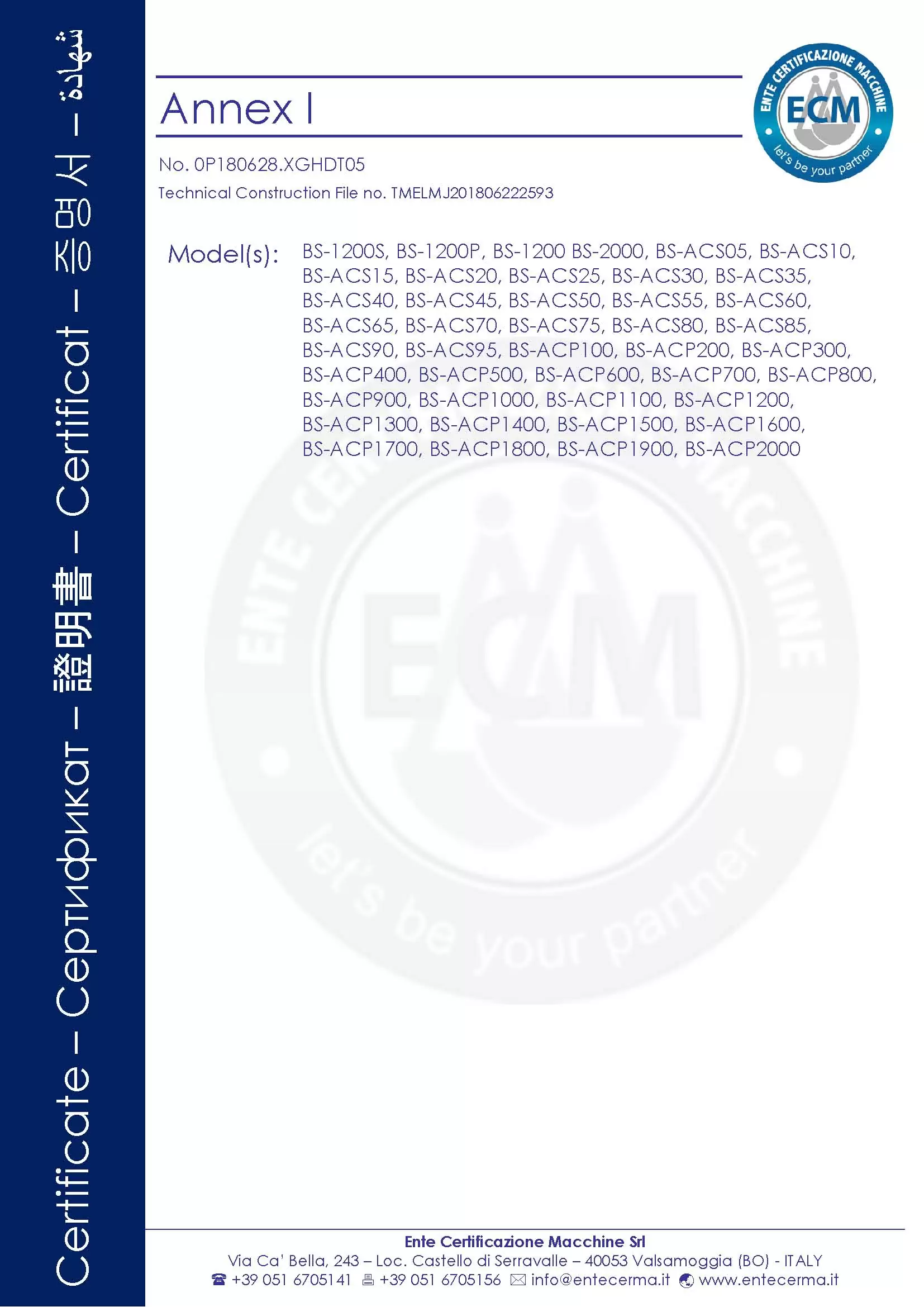

CE for aC radiator recycling Line

5T/H ac radiator recycling line BS-ACP1200
5T/H ac radiator recycling line BS-ACP1200

Häufig gestellte Fragen

The core difference lies in the pre-shredder and processing capacity. BS-ACP1200 uses a vertical pre-shredder with 5T/H processing capacity, while BS-ACP1000 uses a twin-shaft shredder with 2-3T/H processing capacity, just choose as your needs.

Our BS-ACP1200 can directly process radiators with L≤1000mm, W≤800mm, and H≤70mm.

Dear friend, there is a detailed manual instruction to guide you install, and we also provide professional on-site techinicians to help you till BS-ACP1200 works in good performance.

Do not worry, our 5T/H ac radiator recycling line totally meets various strict environment standard, besides a big dust collection machine, each part is also equipped with dust removal system, keeping a clean workshop.
