MS-D800 Vertical Double Shaft Shredder

Category
MS-D800 Vertical double shaft shredding machine for crushing metal from bsgh
bsgh granulator MS-D800 vertical double shaft shredder back side

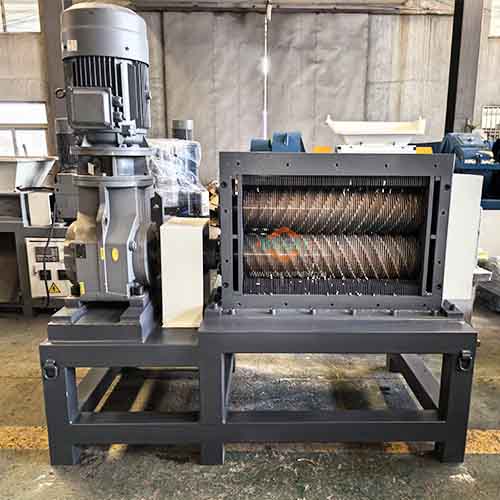

industrial BS-D800 vertical double shaft shredder machine from bsgh

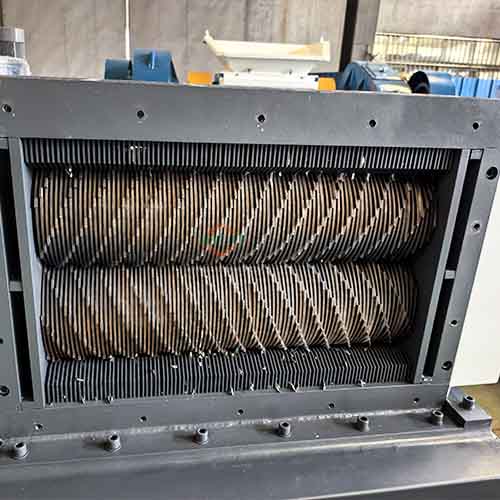

MS-D800 heavy duty Vertical double shaft shredder machine from bsgh granulator

MS-D800 Vertical Double Shaft Shredder

  • Special front-loading structure allows operators to feed materials directly at ground level, significantly reducing labor intensity and improving workplace safety
  • The MS-D800 is equipped with an intelligent auto-reverse function. When unshreddable or foreign objects are detected, the shafts automatically reverse to expel them, ensuring continuous operation with zero jamming and minimal downtime.
  • Heavy-Duty Cutting System
  1. Fixed blades are made of 45# medium carbon steel for better strength & toughness.
  2. The 7-tooth blades are made of high-wear-resistant 9CrSi steel, which undergoes heat treatment to achieve higher hardness.
  3. Spacer sleeves are made of 65Mn spring steel for superior elasticity & wear resistance.
  • The main spindle is manufactured from 42CrMo alloy structural steel, offering excellent strength, fatigue resistance, and long-term durability under high-torque working conditions..
  • Split PLC electrical cabinet can be set wherever you need, also has a digital display screen, easily inspect the data of each step.
Sofortangebot

products details

The MS-D800 Vertical Double-Shaft Shredder is designed with a heavy-duty reducer, delivering a low-speed, high-torque shredding principle that ensures powerful tearing force and stable operation. What truly sets the BSGH Vertical Shredding Machine apart is its innovative vertical structure and front-loading design. Materials can be fed directly from the front, eliminating the need for climbing platforms or heavy lifting equipment. This user-friendly design significantly improves safety, simplifies operation, and reduces labor costs.
Compact yet powerful, this vertical shredder is an ideal small-scale size reduction solution for processing large flat materials. It is widely used in recycling centers, warehouses, factories, and waste handling facilities where efficiency, safety, and ease of use matter most.

video description

Machine Model: MS-D800 Vertical Double Shaft Shredder

  • Power: 18.5KW
  • Machine Size: 2000*900*2000mm
  • Crushing Material: Cigarette packaging paper, paper rolls

As shown in the video, the paper roll holder combined with the conveyor belt ensures continuous and even feeding of cigarette packaging paper into the MS-D800 small vertical shredder, preventing material bridging or overload. Driven by a high-torque reducer, the double shafts rotate in opposite directions, while robust cutting blades rapidly tear the material into thin, uniform pieces. The entire feeding and shredding process remains smooth, stable, and jam-free, even during long-time operation.
You can also lay the electric cabinet in front of you, just press the button, then the whole automated system significantly achieves pre-crushing work, convenient for further recycling process, meanwhile decreases the labor intensity, providing you with a safe and efficient solution for shredding large quantities of paper waste.

MS-D800 Vertical Double Shaft Shredder

Our vertical Doppelwellenzerkleinerer has a robust structure, its bearing adopts Chinese reputed brand and double-row design, making MS-D800 withstand big crushing tasks such as cardboard, tire or large clothes materials with low maintenance. In addition, spacer sleeve, hexagonal shaft and blades all undergo quenching and tempering treatment, frame is welded tightly by square tubes, guaranteeing the vertical double shaft shredding machine durable and serve for longer time, really worth your investment.

ModellMS-D800 Vertical Double Shaft Shredder
Drive SystemElectric Motor + Gear Reducer
Motorleistung18,5 kW
KlingengrößeΦ250*6mm
Main ShaftΦ126
Stromspannung380V or Customized
Geschwindigkeit35r/min
Torque5100Nm
Chamber Size800*450*300mm
Maschinengröße2000*900*2000mm

Why Choose Vertical Double Shaft Shredder?

Im Vergleich zu common shredder machine, BSGH Granulator vertical double Shaft Shredder is famous in innovative vertical structure design; it’s not just a change in appearance, but a targeted solution for solving large, hard-to-feed material and safetly problem.

     1. Convenient Feeding

  • Common shredder machine: To feed materials into the high-positioned inlet, it usually requires a long conveyor belt or other support feeding equipment.
  • Vertical double-shaft shredder: The low feeding inlet enables a direct manual feeding or a small conveyor belt, eliminating the need for heavy equipment and making operation simple.

     2. High Safety

  • Common shredder machine: When processing heavy waste materials, there is a risk of falling objects due to high-altitude feeding, unsure about the worker safety.
  • Vertical double-shaft shredder: Ground-level operation, making material feeding more controllable, totally keeping laborer safety.

     3. Easier Maintenance

  • Common shredder machine: It is difficult to observe the internal condition of the machine during maintenance.
  • Vertical double-shaft shredder: Operator has a wider view and more maintenance space when replacing blades or clearing foreign objects, preserving an easier daily operation and maintenance.

raw material and Final product

Our vertical double shaft shredder can crush material such as cardboard, packing paper, used clothes, scrap cable wire, wood, waste plastic materials and lightweight metal etc. into even pieces. The easy feeding and fully automatic system makes MS-D800 particularly suitable for small and medium-sized factories with limited workshop height, also you can improve the processing capacity and obtain higher returns.

Kartonschachteln aus Altpapier
Plastikflasche
Altkleider aus Schredderrohstoff
Plastikeimer aus Schrott
Alte Pullover und Strickjacken aus Schredderrohstoff
plastic drum shredder machine from bsgh
measurements-and-weights-in-scrap-metal-600x450
Altreifen
Feature-Bild zum Recycling von Schrott und Metallabfällen
wood pallet with nails shredder machine
Schrottverarbeitung Schrott
final fragments of bsgh plastic drum shredder machine
gebrauchte Lederreste aus Schredderrohstoff

Verpackung und Lieferung

Once your vertical double shaft shredder finishes production, we first test it to ensure a superior performance, then carefully pack it with enclosed plastic film, finally, MS-D800 will be loaded into a 1*40″HQ, guarantee the safest transport to your sea port. Believe you will receive it in a perfect condition.

Bild der Verpackung von Metallschreddern
Shredderverpackung von bsgh

Great Comments from Our Global Clients

In view of the easy feeding and fully automatic characteristics, our MS-D800 vertical double shaft shredder has gained favor from global customers, they said it is the technical innovation based on their practical use, really appreciated.

US-Kunde Samuel
Samuel US-Kunde

“As a production manager, I'm most concerned about equipment reliability and employee safety. This vertical shredder operates quietly, has an anti-jamming reversal function, and employees can learn to use it in just half an hour of training, avoiding a lot of trouble.”

Spanien-Kunde Lucas
Lucas Spanien Kunde

“We are a small recycling facility with limited building height. The MS-D800 shredder is truly space-saving, and loading materials doesn't require a forklift, one person can operate it.”

Brasilien Kunde Joy
steve Brasilien Kunde

“This vertical double shaft shredder can handle cardboard and small plastic parts, the blades are simple to remove and replace, easy to operate. It has no problems after more than half a year of use, very reliable.”

Jetzt kostenloses Angebot anfordern!

Häufig gestellte Fragen

Available in both manual and automatic configurations. The conveyor belt option allows for automatic feeding, significantly improving efficiency.

Routine maintenance only requires regularly checking for blade wear and lubricating the bearings. We provide a detailed maintenance manual for your reference.

Yes, before production, we support to custom output size, you'd better to confirm before production; after production then can't be changed.

Yes, MS-D800 vertical double shaft shredder machine is adopt detachable design, making it easy to remove and replace parts such as blades and shafts.

Yes, the PLC cabinet is split and you can lay it wherever you want, with digital display screen, you can observe the data and easily control the entire shredder.
