solar panel aluminum frame removal machine
BSGH Granulator solar panel aluminum frame removal machine is worth your investment, because it stands out in:
- Engineered for All Solar Panel Types: Equipped with intelligent sensors and extended frame removal device, suitable for various sizes— from single to dual-glass panels.
- Zero Damage: Removes aluminum frames without scratching or harming the solar cells.
- Precision Pressing: Hydraulic pump pressing achieves up to 100% aluminum recovery.
Unique solar panel aluminum frame removal machine supplier from BSGH Granulator
When it comes to solar panel recycling, every second – and every component — counts. The BSGH Ganulator Frame Dismantling Machine is engineered to be your first and most important step toward efficient, high-value recycling. This advanced system automatically separates the aluminum frame from photovoltaic (PV) panels without damaging the glass or cells, keeping your materials clean, intact, and ready for resale or further processing. No more tedious manual labor, no more wasted value — just smooth, automated dismantling.
Whether you run a professional recycling facility or are expanding into solar waste recovery, the BSGH Ganulator gives you a faster return on investment and helps you stay ahead in the growing renewable energy market. Start your solar panel recycling process the smart way — with BSGH now.
Your trusted solar panel aluminum frame removal machine for sale

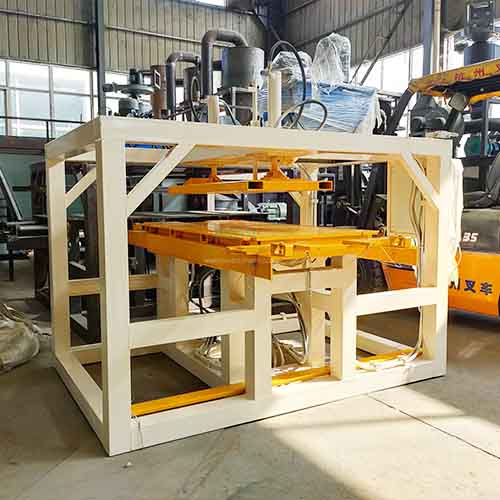

Building on years of proven expertise in solar panel recycling, we delivers two specialized frame disassembly machines — one for single-glass photovoltaic panels and another for dual-glass panels. Each model is precisely engineered to ensure safe, efficient, and high-accuracy removal of aluminum frames while keeping the glass and cells perfectly intact. Whether your operation focuses on high-volume industrial recycling or flexible processing of mixed panel types, our equipment helps modern recycling plants increase throughput, reduce labor, and achieve higher returns with minimal waste and maximum precision.
• Power: 4KW
• Length range of panel size: 1500-2550mm
• Width range of panel size: 750-1500mm
• Weight: 1120KG
• Number of hydraulic cylinders: 5 PCS
• Power: 4KW
• Length range of panel size: 2278mm-2465mm
• Width range of panel size: 1134mm-1300mm
• Weight: 1600KG
• Number of hydraulic cylinders: 6 PCS
Witness in Action: How to dismantle the solar panel frame
Our solar panel aluminum frame removal machine takes “manually loading + fully automatic frame removal” as its core logic. Through hydraulic control and a step-by-step pulling design, it can remove aluminum frames safely and accurately. The specific working steps are as follows:
Step 1: Manually place the scrap solar panel steadily on the working platform.
Step 2: Turn on the control lever and its hydraulic pressure plate automatically moves downwards then firmly clamps the surface of solar panel.
- First the machine’s front and rear pulling rods extend to separate the aluminum frames on two sides.
- Then the left and right pulling rods extend to completely remove the remaning aluminum frames.
Step 3: Once the aluminum frames are fully dismantled, just turn off the control lever and its hydraulic pressure plate will rise and all pulling rods automatically return to their initial positions.
Wählen Sie uns. Wir helfen Ihnen, mit halbem Aufwand das doppelte Ergebnis zu erzielen
solar panel aluminum frame dismantling machine Key features and advantages
Wide Compatibility
Our extended frame removal machine can process 1-2 layer glass solar panels with a width from 750 to 1500mm, length from 1500 to 2550mm, covering most photovoltaic panels on the market.
fast speed
Our solar panel aluminum frame removal machine can handle 2 pcs waste solar panels in just one minute, improving your overall production.
intelligent sensor
Our frame removal machine has a smart sensor, which can limit the position of hydraulic plate press and reset process.
Low Labor cost
Only needs 2 workers to operate the aluminum frame removing machine well, easy to operate.
customer case for solar panel aluminum frame dismantling machine
This is a test video shot at our factory for our French customer, who owns a solar panel recycling plant.
- Model: Solar Panel Aluminum Frame dismantling machine
- Customer from: France
- Ordering time: April 2025
- Power: 4kw
In March 2025, our French customer found us through our YouTube channel. After knowing his old frame removal machine was not only inefficient but also frequently damaged the glass and cells of the solar panels, we recommended our aluminum frame dismantling machine. As you can see, its precise force control enables to keep other components undamaged. Furthermore, it takes only 10-15 seconds to process a single panel and still maintains a stable performance during continuous operation.

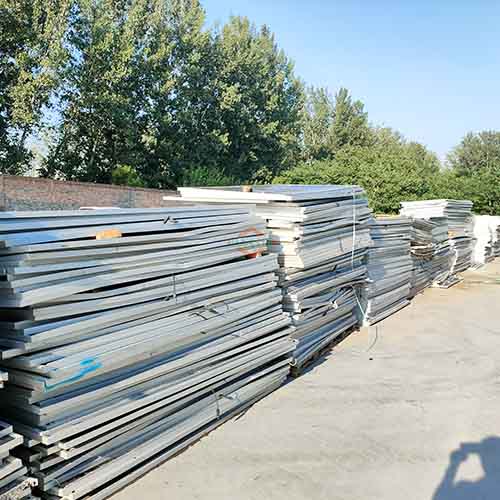

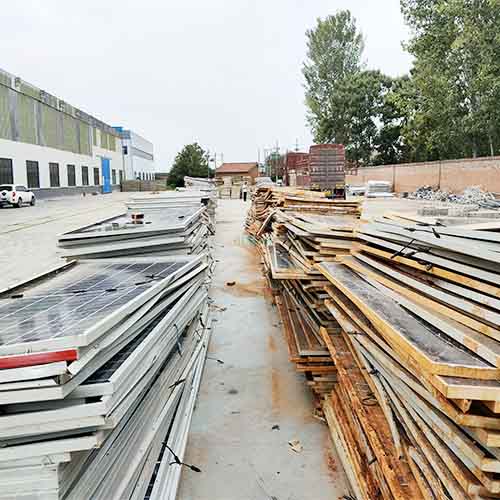

raw material and Final product

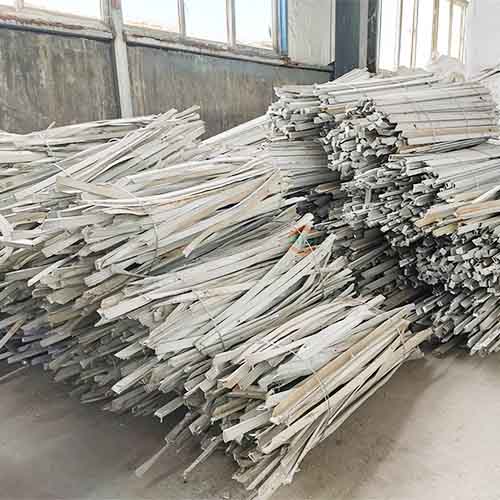

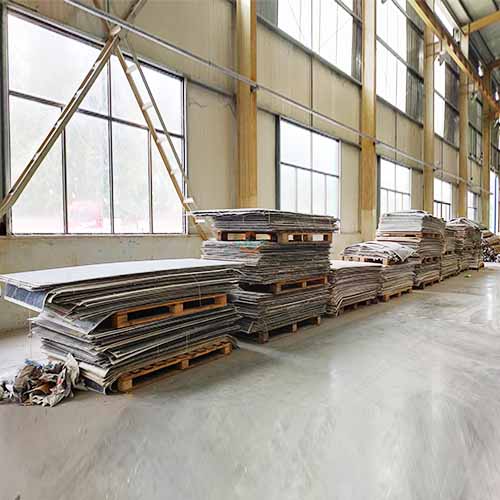

Our robust solar panel deframing machine is engineered to handle all types and sizes of end-of-life solar panels inside its processing range, meanwhile with two perfectly separated outputs: pure aluminum frames ready for immediate recycling, and intact panel cores—neatly prepared for the next critical stage of material separation.
Why our solar panel aluminum frame removal machine?
Our solar panel aluminum frame disassembly machine is a purpose-built solution for the first stage of solar panel recycling — removing aluminum frames and recovering valuable materials from end-of-life photovoltaic (PV) modules with maximum precision and efficiency.
- Heavy-Duty Design for Continuous Operation
Built with a robust mechanical structure and advanced automation, the system supports 24-hour stable operation and handles high-speed, high-volume processing. Its durable construction ensures a long service life with minimal maintenance requirements. - Hydraulic-Driven Performance
Powered by a reliable hydraulic pump system, the machine runs smoothly and quietly, maintaining consistent pressure and efficiency even under heavy workloads. - Reliable Service and Support
Every unit includes a one-year warranty and lifetime online technical support. Our dedicated service team provides fast response and expert assistance to keep your recycling operation running smoothly at all times.
solar panel aluminum frame dismantling machine Working video
Witness our PV panel aluminum frame dismantling machine in action from the video below. To see more detailed photos, specifications, or even a live demonstration, please do not hesitate to contact us. We’re happy to provide you with all the information you need.
Great Comments Shared by Our Global Clients
Here’s how our solar panel aluminum frame removal machine is helping recycling professionals worldwide work smarter and earn more.
This machine is a game-changer. It processes every panel type we feed it—no adjustments, no downtime. Sheer reliability.
The aluminum frames come out completely clean, which maximizes their resale value. The panel cores are perfectly intact, ready for the next step.
We’ve dramatically cut our labor costs. What used to take two workers significant time now is a one-person, one-minute operation.
