Mini BSC Motor Stator Cutting And Pulling Machine

Category

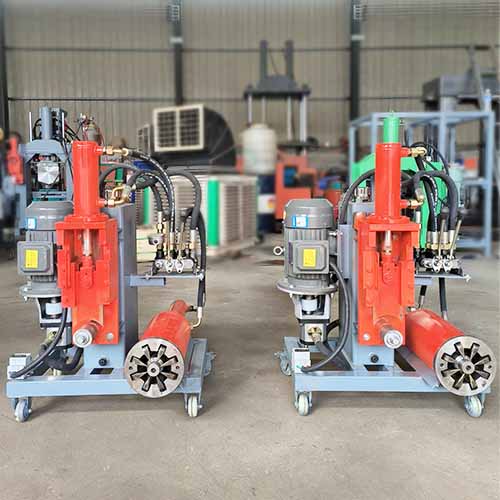

mini BSC motor stator cutting and pulilng machine for our USA customer

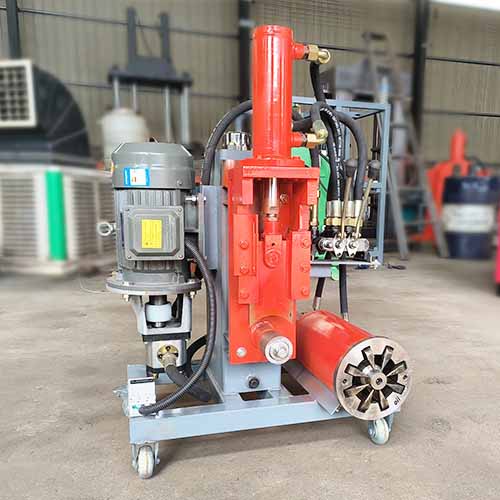

mini BSC motor stator cutting and pulling machine front side from bsgh granulator

Mini BSC Motor Stator Cutting And Pulling Machine

  • Our mini BSC Máquina de corte y tracción de estatores de motores is designed for the disassembly and recycling of small motors under 120mm (4.7 inches).
  • With its compact size, lightweight build, and high-quality wheels, our machine can be easily moved and positioned in any workshop or tight space.
  • Low price but high performance and durability, only USD2000, you will get stable profits for over 10 years.
  • Driven by hydraulic system, making it low noise, reliable.
cotización instantánea

products details

The Mini BSC motor stator cutting and pulling machine is a compact and efficient solution for recovering copper windings from small scrap motors. It’s designed for stators from household appliances and similar equipment. Despite its small size, Mini BSC still delivers strong cutting and pulling power, helping recyclers extract clean cobre quickly and with minimal effort. Easy to operate and built to last, it’s an ideal choice for workshops or recycling yards with limited budgets or smaller volumes of material.

video description

In April 2025, a USA customer purchased a Mini BSC máquina de reciclaje de motores del granulador BSGH.

  • Machine model: Mini BSC motor stator cutting and pulling machine
  • Customer from: America
  • Power: 3.0KW
  • Background: Our customer primarily handles household fan stators with a diameter of around 100mm,

After the machine finished production and before shipping, we tested it to ensure a good performance. As shown in the video, the cutting and pulling parts run smoothly. Shortly after he received the video, he was most impressed by the machine’s excellent recovery performance and paid the balance payment at once. Now he has got higher returns with our mini BSC for long operations as he expected. Our Mini BSC cutting and pulling machine proved to be the perfect fit for his operations.

Mini BSC motor stator cutting and pulling Machine parameters

Discover what makes the Mini BSC motor stator cutting and pulling machine stand out — the core specifications that drive its high-efficiency and stable performance.

Modelo Mini BSC
Potencia del motor3KW
Voltaje380V/220V
Peso150kg
Tamaño de la máquina660*730*950mm
Tamaño del embalaje830*830*900mm
SolicitudSmall motors below 1.5KW

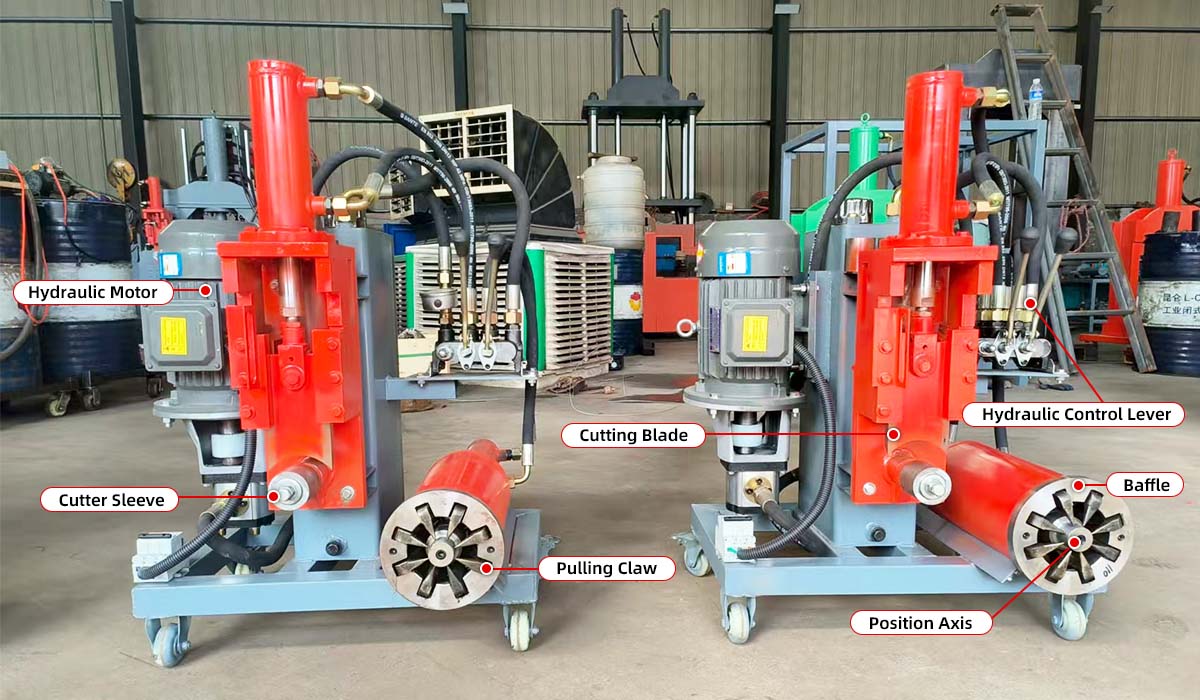

Mini BSC Estructura

Don’t let the size fool you—the Mini BSC motor stator cutting and pulling machine is a fully equipped, multi-functional unit that combines both cutting and pulling actions in one robust, compact machine. Engineered for precision and efficiency in mind, it delivers powerful performance wherever you need it.

Key Components & Their Roles:

  • Cutting Part: Features a durable Cutting Blade and Cutter Sleeve for clean, efficient material cutting.

  • Pulling Part: The Pulling Claw works seamlessly with the Baffle and Position Axis to securely extract materials.

  • Power & Control: Driven by a reliable Hydraulic Motor and easily operated via the Hydraulic Control Lever.

This intelligent integration of components allows the Mini BSC to perform multiple recycling tasks with ease and accuracy—all within a minimal footprint.

mini bsc Stator Cutting And Pulling Machine structure from BSGH granulator

How to operate mini bSCmotor stator cutting and pulling machine?

Our Mini BSC is designed for one-person operation. The lever-controlled workflow ensures a smooth, efficient, and safe recycling process from start to finish. Follow this four-step process to achieve precise cutting and pulling function:

  1. Turn on the main switch to start the hydraulic power unit.

  2. Gently push down the hydraulic control lever. The cutting blade will move downward to cleanly slice through the scrap stators. Once the cut is complete, the blade automatically retracts as the hydraulic rod returns to its original position.

  3. Press down the operating lever to start pulling. The 8-claws will open outward, securely grip the stator, and begin the extraction process.

  4. Lift the control lever to stop the claws. They will pull inward to extract the copper windings out, when the lever is back to its original position, the pulling operation stops and ready for the next operation.

Operating videos of mini bSC

mini bSC motor stator cutting and pulling Machine Precautions

If you want to use the Mini BSC motor stator cutting and pulling machine well, you need to know how to make it better to recycle different sizes of stators.

  • Select the appropriate cutter sleeve and baffle based on the stator size. A suitable cutter sleeve ensures clean and thorough cutting of the copper windings without damaging the stator.
  • Method to replace the cutter sleeve: First loosen the locking wire on the screw rod, then loosen and remove the screw rod, and finally remove the cutter sleeve.
  • Method to replace the baffle: Retract the claws through the hydraulic control lever, then loosen the two screws on the baffle, remove and replace it with an appropriate baffle, and then tighten the screws of the baffle.
  • The two running tracks of the cutting part and the claw tracks of the pulling part need to be lubricated. It is recommended to lubricate them at least twice a day.

mini BSC Experience Shared by Our Global Clients

We don’t just build machines — we build trust. Hear how the Mini BSC is helping professionals across the recycling and motor rebuilding industries work smarter, safer, and more efficiently.

Daniel W.
Daniel W.E-Waste Specialist
“We’ve integrated the Mini BSC into our daily process and the results speak for themselves: faster stator processing, minimal manual effort, and outstanding cutting precision. It’s exactly what our workshop needed.”
James Carter
James CarterRenewTech Recycling
“This machine offers the perfect balance of compact size and serious power. We’re able to recover copper from small stators quickly and cleanly — a total game-changer for small to medium operators.”
Marco P.
Marco P.Operations Manager
“Simple to set up, easy to use, and built to last. The Mini BSC has significantly reduced our processing time while improving operator safety.”

Secure Packaging & Global Delivery

 See our Mini BSC machines, securely packed and ready for their journey to customers worldwide.

  • Robust Packaging: Each machine is protected within a custom-built wooden crate, ensuring it arrives in perfect condition, ready for operation.

  • Efficient Shipping: We optimize logistics by shipping units directly in standard containers when possible, maximizing cost-efficiency for you.

  • Tailored to Your Needs: Have specific delivery or packaging requirements? We work with you to create a customized solution.

Embalaje de trituradora en el camión
embalaje de trituradora de bsgh

¡Obtenga una cotización gratis ahora!

Preguntas frecuentes

You'd better buy some extra claws and a cutter for standby; because claw is easily wearing parts, you can buy 20pcs at least with machine for long time use.

The default mini BSC motor stator cutting and pulling machine voltage is single-phase electricity, if you want three-phase electricity we can customized for you.

We operate our own scrapyard and testing facility to evaluate every recycling machine under real working conditions. All types have been field-tested and proven in the market for over 10 years, ensuring stable performance and long-term reliability.

Before delivery, each unit undergoes a final test run, and we provide a detailed test video to verify its operation and confirm that the machine performs perfectly before leaving our factory.

Do not worry, just contact with your one-to-one sales who is online for 24 hours, till solve your problems.
