Mini BST Used Electric Motor Recycling Machine For Sale

Category Scrap Motor Recycling

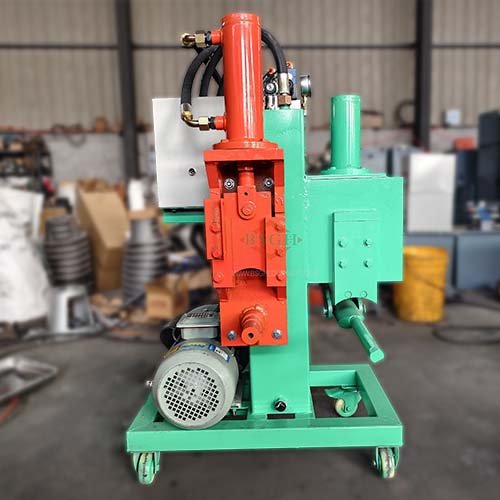

bsgh granulator Mini BST Electric Motor cutting and pulling Machine to separate copper windings from stator below 200mm

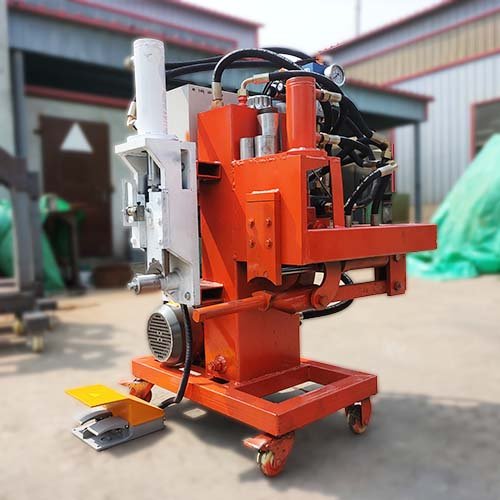

Mini BST Used Electric Motor Recycling Machine for sale to recycle 200mm stator from bsgh granulator

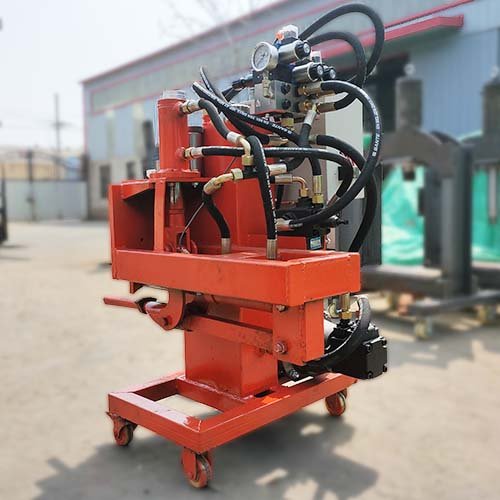

Mini BST hydraulic Motor dismantling Machine to extract copper windings from bsgh

Mini BST Used Electric Motor Recycling Machine For Sale

Built for extracting copper windings from most daily appliances and small car motor stators below 200mm.
Small footprint and low price, fit for individual home use, beginners, and budget-limited users.
Based on the cutter and unique push-out rod structure, the copper windings’ separate rate can reach 99.99%.
You can freely configure with our motor casing cutter or 8 jaw puller or 12 jaw or 16 jaw puller for multifunctional purposes.
The four universal wheel design makes our mini BST used electric motor recycling machine easy to move; you can process wherever you want.
Mini version of car generator motor recycling machine.
Voltage, color, motor and logo customization are available.

products details

Mini BST used electric motor recycling machine from BSGH Granulator is mainly designed for cutting and pulling copper windings from home appliance small motors under 10kw. Differ with the traditional motor dismantling machine, it adopts the push-out rod method to extract copper windings from top-out and intact, have no copper loss. This machine built with compact structure and low price, fit for household, limited budget users, small investment but high return, worth your purchase.

video description

Model: Mini BST Used Electric Motor Recycling Machine
Customer: Mr. Juan from Spain
Background: Juan just stepped in to collect lots of small domestic appliances motors, hoping to recover copper inside for more profits, so he was searching for an affordable and reliable motor recycling machine. Our mini BST caught his attention. After contacting for more machine details, he made the order in Dec. 2025.

Witness the testing video for Juan’s mini BST before shipping, first cut one end of the copper windings, then place the other end towards the rod, smooth push-and-pull till all copper windings out. Juan was impressed by the video, now he has received the machine and it works just as the video shown. Juan praised with words: “I’m amazed at how efficiently the motor recycling machine runs. It’s a great helper on my copper recovery journey. I’m so glad I bought it”. We believe he will extend the copper recycling industry soon.

Mini BST Used Electric Motor Recycling Machine for sale

Mini BST used electric motor recycling machine consists of the stator cutter and push-out rod puller, this model function is more flexible than motor stator dismantling machine mini BSC, have bigger processing range, you can check the details difference below:

Modelo	Used Electric motor recycling machine Mini BST	Mini BSC Motor Stator Dismantling Machine
Fuerza	3KW	3KW
Rango de procesamiento	60-200MM	Cutting range under 200MM, pulling range 40-120MM
Voltaje	Personalización de soporte	Personalización de soporte
Peso de la máquina	220KG	150KG
Tamaño de la máquina	*660730950MM*	700700950MM

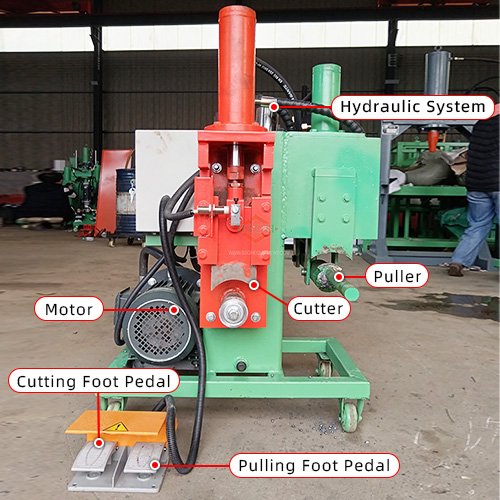

Structure and function

Durable used electric motor recycling machine mini BST has three main parts:

Drive parts: Motor + hydaulic system provides reliable power for cutting and pulling.
Function parts: 1 blade cutter and 1 push-out rod finish copper windings separation.
Control parts: Two foot pedals are easy to operate, letting hands free to cut and pull.

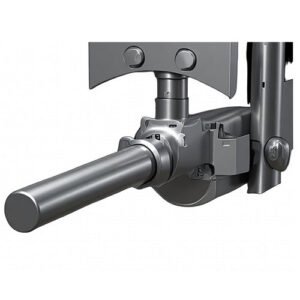

advanced and most popular pulling part(Push-out Rod)

Mini BST used electric motor recycling machine pulling part is engineered with advanced push-out rod, it has benefits as follows:

Push-out puller method can process bigger stator range.
Solid steel rods can not easily wear, no need to change for years, greatly saving your maintenance cost.

Meanwhile, it also requires simple operation skills to match the stator core with rod, ideal for processing heavily varnished motors and big motors below 10kw.

mini BST used electric motor recycling machine advantages

Compared with the similar products in the market, our hands-free mini BST used motor wrecker device takes up smaller footprint, easily place in a corner.
Most customers feedback the processing effiency is higher more than manual work, improving their profits much.
The pulling rod can serve for years, you only need to add oil and replace blade, lowering your maintenance cost.
Free accessories: 1/2 cutting sleeves, 2 fixing screws, and 2 sealing rings.
Support one-year warranty and 24/7 online service. Whenever you have questions, please seek us for help.

Notes

After a brief introduction to our mini BST used electric motor recycling machine, we will now emphasize some vital points regarding its use and maintenance.

Select an appropriate cutter sleeve: Suitable sleeve is smaller and closest to the inner diameter of the stator. If not suitable, it will cause copper windings cutting for more times or inaccurate cut even damage the stator.
Add 46# clean hydraulic oil in time: Please ensure oil level above more than four fifths of the oil tank. Only in this way can machines be used normally.
Machine’s real maximum pressure is pre-calibrated at the factory, if needs adjustment, please only adjust less than one-quarter of a turn every time, you can process in multiple small steps until the pressure is sufficient for your needs.

troubleshooting

Problem 1: If the hydraulic cylinder fails to operate smoothly (or does not function at all)
Cause: Insufficient hydraulic fluid.
Solution: Please add oil to the recommended operational level (four fifths of the oil tank).
Problem 2: Incomplete Cuts & Cutter Jamming
Cause: Lack of lubrication on the cutter guide rails.
Solution: Add lubrication oil to the cutting guide rails on time.
Critical Warning: Cutting without enough lubrication oil for long time will cause irreversible damage to the guide rails and blade, you can only replace entire cutter head part.
Problem 3: Unused Functions Can’t Work
Cause: If you continuously operate only one function, other functions may become non-functional.
Solution: At each start, you must tap and reset the control switches for all unused functions, guaranteeing the entire machine a stable performance.

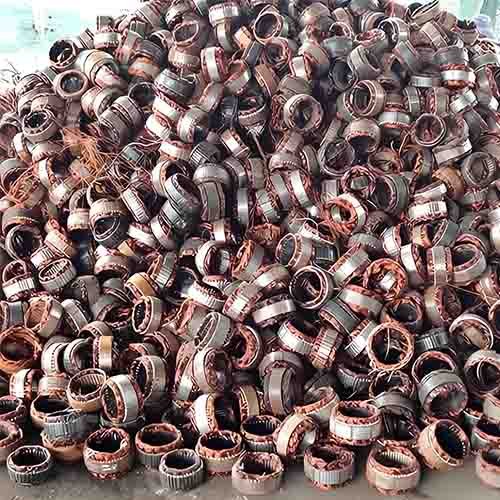

Raw materials & Final Products

Labor-saving mini BST used electric motor wrecking machine can separate different kinds of motor stators between 60-200mm, output with best quality and entire copper windings.

Packing and shipping

If you purchase our used electric motor stator recycling machine mini BST, it will be covered with moisture-proof protective film. After our machine will be packed in wooden box to protect it better ensure that you will receive the equipment in perfect condition.

Comentarios de clientes

Our mini BST used electric motor recycling machine is one of the best-selling products overseas and domestic market. It has received lots of excellent reviews. Here are some examples.

Nuestro cliente estadounidense

Very nice products! It works very well. After I buy your BST, I don’t need to worry about annoying scrap motor stators. It can fully separate the copper wire.

Our German customer

Your BST products is mini like you say. It takes up smaller space so that I can maximize the use of limited space. Very nice shopping experience!

Nuestro cliente de Irlanda

I’m so glad that I chose your BST motor recycling machine ultimately. It can process these scrap motors easily and works very well. Your Staffs are also friendly. I will recommend you to my friends!

Preguntas frecuentes

What spare parts should I buy with mini BST used electric motor recycling machine?

You just need to buy some extra blades for spare use, very low maintenance cost.

Since your mini BST and mini BSC used electric motor recycling machine are similar to cut and pull copper windings, which one should I choose?

Yes, the biggest difference lies in the pulling part:

Mini BST adopts push-out rod pulling method, it can handle scrap stator below 200mm, also this machine can process car alternators(for small quantity, if you have big quantity, you need to use specialized car alternator recycling machine).
Mini BSC uses 8-jaw pulling method which is much easier to operate, just clamp then pull, fast and efficient, but jaws needs to replace regularly, and can only pull stator below 120mm.

So each has its advantages, just choose as your practical needs.

Can your mini BST used electric motor recycling machine handle compressor stator?

Yes, our mini BST can separate copper windings from compressor stator below 200mm, but first you need to remove the compressor housing.

What can I do if I can’t cut copper windings completely when using your mini BST used electric motor recycling device?

You can check oil level to meet normal use and replace blades if it's dull or crack.
