Powerful 460 Hydraulic Excavator Metal Shear

460 Excavator Metal Shear

Category Hydraulische Alligatorschere

middle size excavator hydraulic shear 460mm for cutting steel scrap in bsgh

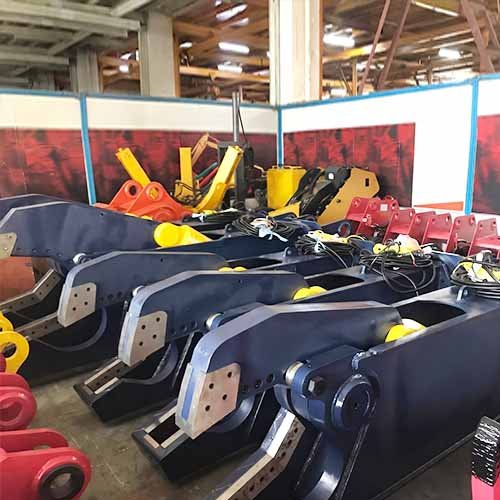

heavy-duty excavator hydraulic shear main picture from bsgh granulator

best hydraulic metal shear for boom-mounted excator in bsgh

bsgh hydraulic cutting machine installed for stick-mounted excavator

460 Excavator Metal Shear

Perfectly fit for 20-25 ton excavators (Stick-Mounted/2nd Member) or 10-25 ton excavators (Boom-Mounted/1st Member).
360-degree rotation allows for accurate position and targeted shear from any angle, no damage to your excavator arm.
Gegenüber 260 excavator metal shear, 460 model can cut through tougher structural steel, thick I-beams, and complex scrap profiles. If want larger ones, just click excavator hydraulic shear for sale.
8 blades made of H13, engineered for maximum resistance to wear and cracking. 6 pcs of 4-way reversible blades can rotate the cutting edge 4 times, drastically lowering your replacement costs.
Mobile, bolt-on upper blade seat design guarantees rapid on-site maintenance and minimizes downtime.
The lower knife holder features a specialized curved, sloped design that firmly clamps irregular scrap into the shear throat, preventing slippage.

products details

460 excavator metal shear manufactured by BSGH Granulator is a flagship demolition attachment for excavators cutting industrial steel scrap. Powered by an advanced hydraulic system and designed with 480mm jaw opening, it generates up to 360 tons shearing force to powerfully slice through solid bars, thick I-beams, and heavy steel plates. Built for maximum uptime, this shear has a mobile upper blade seat for rapid maintenance, along with an optimized anti-slip lower jaw that can securely lock materials during every cut. Also equipped with 360-degree continuous rotation system, operators can precisely grip scrap from any angle—greatly increasing daily processing capacity while protecting your excavator from damaging, thereby receiving lots of inquiries from on-site demolition companies as expected.

video description

Client: Lucas, Scrapyard Owner (Brazil)
Equipment: 460 Excavator Hydraulic Shear
Date: July 2025
Challenge: Lucas’s yard was messed by piles of heavy industrial scrap steel. Without prior planning, the tangled materials made manual sorting and processing dangerous and slow, leading to delays in selling and causing logistical problems.
Solution: Lucas integrated our 460 excavator hydraulic shear into his daily operations to handle his scrap.
Results: Thanks to the shear’s agile 360-degree rotation and strong cutting force, a single operator can now seamlessly sort, grip, and cut the tangled scrap directly, only need to sit in the excavator cabin. The machine requires no manual sorting, significantly reducing labor costs.

medium 460 excavator metal shear for sale

460 excavator metal shear has stronger cutting force as well as wider jaw opening and superior throat cutting depth. Follwing is the performance data for your reference to make the smartest investment for your scrapyard’s demands.

Modell	260 Excavator Metal Shear	460 Excavator Metal Shear
Max Jaw Opening (A)	260mm	480 mm
Jaw Depth (P)	252mm	485mm
Cylinder Oil Flow	72 – 102L/min	102-201L/min
Cylinder Operating Pressure	26MPa	32MPa
Rotary Motor Flow	19 – 22L/min	19-22L/min
Rotary Motor Pressure	11.6MPa	11.6Mpa
Max Pivot / Main Shaft Force	300Tons	799Tons
Tip Cutting Force	40Tons	90Tons
Middle Cutting Force	80Tons	165Tons
Throat Cutting Force	160Tons	360Tons
Stick-Mounted	6-10Tons	20-25Tons
Boom-Mounted	3-10Tons	10-25Tons
Tail Pivot Pin Diameter	45-80mm	80-90mm
Tail Bracket Width	160-225mm	260-400mm
Mounting Pin Center Distance	265mm	460mm
Machine Dimensions	1880556448mm	*2950650930mm*
Maschinengewicht	580kg	1680kg

heavy-Duty 460 excavator metal shear Working steps

A standard workflow not only maximizes your daily cutting efficiency but significantly extends the metal shear’s lifespan. Please adhere to the following working process when using high quality 460 excavator metal shear machine:
Step 1: Pre-Operation Inspection

Inspect the entire hydraulic system for fluid leaks and verify the operating pressure is within the optimal range.
Ensure blades are sharp, no cracking, and securely seated.

Step 2: Shearing Process

Adjust excavator boom and stick to precisely position the shear’s throat with waste material.
Utilize shear’s lower jaw to firmly grip the steel bars, I-beams, or plates. Ensure the scrap is tightly locked in place to prevent dangerous slipping during cutting.
Start the main cylinder. Driven by hydraulic pressure, the upper blade forcefully drives down, shearing through steel scrap.
Retract the cylinder to open the blades and release the processed scrap.
Return the shear to original position, ready to rapidly start the next cycle.

industrial excavator metal shear application

The 460 Excavator Metal Shear is our best-selling model among excavator attachments, recognized for its reasonable price and heavy-duty cutting performance. It is engineered for high-efficiency metal processing with the following specifications and guidelines:

Key Performance & Capabilities

Superior Opening: Features an opening width up to 480mm, allowing for a wider processing range.
Heavy-Duty Blades: Equipped with blades up to 14mm in thickness, capable of shearing:
Round Bar: Up to 50mm.
I-Beam: Below 16x500x200
Steel Pipe: From 5×150 up to 30x150mm
Angle/Triangle Steel: Below 8x100x100mm

Operational Constraints (Materials to Avoid)

To ensure equipment longevity and safety, please note that the following materials cannot be handled:
Materials containing alloy materials; Spring steel, rivets, and welded joints; Automobile drive shafts; Tough steel and any steel exceeding the specified size range.

Rohstoffe (Stahlschrottstangen) der Alligator-Schermaschine AS-1000 (100T) von BSGH

Rohstoffe (Schrottstahlplatten) der hydraulischen Alligatorschere von BSGH01

Rohstoffe (Stahlschrott) der AS-1000 (100T) Alligator-Schermaschine von BSGH

Rohstoffe (Schrottstahlplatten) der hydraulischen Alligatorschere von BSGH03

Rohstoffe (Schrottstahlplatten) der hydraulischen Alligatorschere von BSGH02

Packing and shipping

To ensure your excavator metal shear reaches you in perfect condition, we apply anti-rust oil and a protective plastic film to seal out moisture before securing it in a heavy-duty wooden crate. Partnering with experienced logistics experts, we guarantee a safe, moisture-proof, and professional delivery of your equipment worldwide.

Kundenfeedback

As our best-selling heavy-duty excavator metal shear, 460 model has earned the absolute trust of recycling professionals worldwide. Explore the real-world testimonials below to see how its cutting force and unmatched reliability bring changes to scrapyards across the globe.

Rated 5 out of 5

“As soon as this 460 hydraulic shear arrived, we took it straight to the job site, where it ran continuously for 10 days without a hitch. Its performance was incredibly stable. Whether cutting I-beams or thick-walled pipes, it could cut them at one time. ”

Rated 5 out of 5

“Your 460 hydraulic shear features powerful biting force, capable of processing a wide variety of irregularly shaped scrap materials. The packaging and delivery were very professional, with no damage. We could start working immediately after connecting the pipes.”

Rated 5 out of 5

“The rotating device of your 460 hydraulic shear is very stable, and the rotation driven by the hydraulic motor is very smooth, without any jerky or stuttering feeling. Since we started using it, we haven’t had to constantly readjust the cutting angle, which has significantly saved on operating time!”

Häufig gestellte Fragen

What should I do if 460 excavator metal shear blade becomes dull? Is it easy to replace?

To maximize durability, our excavator metal shear blades are designed to be fully reversible. Once one cutting edge becomes dull, simply flip the blade to utilize a fresh edge for an extended service life. Replacement is fast and user-friendly, requiring only the removal of high-strength securing bolts, ensuring you get back to work quickly without the need for complex tools.

Do I need to assemble 460 excavator metal shear myself after receiving it?

No. Once you receive it, just simply install it to your excavator and ready for use. Any problem, just contact us anytime.

What routine maintenance does 460 excavator metal shear require?

To ensure peak performance and long-term durability of your 460 excavator metal shear, follow these essential maintenance practices:

Regular Lubrication: Apply high-quality lubricating grease to all pivot points and moving parts daily to reduce friction and wear.
Bolt Inspection: Periodically check and retighten all high-strength bolts to ensure the structural integrity of the shear during heavy-duty operation.
Hydraulic System Care: Keep hydraulic oil clean and free of contaminants to protect the cylinder and extend the service life of the hydraulic seals.
Blade Maintenance: Regularly inspect blade sharpness and clearance to maintain clean cuts and prevent unnecessary strain on the excavator's hydraulic system.
