best performance hydraulic gantry shear for metal cutting

Hydraulic Gantry Shears — Engineered for heavy-duty industrial metal processing, these machines deliver precise and consistent cutting across a wide range of materials. With both automatic and remote operation modes, they handle large-scale tasks with ease. Built for strength and reliability, they are the ideal choice for scrap recycling, steel fabrication, and other demanding applications.

Granulador BSGH hydraulic gantry shear stands out for its robust design and intelligent engineering, tailored to meet high-volume metal processing. Crafted with heavy-duty frames, these machines deliver an exceptional stability even when handling thick or irregular materials—from bulky scrap steel to reinforced bars.
Designed for versatility, the heavy-duty shearing machine adapts to diverse workflows with intuitive control. Whether in scrap yards, steel mills, or recycling facilities, it balances power with practicality, minimizing downtime and maximizing throughput for industrial-scale operations.

High-torque hydraulic gantry shears for sale

When your operation demands uncompromising power and efficiency for reducing the sizes of scrap metal, our heavy-torque hydraulic gantry shear is an ideal solution. Engineered with immense hydraulic force, it effortlessly slices through the toughest materials, boosting your productivity and profitability.
Listed below are our most popular models in Europe and North America. If you have any needs, you can contact us at any time.

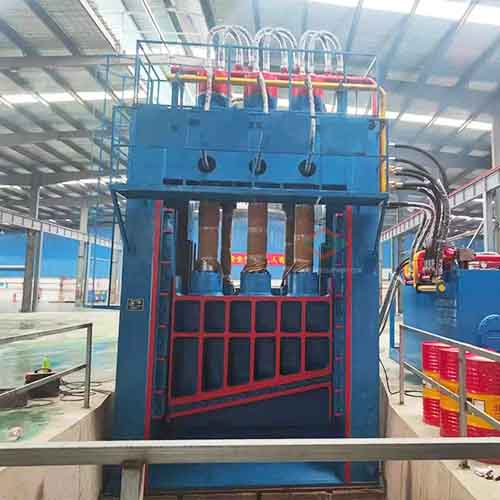

BS91-400 heavy torque gantry shear

mS-400 hydraulic gantry shear

 Maximum shear force: 4000KN
Power: 56.47KW
Material box size: 6000x1300x500mm
Maximum pressure: 25MPa
Shear Angle: 10°
Cutting times per minute: 2.5-3.5

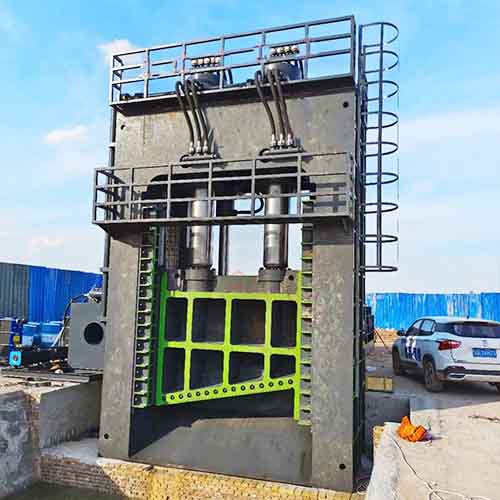

MS-630 bsgh gantry shearing machine

MS-630 hydraulic gantry shear

Maximum shear force: 6300KN
Power: 135KW
Material box size: 8000X1800X900mm
Maximum pressure: 22Mpa
Shear Angle: 9-12°
Cutting times per minute: 2-3

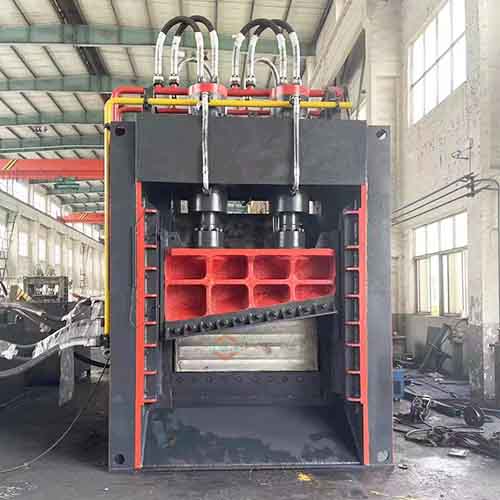

bsgh MS-800 gantry shearing machine

MS-800 hydraulic gantry shear

Maximum shear force: 8000KN
Power: 225KW
Material box size: 8000X2000X900mm
Maximum pressure: 22Mpa
Shear Angle: 9-12°
Cutting times per minute: 2-3

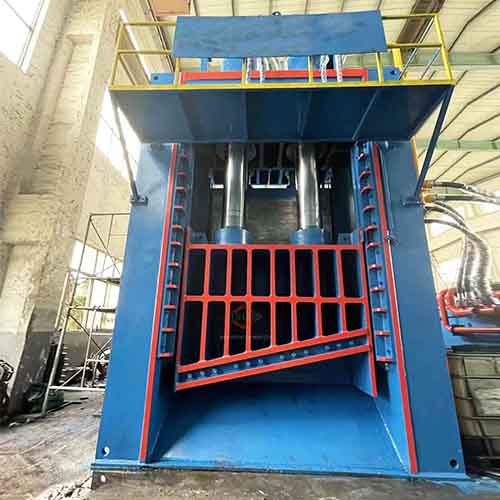

MS-1000 hydraulic gantry shear

Maximum shear force: 10000KN
Power: 280KW
Material box size: 8000X2000X900mm
Maximum pressure: 22Mpa
Shear Angle: 9-12°
Cutting times per minute: 2-3

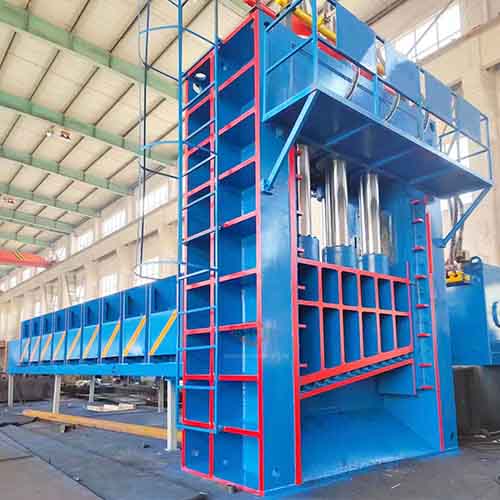

MS-1250 gantry shear from bsgh

MS-1250 hydraulic gantry shear

Maximum shear force: 12600KN
Power: 315KW
Material box size: 8000X2000X1000mm
Maximum pressure: 22Mpa
Shear Angle: 9-12°
Cutting times per minute: 2-3

Hydraulic Gantry Shear: Top 2 Features That Matter Most

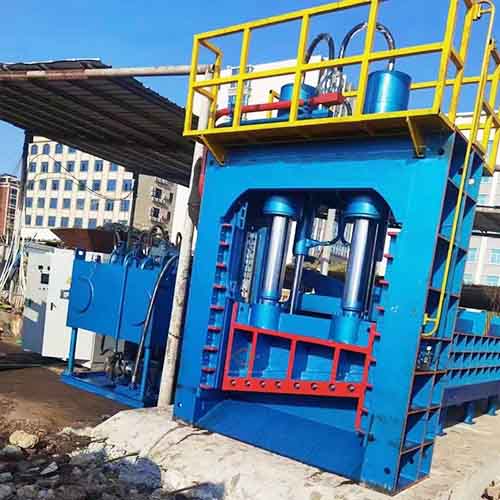

gantry shear heavy cutting force

Shearing Force

This is the most fundamental and core performance metric of a gantry shear that directly determines the material, thickness, and width of scraps it can handle.

Can you tell me your XX scrap metal maximum width in meters? Can this shear fit in?” “Can it cut whole sheets of steel?”

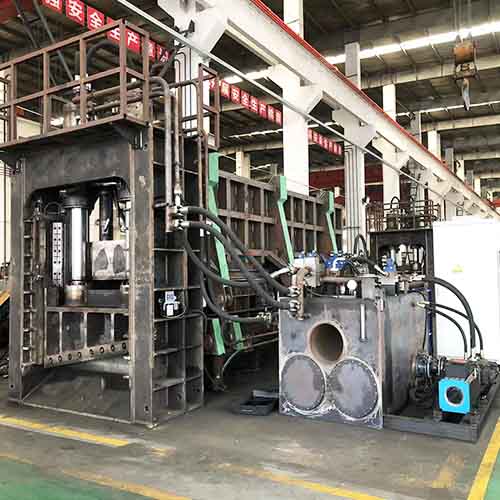

motor power of heavy-duty gantry shear

Poder

This directly impacts the shear’s force and operating energy consumption. Power needs to be balanced with shear force, stroke rate, and other factors. You are concerned about electricity costs and whether on-site power supply conditions are met. “Can this gantry shear cut my XX mm thick XX material, how many power should i choose?”

Advantages of our scrap metal gantry shear machine

Outstanding Cutting Power

BSGH manufatured gantry shears are designed for industrial-scale operations, delivering a maximum cutting force of 12,600 kN with maximum cutting width 2000mm, suitable for processing thick and dense metal materials.

High-Efficiency Operation

Designed for continuous use, it maintains fast cycle times with 2–3 cuts per minute to maximize throughput.

Construção durável

The frame is welded entirely from high-strength steel and has strong deformation resistance, withstanding harsh industrial applications and minimize downtime. Its blades are made of high-strength alloy steel, further reducing maintenance time and costs.

Flexible Operation

Our hydraulic gantry shear supports both automatic cycle operation and remote control mode, enabling operators to switch between them flexibly based on production needs.

Robust Hydraulic System

The high-quality hydraulic system with 2000mm maximum pressing length offers smooth hydraulic oil circulation and uniform, stable pressure output, meanwhile, it ensures a consistent performance even during extended operation or under extreme loads.

Contact Us Today for Your Best Quote

We offer a full range of gantry shear models to meet your specific needs. Whether you’re processing rebar, round steel, I-beams, or H-beams, Granulador BSGH has the perfect machine for the job. Simply share details like your raw materials and desired output, and our team will create the most cost-effective recycling solution tailored for you.

How does our gantry shear work?

This video shows our MS-800 hydraulic gantry shear machine in action. You can see it effortlessly shearing through tough steel.
During operation, the pushing part pushes the material into the shearing area, while a pressing mechanism secures the material to prevent it from shifting. Then, the blade, driven by a hydraulic cylinder, moves downward, shearing the steel. The entire process is controlled by a PLC system, ensuring efficient and stable shearing, creating a smooth flow from feeding to unloading.

customer case

In May 2024, a 40-year-old factory in Germany contacted us. They process a large amount of scrap but their aging shears were hindering growth, limiting daily output to a maximum of 300 tons and resulting in a significant backlog of scrap, so they needed a powerful cutting machine to solve the problem.
After thoroughly understanding their needs, we recommendeded our MS-800 hydraulic gantry shear. Its shearing force up to 800 tons enables to cut heavy steel plate easily as well as its fully automatic PLC-controlled cycle. After discussing the machine’s details, we quickly reached a partnership agreement.
Three months later, the factory reported a 110% increase in production, with the new equipment enabling long, continuous runs with zero unplanned downtime. The automated feeding system eliminated 90% of blockages, and intelligent power management reduced electricity costs by 28%. Most importantly, their profits increased significantly, so that they said with a sense of satisfaction: “This scrap metal shear has perfectly solved our problems. It has not only reduced our operating costs and increased our profits, but  also helped us get rid of the scrap that was previously piling up in our factory. Now, we have time to collect more raw materials to make more profit. It is definitely a powerful machine.”

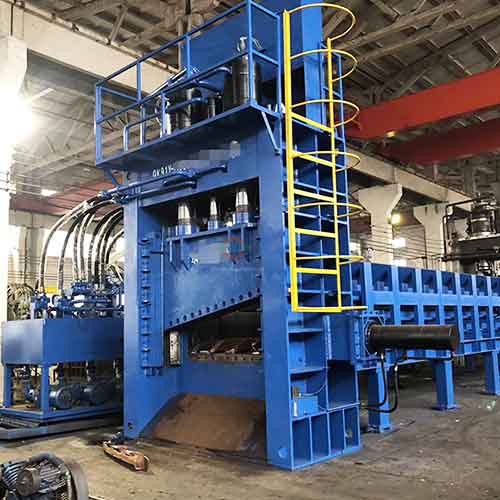

customize gantry shear from bsgh for you
buy your hydraulic gantry shear machine now
