Fornecedor de soluções completas de reciclagem de sucata de cobre para sua máquina de reciclagem de sucata de fio de cobre!

Logotipo do fabricante BSGHGranulator
Menu principal

Your reliable recycling machine supplier

High Efficiency Motor Pulley Puller Machine for Sale

Orçamento Gratuito

Motor Pulley Puller Machine

The motor pulley puller machine is mainly designed to make it easier to disassemble the motor, and you can reuse or sell the pulled pulleys directly. In addition, it can also remove the bearings on the motor.

This machine greatly improves work efficiency and convenience through its design features and functions. It can easily pull out the pulleys of motors, thus saving a lot of time and labor costs. It is also designed with safety and efficiency in mind, ensuring that it is both fast and safe during operation.

Saber mais

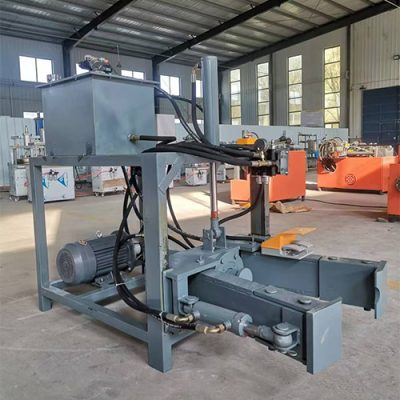

1electric motor pulley removal machine 60-2

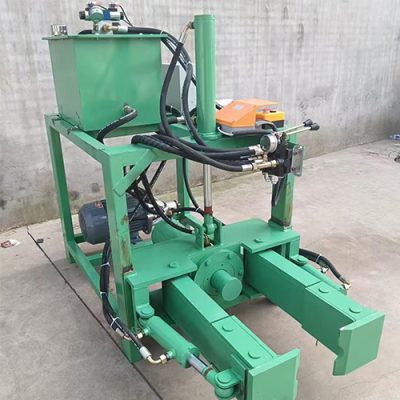

1electric motor pulley removal machine 100-1

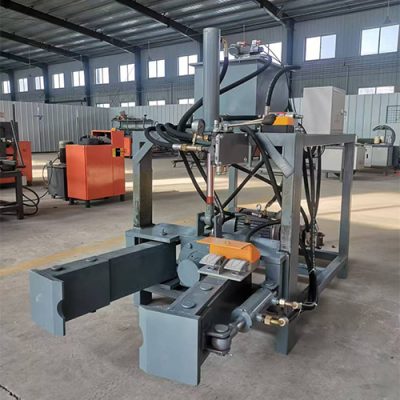

1electric motor pulley removal machine 60-1

Working Process Of Pulley Puller Machine

checking process of BSGH machine
Primeiro passo

Fix the motor on a suitable workbench and ensure that it is stable and immovable for subsequent operations.

soldagem de máquina semi-acabada
Segundo passo

According to the specifications of the motor, adjust the size and position of the motor pulley puller machine to ensure that the chuck of the machine can accurately clamp the pulley.

processo de produção de máquina
Terceiro passo

When the chuck clamps the pulley, the iron rod is placed between the center bearing of the motor and the head, and the hydraulic control lever is used to adjust the forward movement of the head.

Machine Welding
Quarto passo

The head pushes the iron rod outward to press the center bearing, then you can remove the pulley from the motor.

Estrutura da máquina

The structure of the motor pulley puller machine is mainly includes the following parts: oil tank, machine frame, hydraulic system, oil cylinder, foot pedal, hydraulic control level, machine head, machine chunk, hydraulic arm

The following video will show you how the various parts of the motor pulley puller machine work

Function of Components

The following shows the functions of each component, which works together to enable the motor pulley puller machine to effectively pull motor pulleys of various sizes.

The hydraulic system includes oil pumps, oil cylinders, oil pipes and other parts, and the pulley can be pulled out by controlling the flow of hydraulic oil.

There are two hydraulic control levers. One controls the forward and backward movement of the head, and the other controls the rise and fall of the hydraulic arm.

The hydraulic arm can control the tightness, and can be adjusted up and down to control the height, thus meeting the disassembly needs of motor pulleys and bearings of different sizes.

The function of head is used to push out the pulley on the motor and usually works in conjunction with a iron rod

It is to fix the pulley, so that it can be removed more smoothly.

It controls the opening and closing of the hydraulic arm.

Parâmetros técnicos

Parâmetros

Modelo

60 Motor Pulley Puller

100 Motor Pulley Puller

Tamanho

L1760*W850*H1500 MM

L1850*W880*H1540 MM

Volume

2.2m3

2.5m3

Peso

460kg

520kg

Tensão

380 V / 50 Hz

Poder

5,5 kW

Motor Speed

1400r/min

Rated Pressure

20MPA

Chuck Entrance Size(Max)

90cm

obtenha o melhor preço hoje mesmo.

BSGH Granulator is committed to providing affordable pricing for our high-efficiency motor pulley recycling solutions. You may get the most up-to-date pricing information and any special offers by contacting us.

Advantages of Motor Pulley Puller Machine

  • Hydraulic power

    Hydraulic arm, hydraulic control lever and other hydraulic devices are equipped in electric motor pulley removal machine, which allows the machine to quickly and accurately remove the pulleys. Furthermore, the use of hydraulic power makes removal work safe and reliable, and also makes the operation of the machine easier.

  • Excellent performance

    Our motor pulley puller machine uses a powerful standard pure copper core motor that meets national standards. The machine is not easy to heat up or deform during operation, and it runs more stably and lasts longer. In addition, the pure copper motor has better insulation performance and stronger anti-oxidation ability, so it make the machine have a longer service life.

  • High working efficiency

    The motor pulley puller machine can easily pull out the pulleys of motors of different sizes, greatly improving work efficiency and convenience. The design of this machine allows the pulleys of even large motors to be pulled out effortlessly, thereby significantly reducing labor and time costs and improving work efficiency. In addition, the entire machine body is made of cast iron, which has good casting performance and makes the machine more durable.

Precautions and Daily Maintenance

Before working, you should check the electrical box of the machine and be careful not to get damp or water in it, which may cause safety hazards.

Check whether there are flammable or explosive items around the motor pulley puller machine to avoid dangerous accidents.

Check the power supply and electric wires, and replace them in time if they are damaged; check the oil pipes for oil leakage to ensure safe and normal use.

Pay attention to operating safety, arrange suitable operators and wear appropriate work clothes before operating.

Check the lubrication of the oil cylinder regularly and lubricate both sides of the lifting cylinder with grease regularly.

Possible Problems and Solutions

When the cylinder does not work smoothly (or does not work), please first check whether enough hydraulic oil has been added.

When the oil cylinder cannot work normally (or has no pressure), please use a thin, hard object less than 4 mm to poke the metal dots at both ends of the solenoid valve back and forth in the shutdown state. Only after manually operating to make the oil circuit unblocked can it work normally.

When you use only one function for a long time and do not use other functions, you should also turn on the unused function switch once and reset it after each startup, and then operate the function normally. Otherwise, the function that has not been used for a long time will change, which will affect the operation of the whole machine.

Contate-nos

O granulador BSGH has been committed to manufacturing various recycling machines. We constantly develop new machines and improve machine manufacturing technology to meet changing market needs. We have more than 25-year manufacturing and sales experience, allowing us to provide you with professional services.

Furthermore, to enhance our service offerings, we can deliver specialized support to global customers through a dedicated team that includes QA specialists, QC personnel, product engineers, technical experts, and more. Our aim is to provide customers with high-tech and high-quality products that help customers reduce costs and optimize labor resources.

If you have any needs, please contact us, we are always ready to serve you.

Contate-nos
Customize Your Motor Pulley Puller Machine
Faça uma oferta

Vamos nos contar sobre suas necessidades de máquinas de reciclagem de motores

Share us your electric motor recycling machine needs. We’ll customise processing solutions to boost recycling efficiency and performance.
