BS-AC90 Heavy Duty Cable Stripping Machine

Category Abisoliermaschine

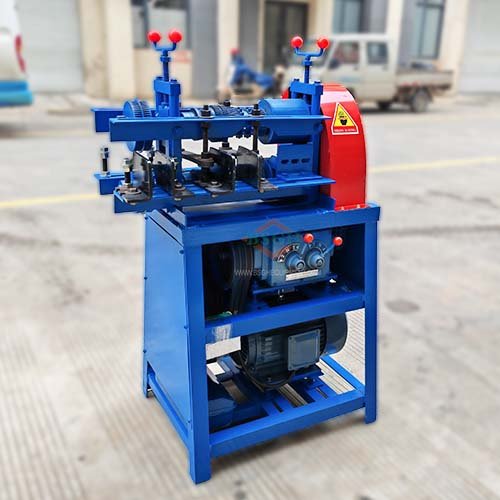

heavy duty cable stripping machine BS-AC90 for aluminum wire under 98mm from bsgh granulator supplier

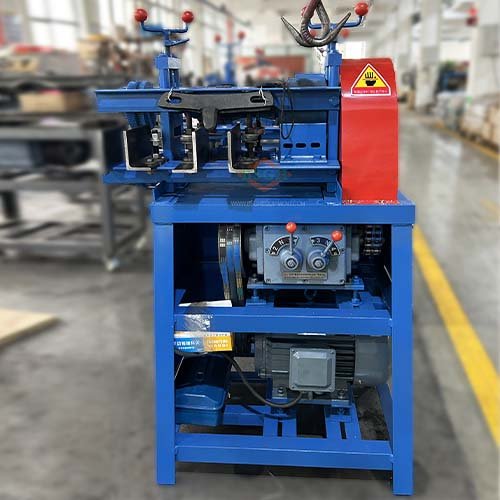

industrial cable stripping machine BS-AC90 for armoured cable from bsgh manufacturer

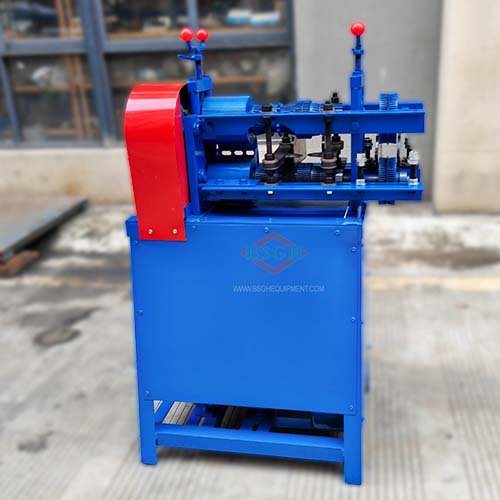

newly development wire stripper with transverse blade to separate copper core from acsr cable

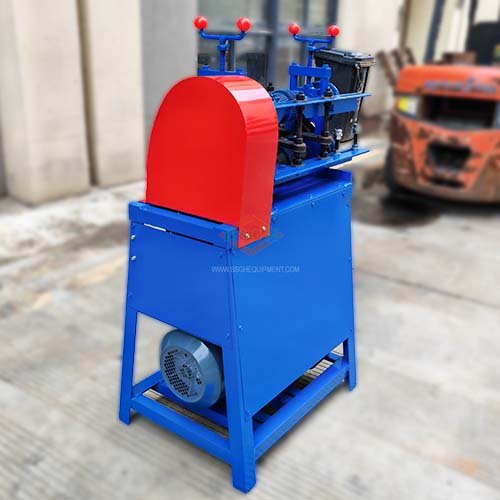

specilized tough cable under 98mm peeling machine with cross cutting blade

BS-AC90 Heavy Duty Cable Stripping Machine

Processing scrap cable between 2 mm to 98 mm in diameter.
High-performance gearbox provides adjustable speed and high torque for stripping large-capacity cables.
Roller + round blade + crossing cutter, adaptable for various cables including copper/aluminum cable, armored cable, rubber cable, ACSR, and high-density/voltage cables.
Compared to circular blades, cross-cut blades are more robust and durable, have a longer service life, and are easier to replace, which significantly reduces time costs.
Customize voltage, machine color, casters, and safety baffles to perfectly match your operational needs.
Free spare parts include circular blade, transverse blade, wrench, spacer for immediate maintenance support.

products details

BS-AC90 Heavy-Duty Cable Stripping Machine from BSGH Granulator is specially built for processing all scrap wires up to 98mm in diameter. Different from other standard wire strippers, it has transverse cross-cut blades, capable of handling tough cables such as feeder wire, communication cables, multi-strand square, lead-containing cables and rubber wire. An adjustable gearbox allows users to fine-tune the stripping speed, ensuring the optimal combination of power and productivity for every application. Robust, dependable, and highly efficient, the BS-AC90 is a trusted choice for household recyclers, small-scale scrap yards, and metal recycling businesses seeking maximum value from scrap cable processing.

video description

Machine Model: BS-AC90
Power: 4KW
Customer: Allen from USA
Purchasing Time: May, 2026

Faced with a wide variety of scrap cables and a limited budget, Allen chose our BS-AC90 Heavy-Duty Cable Stripping Machine. In this final factory testing video, you can see how easily our technician feeds a thick, high-density industrial cable into the machine. Thanks to its advanced transverse cross-cut blades, the machine cleanly and efficiently separates the heavy insulation from the copper core in a single pass. The output has two precise cuts, allowing the pure copper wire to be quickly and easily pulled out for immediate resale. Impressed by the real-time performance demonstrated in this video, Allen is now eagerly awaiting delivery of his machine to put it to work in his scrap recycling business.

heavy duty cable stripper machine for sale

BS-AC90 heavy duty cable stripping machine is engineered for wide application and efficient scrap cable stripping, almost can peel all kinds of cables within the diameter range, following is technical data for your reference.

Modell	Cable stripper BS-AC90
Verarbeitungsbereich	Φ 2mm-98mm
Leistung	4kw with reduction gear box
Verarbeitungskapazität	200–5000kg/day
Maschinengewicht	235kg
Maschinengröße	7705501180mm

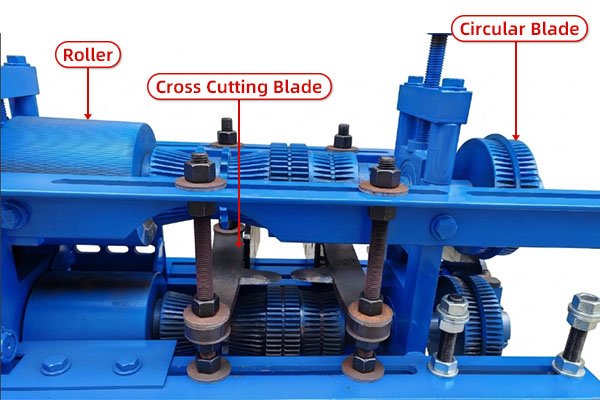

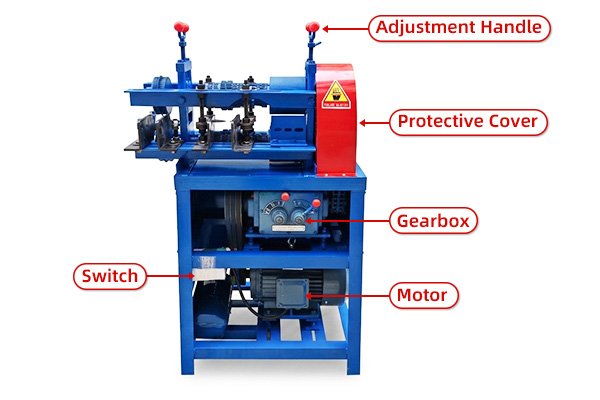

newly development cable stripping machine Structure

At the heart of every reliable cable stripper is a heavy-duty shaft and specialized blades. Read on to find how these core structural components work together to peel tough cables perfectly.

Motor: Providing reliable driving force for the entire stripping system.
Circular Cutter: Independently processing standard cables under 50mm.
Adjustment Handle: Precisely adjusting roller distance to match cable thickness.
Gearbox: Controlling speed for optimized processing efficiency.
Switch: Simple on/off operation.
Roller: Specially designed to press single-strand square wires for copper core.
Cross Cutting Blade: Slicing through scrap cable with two incisions left, you can replace by removing the screws.
Protective Cover: Specially protecting your hands from injury.

heavy duty cable stripping machine Advantages

Wide Processing Range: Transverse blades easily handle any cable diameter within the 1.5mm–98mm range, round blades for 50mm and pressing roller for auxiliary.
Wiring-and-Play Operation: Feed cable to the matching blades after three-phase is ready, fast processing in seconds.
Pure Copper Core: Gearbox-controlled speed ensures high-efficiency stripping with zero metal core damage.
Simple Maintenance: Quick blade replacement design guarantees minimal downtime.
Safety Protection: Protective cover + customized baffles make sure your safety.
Global Guarantee: Comes with a 1-year warranty and 24/7 responsive technical support.

operating instructions

Arbeitsschritte

Initial Setup

Once receiving your machine, place it on a flat, solid, and level surface. If equipped with casters, please ensure all wheels fixed to make machine unmovable.

Circular Cutter Operation

Feeding Guide Alignment: Adjust the positioning guide rail (angle iron) to match the exact diameter of the target cable. Ensure the cable passes through snugly without lateral shifting.
Blade Depth Calibration: Adjust the clearance between the upper and lower cutting shafts. The blade edges should precisely pierce and score the outer insulation jacket without nicking or damaging the internal copper conductor.

Replace round blades to Cross-Cutter

Schritt 1: Loosening the Shaft Nuts
Insert your chisel into the shaft nut slot and tap firmly with the hammer to break it loose.
THREAD DIRECTION NOTE:
Upper shaft utilizes a Left-Hand (Reverse) Thread (turn clockwise to loosen); Lower shaft utilizes a Right-Hand (Standard) Thread (turn counter-clockwise to loosen).
Schritt 2: Component Disassembly
Completely remove the nuts and sequentially slide the standard gears and blades off the shafts. Retrieve the flat-tooth cutters and required mounting accessories from the built-in toolbox.
Schritt 3: Cross-Cutter Assembly Installation
Slide the 20mm retaining collar (retaining ring) onto the shaft first, followed by inserting the shaft drive pin. Mount the primary gears and the outer retaining ring in sequence, then securely torque the retention nut.
Schritt 4: Calibration & Pre-Testing
1. Mount the transverse cross-cutting blade onto the tool retention screw. Insert cable into feeding inlet.
2. Adjust the upper and lower gears to clamp the cable tightly, ensuring its centerline sits slightly past the gear center axis. Fine-tune the blade depth so the tip precisely scores the insulation layer, maximizing separation efficiency during operation.

Gear Shifting & Speed Regulation

CRITICAL SAFETY PROTOCOL:

Always power off the control switch and wait for all moving shafts to come to a complete standstill before attempting to shift gears. Never open the guard panels while the motor is energized.
Verify the machine is completely powered down and open the front access door panel.
To shift gears cleanly, manually rotate the pulley adjacent to the gearbox to align the internal gear teeth.
Speed Configurations (From Low to High Torque):
Configure the levers according to your panel markings: 1-L ➔ 1-H ➔ 2-L ➔ 2-H (or 1N ➔ 2N ➔ 3N ➔ 4N).

Rohstoffe

Based on its flexible design, BS-AC90 cable stripping machine from BSGH Granulator manufacturer can deal with lots of wires including:

Steel wires, rubber cables, high-voltage high-density cables;
Solid single-strand square wires;
Armoured cables with copper, aluminum, or steel sheaths

However, if stripping high-volume armored cable scrap, we recommend the more powerful BS-AN125 cable peeler oder armoured cable recycling line.

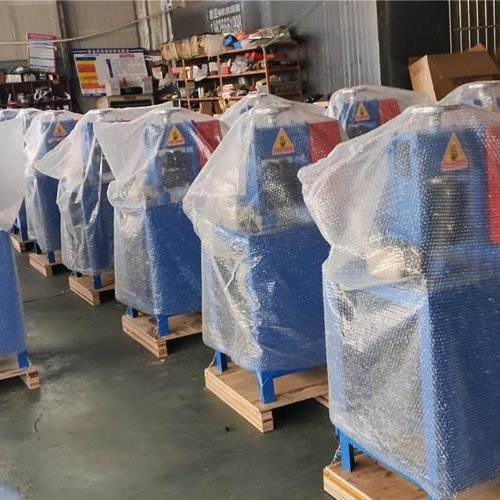

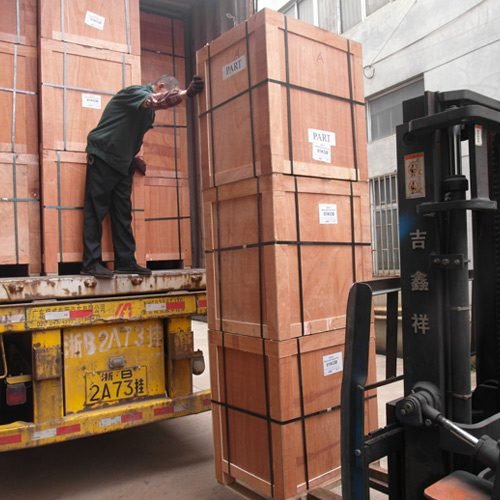

Export-Grade Packaging & Reliable Global Logistics

Top-tier cable stripping machine quality demands top-tier delivery protection. To safeguard your equipment, BSGH Granulator utilizes robust, multi-layered packaging to withstand the rigors of global freight. Discover our real-world packing and shipping records below to see how our logistics team prepares your cable stripper for a safe, damage-free delivery directly to your yard.

Real feedback

From product design to real-world use, the BS-AC90 Heavy-Duty Cable Stripping Machine has proven its reliability in scrapyard operations across different regions. Users appreciate its stable performance, efficient stripping capability, and straightforward operation, making it a practical solution for cable recycling work worldwide.

Häufig gestellte Fragen

Can heavy duty cable stripping machine BS-AC90 process solid single-conductor wires? How should it be operated?

Of course. BS-AC90 can strip solid single-conductor wires (BV hard wire). To operate it, simply remove the circular blade and feed cables into pressing roller for complete stripping.

BS-AC90 cable stripping machine has two kinds of blades, how can I peel 2-98mm cables without switching blades?

You can strip cable below 50mm in diamater through round blade, pressing roller for single-strand square cables, cross cutting blade above the anti-slip roller for other cables under 98mm, so that you can save more time and labor.

Can our heavy duty cable stripping machine’s cutting blades be replaced once they become worn?

Of course they can be replaced and you can finish by yourself, we also offer free spare blades for long-term use, just remove the matching screw for worn blade to replace.

Does your heavy duty cable stripping machine support customization for specific local voltage and safety standards?

Yes. We provide OEM customization to meet your specific requirements, including voltage adaptation for your local power supply, protective safety guards, custom machine colors, and optional universal casters.
