forklift supplier in china

All our forklift are heavy duty and offer superior performance to meet the needs of various industrial applications. Designed for continuous and efficient heavy lifting, they stand out with their stable and reliable performance, making them the best solution for your heavy handling tasks.

High-performance and durable forklift for sale

All our forklifts are built for the tough jobs. Whether you’re moving heavy pallets at a construction site, loading cargo at the port, or handling bulk materials in a manufacturing yard, they provide steady heavy torque and can handle up to 46 tons.
✓ Maintain full lifting capacity during long operations without performance drop-off.
✓ Special structural design, low maintenance requirements, saving a lot of maintenance costs.
✓ Adopting an optimized frame structure, the driver has a wider field of vision.
✓ Equipped with LED lights, energy-saving and environmentally friendly, longer service life, and higher reliability.
✓ Designed for outdoor use, it has undergone multiple tests such as rain tests and impact tests, and can easily cope with rain, dust and temperature fluctuations.
✓ We support customized fork extension, carpet boom, slings, and other accessories to help you move larger or more unusually shaped loads. If you have any needs, please contact us.

forklift manufacturer in china

Our forklift trucks have different load capacities, ranging from 2 tons to 46 tons. Whether it is daily transportation in logistics warehousing or heavy-duty operations in manufacturing and ports, they can stably bear loads and operate efficiently. Each model has the following standard functions:
• Information management: multi-organization decentralized management, vehicle basic information management.
• Vehicle positioning: GPS/base station positioning, vehicle operation trajectory playback.
• Monitoring: power on/off, voltage, power, working hours, and other status information monitoring.
• Fault reminder: support vehicle fault alarm.
• Maintenance management: automatic reminder of maintenance information and maintenance schedule record management.
• Intelligent report: operation record, working hours.
• APP management: grasp the machine operation status anytime, anywhere.

 Modèle CPC(D)20CPC(D)25CPC(D)30CPC(D)35CPC(D)38
Lifting Capacitykg20002500300035003800
Load Centermm500500500500500
Power Type Diesel
Drive TypemmSit-down
DataLift Height (Standard)Hmm30003000300030003000
Mast Height (forks lowered, mast vertical)HImm20002000207021202180
Maximum Fork Height (with load backrest)H2mm40304030421742174217
Free Lift HeightH3mm156156155160160
Overall Height (with overhead guard)H4mm21202120214021402140
Ground Clearance (under mast)H5mm115115135135135
Seat-to-Overhead Guard ClearanceH6mm10501050105010501050
Tow Pin HeightH9mm290290310310310
Load Backrest Height (from fork face)H13mm10001000118211771177
Overall Length (with/without forks)(L/L’)mm3450/25303685/26153862/27923868/27983870/2800
WheelbaseL1mm16501650175017501750
Front OverhangL2mm465465478484484
Rear OverhangL3mm415500564564565
Overall WidthW1mm11601160122512251225
Track Width (front/rear)(W3/W2)mm970/970  1000/970
Fork Spread Range (outer, max/min)W5mm1030/2441030/2441060/2501060/2501060/250
Minimum Outside Turning Radiuslmm22152270240024002410
Minimum Inside Turning Radiuslmm3535808080
Mast Tilt Angle (forward/rearward)α/βdeg.6°/12°6°/12°6°/12°6°/12°6°/12°
Fork Dimensions (L×W×T)L4xWxTmm920x122x401070x122x401070x125x451070x125x501070x125x50
Minimum Aisle Width for 1000×1200 Pallet (crosswise)Astmm38803935407840844094
Minimum Aisle Width for 1200×800 Pallet (lengthwise)Astmm40804135427842844294
PoidsPoids brutkg33003650427046004750
Axle Load Distribution (loaded, front/rear)kg4710/5905440/7106430/8407280/8207710/840
Axle Load Distribution (unloaded, front/rear)kg1540/17601470/21801750/25201790/28101800/2950
Wheel & TireWheel Configuration: X (drive wheels: front/rear) 2X/2
Tire Type (front/rear) Pneumatic Tire
Tire Size (front/rear) 7.00-12-12PR/6.00-9-10PR28×9-15-14PR/6.5-10-10PR
Service Brake Hydraulic Pedal-operated
Parking Brake Mechanical Hand-lever Type
Modèle  CPC40CPCD40CP(Q)YD40CPC45CPCD45CP(Q)YD45CPC50CPCD50CP ( Q)YD50
Power Type DieselDieselLPG (Gasoline)DieselDieselLPG (Gasoline)DieselDieselLPG (Gasoline)
Rated Load CapacityQkg400045005000
Load Center Distancecmm500500500
Drive Type  Sit-downSit-downSit-down
Maximum Height (with load backrest, unloaded)H2mm425042504250
Maximum Lift HeightHmm300030003000
Mast Height (forks lowered, mast vertical)HImm227522752275
Free Lift HeightH3mm150150150
Load Backrest Height H13mm125012501250
Seat-to-Overhead Guard ClearanceH6mm102010201020
Overhead Guard HeightH4mm235023502350
Overall Length (with/without forks)L/L’mm4310/32404310/32404310/3240
Front OverhangL2mm560560560
Rear OverhangL3mm580580580
WheelbaseL1mm210021002100
Tow Hitch Center HeightH9mm300300300
Ground DistanceH5mm175175175
Overall WidthW1mm148014801480
Fork Spread (outer, max/min)W5mm1340/3001340/3001340/300
Track Width (front/rear)W3/W2mm 1200/1190(Mechanical Transmission Vehicle)1230/1190(Hydrostatic Transmission Vehicle)
Minimum Turning Radius (outer)lmm293029302930
Minimum Turning Radius (inner)lmm215215215
Minimum Aisle Width (90° stacking)Ramm290029002900
Mast Tilt Angle (forward/rearward)α/βdeg6/126/126/12
Fork Dimensions (L×W×T)L4xWxTmm1070x150x501070x150x501070x150x50
Minimum Aisle Width for 1000×1200 Pallet (crosswise)Astmm469046904690
Minimum Aisle Width for 1200×800 Pallet (lengthwise)Astmm489048904890
Gross Weight (including fluids)kg629064606490666067506920
Axle Load (front/rear) full loadkg8675/16158815/16459600/13909680/148010430/132010500/1420
Axle Load (front/rear) unloadedkg2772/35182776/36942830/36602865/37952860/38902965/3955
Wheel Configuration: X (Drive Wheels: Front/Rear) 2X/2(Dual Tire 4X/2)
Tire Type (Front/Rear) Pneumatic Tire
Tire Size (Front) 8.25-15-14PR300-15-18PR
Tire Size (Rear) 7.00-12-14PR7.00-12-14PR
Dual Tire Specification (Front/Rear) 8.25-15-14PR/7.00-12-14PR
Service Brake Vacuum-assisted pedal type (mechanical transmission vehicles)/Hydraulic-assisted pedal type (hydrostatic transmission vehicles)
Parking Brake  Mechanical  hand-operated type
Fuel Tank Capacity
90 90L (liters)
 90
Modèle  CPCD50CPCD60CPCD70CPCD80CPCD90CPCD100
Configuration No.  QC1K2
Features
 Rated Load  kgS0006000T0008000900010000
Load Center Distance mm600
Power Type  Diesel
Drive Type  Sit-down
Front Overhangxmm575580585695685700
Wheelbaseetmm2400240025502850
Curb Weight (Including Fluids) kg800085709170100401145012300
Dimensional Parameters
Mast Tilt Angle (Forward/Rearward)a/B*6/12
Mast Height (Forks Lowered, Mast Vertical)h1mm2480254727002850
Free Lift Heighth2mm155160165170190200
Lift Height (Standard)h3mm3000
(Operational Maximum Height( Overhead Guard )h4mm4400446742504415
Overall Height (Including Overhead Guard)h6mm24502510 2560
Seat SIP Point Height (From Ground)h7mm143014901540
Tow Pin Heighth10mm390450475
Minimum Ground Clearance (At Mast)mlmm180245250
Load Backrest Height (From Fork Face)h13mm136013501345///
Overall Length (With Forks)L1mm477048504890502051805440
Overall Length (Without Forks)L2mm355036303670380039604220
Overall Widthb1mm204421242164
Fork Spread (Max/Min)b5mm300-1845370-1750470-1990470-2100
Fork Dimensions: Thickness × Width × Lengths/e/lmm55x150x122060x150x122065x150x122070x150x122080x175x1220
Front Track Widthb10mm1520152016001600
Rear Track Widthb11mm1700170017001700
Minimum Aisle Width for 90° Stacking (Pallet 1000×1200 Crosswise)Astmm523052805350547057406060
Minimum Turning Radius (Outside)Wamm325033003350340036303940
Performance
Maximum Travel Speed km/h28/3128/3128/3128/3128/3128/31
Lift Speed (Loaded/Unloaded) mm/s500/530500/530500/530450/480390/420330/350
 Lowering Speed (Loaded/Unloaded) mm/sWITHOUTLOAD≥300 WITH FULL LOAD≤600
Maximum Traction Force (Loaded) N.-É.707070707070
Maximum Gradeability (Loaded/Unloaded) %38/2035/2032/2030/2025/2025/20
Tires
Number of Wheels (Front/Rear)  4X/2
Tire Type (Front/Rear)  Pneumatic Tire
Tire Size (Front)  8.25-15-14PR8.25-20-14PR9.00-20-14PR
Tire Size (Rear)  8.25-15-14PR8.25-15-14PR9.00-20-14PR
Engine (Internal Combustion)
Manufacturer/Model  Quanchai S45-115C41 Bosch Common Rail (China IV)Quanchai S45-130C41 Bosch Common Rail (China IV)
Rated Power Kw/rpm85/220096.6/2200
Maximum Torque Nm/rpm500/1600540/1400-1650
Cylinders – Bore × Stroke / Displacement /L4-105×124/4.3
Fuel Tank Capacity L140
Transmission Type  Hydraulic Transmission 一 Mechanical Shifting
Number of Gears (Forward/Reverse)  2/2
Service Brake  Vacuum-assisted Brake – Pedal TypePower Brake – Pedal Type
Parking Brake  Mechanical Hand Brake – Lever Type
Pression du système hydraulique mpa20.52320.520.5
Battery (Voltage/Capacity) V//Ah2X12/80
ModèleUnitCPCD200CPCD250CPCD280CPCD300CPCD320CPCD350CPCD380CPCD400CPCD420CPCD460
Rated loadkg20000250002800030000320003500038000400004200046000
Curb weightkg33600369003900041000430004600052800544005750059500
Maximum lifting speed (loaded/unloaded)mm/s270/310270/310250/300250/300250/300230/245300/350300/350300/350300/350
Maximum speed (loaded/unloaded)km/h22/2422/2422/2422/2422/2422/2423/2623/2623/2623/26
Gradeability(loaded)(2km/h)%20202020202020202020
Modèle CQD15 CQD18
Configuration Code  GD2RGE2RGD2RGE2R
Rated Load CapacityQkg15001800
Load Center DistanceCmm500
Power Type  Battery
Operator Position  Stand-up
 WheelbaseOuimm13351500
Tyre
Tire Type   Polyurethane (PU)
Wheel Configuration (X=drive wheels: drive/steer/load wheels)b2mm1x/2/2
Tyre Loadb3mm976
Load Wheel Size mmΦ254×114
Drive Wheel Size mmΦ330×114
Steer Wheel Size mmΦ178×76
Standard Mast Lift Heighth3mm32003200
Free Lift Heighth2mm115115
Lowered Mast Heighth1mm23552355
Fork Dimensions (Thickness×Width×Length)s/e/lmm35x100x92035x100x920
Fork Spread Adjustment mm200~628200~628
Fork Side Shift mm±55±55
Truck Length (without forks)Lmm17211886
Truck Widthb1mm10901090
Outrigger Spreadb2mm772772
Forward Reachl4mm550635
Overhead Guard Heighth4mm22502250
Ground Clearance (under mast)m2mm8080
Minimum Turning RadiusWamm16151775
Fork Face to Load Wheel CenterXmm329414
Right-angle Stacking Aisle (1100×1100 pallet, 200mm clearance)Astmm27602855
Right-angle Stacking Aisle (1000×1100 pallet, 200mm clearance)Astmm26802775
Travel Speed (loaded/unloaded) km/h10/10.510/10.5
Lift Speed (loaded/unloaded) m/s0.31/0.50.3/0.5
Lowering Speed (loaded/unloaded) m/s0.5/0.50.5/0.5
Forward Speed (loaded/unloaded) m/s0.11/0.110.11/0.11
Gradeability (loaded/unloaded) %10/1510/15
Poids
Curb Weight (including battery) kg25952645
Battery
Battery Voltage/Capacity×5 V/Ah48/34548/360
Battery Weight kg630675
Battery Compartment Dimensions mm1020x359x6291020x439x629
Traction Motor Power kw55
Lift Motor Power kw1010
Steering Motor Power kw0.60.6
Traction Control/Lift Control/Steering Control  MOSTET/AC
Boîte de vitesse  HELI Special Transmission
Service Brake  Electric Braking System
Pression du système hydraulique MPA16.518.5

Key features of our forklift

Advantages of our industrial material handler equipment

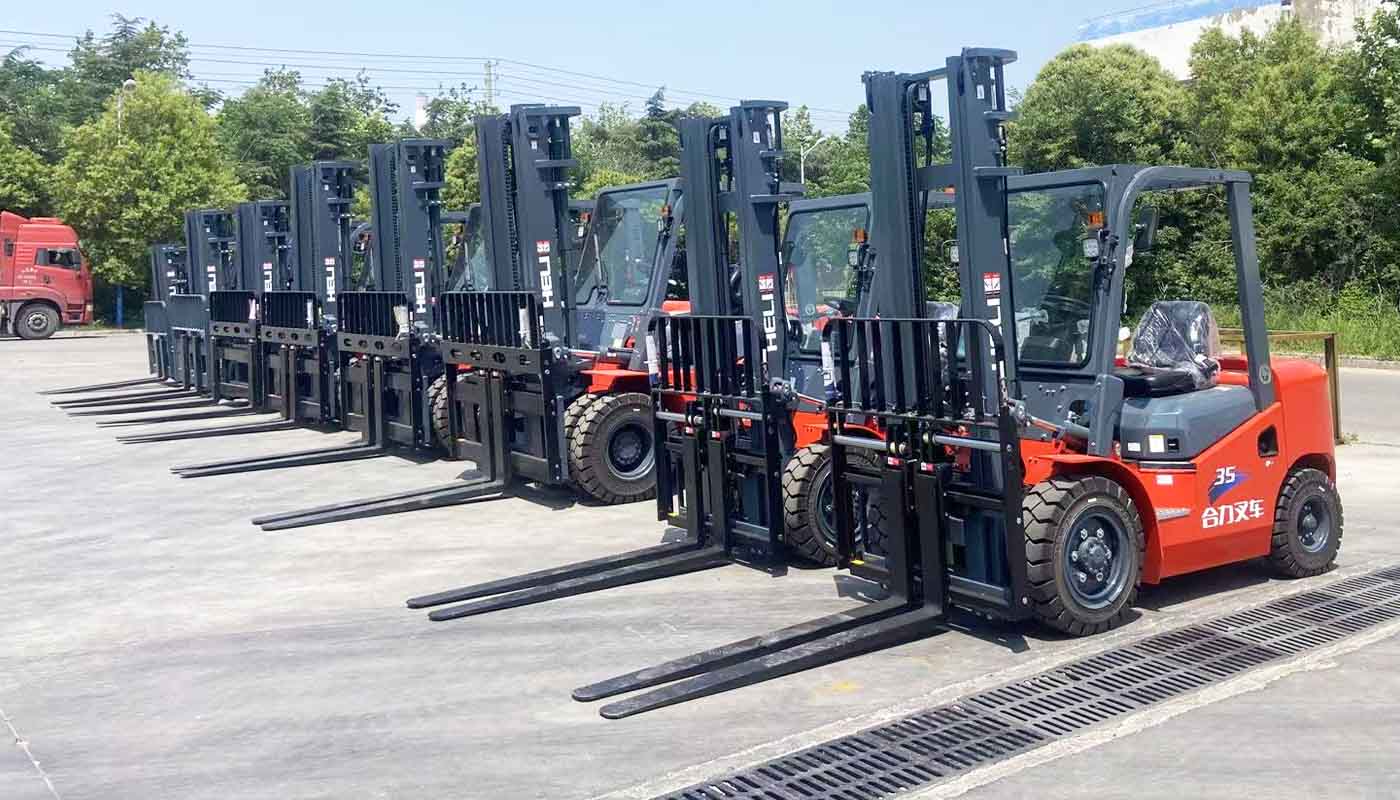

heavy duty forklift for sale

safe

The anti-slip aluminum pedals and sturdy and durable auxiliary handrails ensure high safety for the driver when getting on and off the vehicle.

intelligent

Equipped with an OPS system, the power will be automatically disconnected when the operator leaves the seat.

easy to operate

The steering wheel can be adjusted according to the driver’s habits, and the light and flexible steering greatly reduces work intensity.

snap-on installation

The bottom plate utilizes a snap-on installation method, making it easy to disassemble.

Real-time monitor

The dedicated instrument will fully display the vehicle’s operating status, fault detection, and other complete information, allowing you to understand the forklift’s status better.

Quels services pouvez-vous obtenir auprès de BSGH Granulator ?

We provide service for our forklift from pre-sales to after-sales, we also provide thoughtful one-stop service to help you get the best shopping and use experience.

Pre-sales:

✓ Professional model selection suggestions
✓ Customized solutions that perfectly match your requirements
✓ Help you complete the entire ordering process and give you a smooth shopping experience.

During sales:

✓ Timely follow-up of production status
✓ Detailed machine usage and maintenance methods
✓ Worker training

After-sales:

✓ One-year warranty, free repair or replacement of damaged parts (not caused by human factors) during the warranty period
✓ Lifelong 24-hour online rapid response, online solution for all your machine-related problems

customer project case

The following is the forklift video from our customer’s place. It can feed material to a shredder, granulator, crusher, etc.

for our Austrilia Customer

for our Thailand Customer

buy forklift for your business
fr_FRFrench

machine enquiry

Excavateurs et chariots élévateurs de BSGH
grappin d'excavatrice rotatif de bsghgranulator
industrie du recyclage

From robust tools to advanced recycling machinery, we provide a comprehensive selection: cutting, moving, shearing, grap, baler, separation, a series of heavy-duty equipment engineered to meet the demands of diverse industrial operations and material types. Which kinds of function do you need? Send us your requests now to let our machine help you to get more profits.

quels types de machines à dénuder les fils voulez-vous ?

Veuillez remplir le formulaire suivant (indiquez-nous vos demandes ou vous pouvez choisir parmi) :

Machine à dénuder les fils à usage domestique
1,5 MM-38 MM; 2-45 MM; 2-76 MM; 2-60 MM;
Machine à dénuder les câbles industriels
10-120 MM; 10-160 MM; 60-200 MM

Selon vos demandes, je vous recommanderai la machine adaptée.

Machine de recyclage de radiateurs

structure de la machine de recyclage de radiateur

Nous disposons de toutes sortes de machines de recyclage de radiateurs, en plus des machines de décapage de radiateurs simples et des lignes de recyclage de radiateurs, des machines de découpe de radiateurs.

Nos machines sont capables de traiter tous types de radiateurs de récupération, y compris les radiateurs de voiture, les radiateurs de réservoir d'eau et les radiateurs de climatisation, les radiateurs revêtus d'aluminium, etc.

Presse à balles hydraulique pour métaux

fabricant de presses à balles pour voitures

Notre presse à balles pour métaux peut traiter tous les types de ferraille, en plus des métaux légers et lourds, des métaux ferreux et des métaux non ferreux ;

nos machines ont une petite pression jusqu'à une grande pression 80T, 125T, 135T, 160T, 200T, 250T, 315T et 400T, si vous ne savez pas quelle pression choisir, envoyez-nous votre photo de matériau ci-dessous et demandez un devis gratuit maintenant !

Dites-moi vos demandes

Nous avons:

  • Broyeurs monomoteur
  • Broyeurs à double moteur
  • Puissance de 3KW à 500KW et plus
  • Tous les broyeurs sont personnalisés en fonction de la matière première du client.
  • Notre machine peut déchiqueter : toutes sortes de métaux, plastiques, palettes en bois, etc.
  • Matériau des lames de broyeur : H13, SKD-11 et support personnalisé.
  • Quantité de dents du broyeur : selon les différents types de machines, les dents sont également différentes.
  • Prix du broyeur : de 4 900 à 300 000 USD
  • Type de broyeur : broyeur commun et broyeur à moteur hydraulique.

Pouvez-vous me dire quels types de matériaux vous souhaitez traiter ? Cliquez ci-dessous et envoyez une photo du matériel.

Logo du fabricant du granulateur BSGHG

Moteur électrique normal

Coque de moteur de processus | Stator de moteur | Arbre de moteur

Machine de recyclage de moteurs à énergie nouvelle

Découpe de coques de moteurs | Recyclage de stators de moteurs

Machine de recyclage de démarreur de voiture

Découpe de démarreur automatique | Pressage de démarreur automatique | Chauffage de démarreur de voiture | Machine de tirage de démarreur de voiture

Recyclage d'alternateur de voiture

Machine de découpe d'alternateur de voiture | Machine de tirage d'alternateur de voiture

Usine de recyclage de moteurs

Ligne de recyclage de stator de moteur | Ligne de recyclage de rotor de moteur | Usine de recyclage de moteurs entiers

Machine de recyclage de transformateurs

Pour le recyclage des petits transformateurs

Machine de recyclage de compresseur

Machine de découpe de coque de compresseur | Recyclage de stator de compresseur

Recyclage des moteurs de ventilateurs de plafond

Principalement pour le recyclage des moteurs de ventilateurs de plafond

Recyclage des interrupteurs magnétiques automobiles

Pour tous les types d'interrupteurs magnétiques de voiture

Recyclage du moteur du moyeu arrière du vélo électrique

Pour tous les types de moteurs de moyeu de vélo électrique

Presse hydraulique

Principalement pour la presse de toutes sortes de pièces de moteur | Assistance personnalisée

DITES-MOIQuels types de moteurs traitez-vous ?

Soumettez votre demande

Veuillez remplir le formulaire suivant (indiquez-nous vos demandes ou vous pouvez choisir parmi) :

Série D Différentes Capacités
50 kg/h, 70 kg/h, 100 kg/h, 200 kg/h, 300 kg/h
Série N Différentes Capacités
300 à 500 kg/h, 400 à 600 kg/h, 1 T/h, 1 200 à 1 500 kg/h

Selon les différentes capacités ci-dessus, dites-nous vos demandes, une fois que nous aurons obtenu vos informations détaillées pour vos demandes, nous vous contacterons dans un premier temps avec des solutions professionnelles et un support de l'achat à l'utilisation.
