Revolutionary Radiator Shredder Recycling Line | BS-ACP1000 Copper Aluminum Separator

Radiator Shredder Recycling Line BS-ACP1000

Category Machine de recyclage de radiateurs

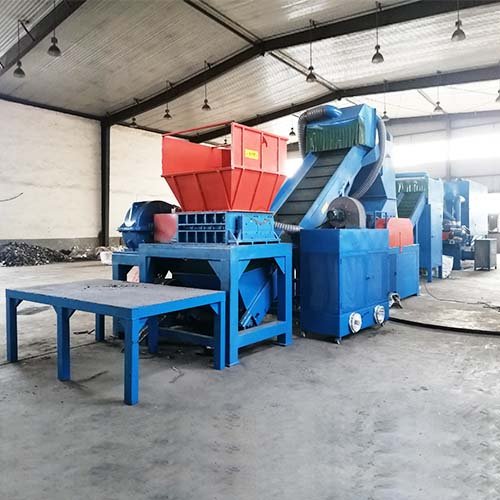

bsgh advanced radiator crush and separator line acp1000

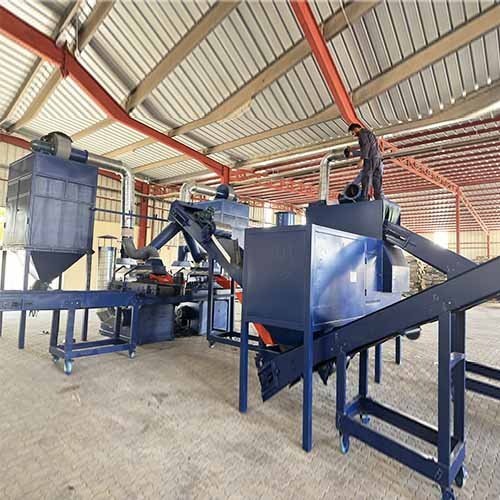

ac radiator shredder separator line BS-ACP1000 for Oman customer from bsgh

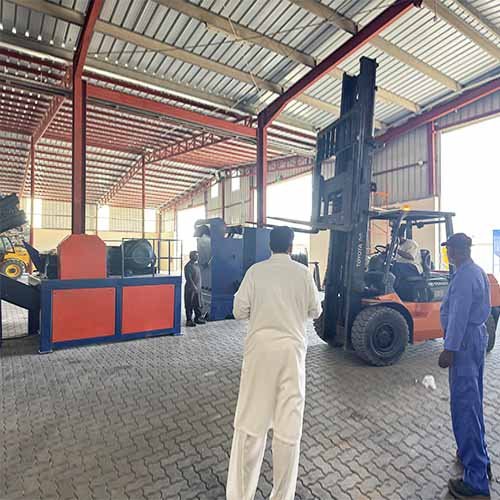

industrial radiator separation system ACP1000 installation in Oman

Radiator Shredder Recycling Line BS-ACP1000

Radiator shredder recycling line BS-ACP1000 has a bigger processing capacity of 2-3T/H.
Suitable for all kinds of AC radiators, car water tank radiators and aluminum-iron clad radiators, no matter it’s flat, curved or multi layers.
Integration of dual-crushing et triple-separation system, recovery rate can reach up to 99%.
PLC electric cabinet control realize fully automatic operation, saving labor and time.
Easy to operate, you only need to turn on the electric cabinet and feed the various radiators on the conveyor belt, pure aluminum, copper and iron granules come out just in a few minutes.

products details

Engineered for large-scale operations, our radiator shredder recycling line is designed to transform mountains of scrap ACs and car radiators into pure profit. Unlike machine à décaper les radiateurs, BS-ACP1000 can reach a massive 2–3 T/H throughput—doubling industry averages.

Through a high-precision process of shredding, crushing, and multi-stage separation (Air, Magnetic, and Vibrating), Granulateur BSGH‘s BS-ACP1000 recovers 99% pure copper and aluminum that command premium market prices, an ideal shredder system for high-volume radiator recycling stations.

video description

Customer: Oman
Bought: In October, 2025
Capacity: Process 2-3T/H

In Oman, where year-round cooling creates a massive surplus of scrap AC units, Mr. Muhammad seized the opportunity with our BS-ACP1000. Since put into use, the radiator recycling line can reach a stable 3T/H processing capacity, greatly clearing his massive stockpiles, freeing up space for new inventory. Most importantly, le 99% purity of copper and aluminum granules command premium prices, promoting a rapid industry expansion. Like Mr. Muhammad, you can also transform high-volume waste into a high-growth empire with BSGH Granulator’s radiator crush and separate plant.

Powerful Radiator shredder recycling Line BS-ACP1000

BSGH Granulator R&D team is upgrading the radiator shredder recycling line all the time, and this is our newly first generation BS-ACP1000, if you want to know more, pls contact our sales expert to learn more.

Modèle	Radiator shredder recycling Line BS-ACP1000
Capacité de traitement	About 2–3 Tons / Hour
Separation Rate	≥99%
Dust Collection Efficiency	≥99%
Max. Feeding Size (L×W×H)	1000×800×70 mm
Output Size (Granules)	About 2–5 cm
Total Installed Power	About AC 210 kW
Tension	380V/440V/480V ou personnalisé
Taille de la machine	2200080005000MM
Poids de la machine	20623KG

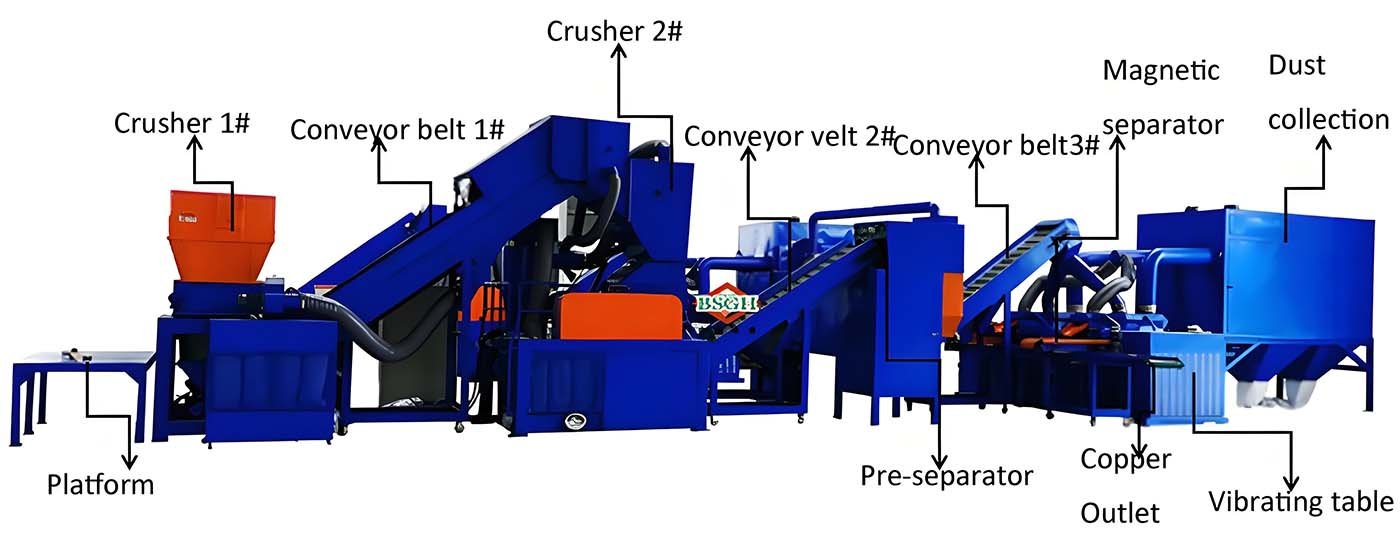

Main structure of radiator shredder recycling line

BS-ACP1000 includes the main parts besides a pre-shredder, fine crusher, air separator, 2 vibrating beds, magnetic separator and dust collection system, these parts are combined to each other and working together to complete the whole recycling process, following are the different parts for your reference:

Crusher 1: A double-shaft shredder machine with two 45kw motors can crush the radiator into small pieces, the crushed mixed metal will not be twisted during the crushing.
Crusher 2: The shredded radiator will be crushed into smaller pieces between 5-25mm.
Air separator: Most of the lighter aluminum from metal mixture will be collected and other mixed metal will be conveyed to the vibrating table.
Vibrating table: Separate copper and remaining aluminum depending on their weight and air bottom fan.
Magnetic separator: Iron will be separated through magnetic force and two separators are installed on the conveyor belt to make sure the Iron can be collected completely.
Dust collection system: Remove dust through suction fans.

Dual-Stage Crushing system

To achieve a 99% separation rate, heavy duty radiator shredder recycling Line BS-ACP1000 utilizes a sophisticated dual-stage crushing system. Both ensures bulky radiators are first reduced in volume and then refined for easy separation.

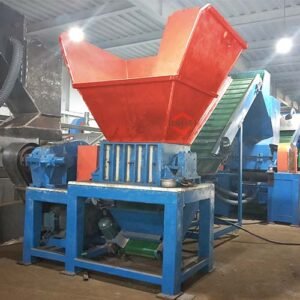

Advanced Primary Shredding System

At the heart of BS-ACP1000 lies a high-performance twin-shaft shredder powered by dual 45kW motors. Departing from conventional designs, our shredder features a proprietary chamber geometry engineered specifically for high-volume radiator processing. This specialized design maximizes throughput while effectively preventing material clogging. Also equipped with baffle plate, it can prevent dangerous material kickback or flyback during crushing, greatly protecting operator’s safety.

Parts	Crusher 1 (Twin-Shaft Shredder)
Pouvoir	45 kW*2
Rotation Diameter	360 mm ×2
Shaft Length	1647 mm
Blade Configuration	40 Blades + 40 Spacers
Machine Dimensions (L×W)	3950×2250 mm
Poids net	5200 kg

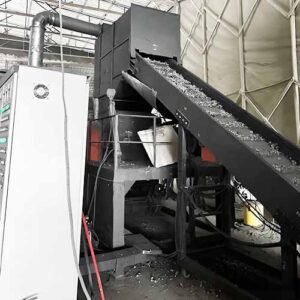

Heavy Duty Secondary Hammer Mill Crusher

BS-ACP1000 radiator shredder recycling line second crusher is hammer mill but bigger and powerful than market one, driven by 75kw motors, it is critical for crushing the shredded radiator into 10-30mm fragments, ready for convenient separation.

Parts	High-Efficiency Crusher
Pouvoir	75 kW
Rotation Diameter	735 mm
Shaft Length	1655 mm
Blade Configuration	28 Pieces
Machine Dimensions (L×W)	2350×1880 mm
Poids net	4080kg

radiator shredder recycling line advantages

99% copper recycling rate without copper loss.
Capable of processing various shapes of the radiator but not too big.
Fully automatic, saving your labor and time.
Equipé d'un système de dépoussiérage réduisant la pollution de l'environnement.
BS-ACP1000 radiator shredder recycling machine have 2 crushers and three separating system, maximizing your scrap value.

Raw materials & Final Products

Les radiateurs sont généralement fabriqués à partir de métaux précieux tels que le cuivre, l'aluminium et le fer. Ils conservent donc une grande valeur de recyclage après leur mise au rebut. Pour extraire le cuivre, l'aluminium et le fer purs des radiateurs usagés, BSGH Granulator a spécialement conçu une machine de recyclage de radiateurs permettant de séparer précisément les différentes substances, de recycler et de réutiliser les matériaux métalliques et d'accroître les profits des recycleurs.

The final products include both copper sheets and aluminum foils, with variations based on different machine configurations, but the same is that you can get at least 99% metal recycled.

Shipment

To ensure your BS-ACP1000 copper and aluminum separation line arrives in peak operating condition, we have perfected a rigorous, three-stage protection:

Every critical component is meticulously hand-wrapped in multiple layers of high-grade industrial stretch film, creating a hermetic barrier that protects sensitive mechanical and electrical parts from moisture, sea salt corrosion, and dust throughout the journey.
Our expert logistics team strategically loads the entire production line into three 40HQ (High Cube) containers. Using specialized heavy-duty forklifts, we secure every unit to eliminate shifting or vibration, guaranteeing that the machine’s alignment remains intact.
We partner with tier-one shipping companies to manage the transit from our factory to your port. This end-to-end oversight ensures a secure, damage-free delivery. When you open the container, you will find your equipment in the exact “factory-fresh” condition as the day it was tested.

FAQ

How often should I replace the blades of Radiator Shredder Recycling Line?

Our blades use premium alloy wear-resistant steel. In a standard 8-hour operation, the shredder blades typically require sharpening only every 6–9 months.

I operate in a region with strict EPA laws, can Radiator Shredder Recycling Line meet?

Yes. BS-ACP1000 is a 100% dry-type physical separation plant. No water, no chemicals, and zero hazardous discharge. The integrated Pulse Dust Collection System (99% efficiency) inside captures all fine particles. Your facility stays clean, and meet EPA standard.

May I know each part's power of the Radiator Shredder Recycling Line?

Of course, we have specific data, if you want, please contact us for details.

What happens if a part breaks? How do you support international clients?

We understand that downtime equals lost money.

Remote Support: We provide 24/7 video technical assistance.
Global Shipping: We maintain a full inventory of wear parts (blades, screens, belts) ready for express international shipping.
On-Site Service: We offer on-site installation and staff training to ensure your machine is in good performance.
