BSM-40 Scrap Motor Recycling Machine
BSM-40 scrap motor recycling machine can efficiently recycle motors of different diameters, have a wider processing range and is multifucntion machine. This machine is an updated version of the BSM-10, the performance is more superior, the motor adopt the pure copper and national standard, so it has high power, stable performance and long working continuity. The hydraulic clamps and lifters of the hydraulic part are uniquely designed to pull out copper windings from larger and heavier motors. The diameter of the copper windings should be less than 500MM.
Your Trustworthy Supplier in Scrap Motor Recycling Machine Market
BSM-40 scrap motor recycling machine
· 1 cutting part and 3 pulling parts
· Equipped with pedal switch with cover, ensure safely operate.
· 3 Capacities for different types of clamps:
- For 8 jaws: About 350PCS/H
- For 16 jaws: About 160~180PCS/H
- For Hydraulic clamp: 50~60PCS/H
– Voltage:
- Support Customized
How Scrap Motor Recycling machine works?
The operation of the machine can generally be divided into two steps.
Step1: Try to place one end of the motor copper winding under the cutting knife, then operator should turn around the motor manually after every cut until the copper winding is totally cut off.
Step2: Then put the stator on the copper pulling part to separate copper windings and silicon steel. Note: You should put the stator into appropriate claws according to its diameter.
Note: Any of the cutting part with 2 pulling parts and hydraulic pliers can work at the same time. In this way, working efficiency can be enhanced greatly.
Machine Advantages:
- The all-in-one cutting and pulling function can be operated at the same time, which greatly improves efficiency.
- There are three different sizes of pulling parts that can handle a wide range of motor stator diameters.
- Equips covered pedal switch for safer operating.
Machine technical data:
| Model | BSM-40 |
|---|---|
| Motor Stator Outer Diameter | 50~500MM |
| Motor Power | 7.5KW |
| Capacity | 8 jaws: About 350PCS/H |
| Dimension(MM) | L1940*W1430*H1150 |
| Weight | 670KG |
BSM-50 is the best partner of BSM-40, they cooperated work can process a wider range of scrap electric motors.

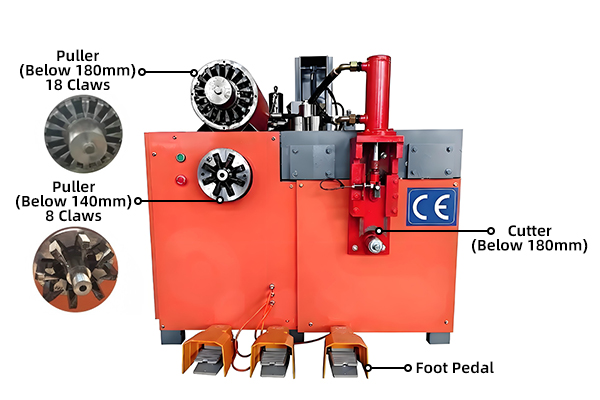

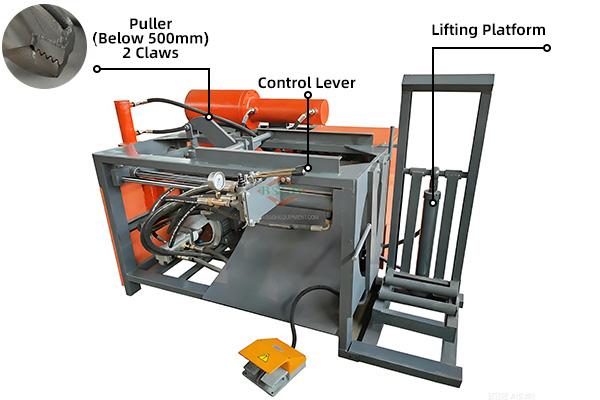

The structure of Scrap Motor Recycling machine Show:
The main structure is consist of Cutting part and Pulling part.
Cutting part can be divided into three types depending on the different blades it has. And each is designed to cut different types of motors.
Flat blade cutting: This type is used to halve the motor case. ST-400 and BSM-50 are equipped with it.
Sharp Blades Cutting: It is designed for cutting the motor stator. Machines such as ST-400 and BSM-50 use this kind of blade to cut.
Semi-Rod Blade Cutting: It is used to cut the copper winding at one end of the stator leading the pulling process more easier. MR-W, BSM10/20/40/60 and BSC mainly rely on this type.
Pulling part: This motor recycling machine has three types of mechanical claws used to pull the rotor part, consisting of 8 claws, 16 claws and a hydraulic clamp. The 8-claw is used to grab rotors below 120mm, the 16-claw is employed to grab rotors below 180mm, and the hydraulic clamp is made for grabbing large stators.
Raw Materials and final products:
Following steps as we mentioned above, you will get complete armature copper windings from waste motors, you can see what they look like as following:

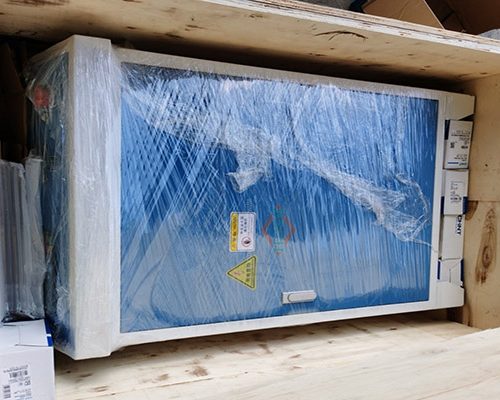

Shipment:
We always devote ourselves to manufacturing high efficiency machines and make sure that our customers receive them intact by tightly packing. And each machine to be sent must be configured and tested strictly.
our happy Customer from all over the world:
We have been running in this industry for over 25 years. Increasing number of customers around the world have purchased machines from us. They are very content with our professional machines and have left positive reviews happily.
About Us
Welcome to Xi’an Grand Harvest Equipment Co., Ltd., your reliable partner for copper recycling. We have been devoting ourselves to excellence and driving by a dedication to recycling of scrap wires, motors, radiators, etc., we provide a wide range of customization services to meet your individual needs. We understand that every component plays a crucial role in optimizing the performance of our machine, this is the reason why we incorporate sophisticated technology, modern equipment, and staff with many years of experience so that you will get excellent copper recycling effects to obviously increase your benefits.
As a professional copper recycling solution supplier, our scrap motor recycling machines could process many kinds of waste motors such as DC motors, vehicle motors, household appliance motors, compressor motor, and other industrial motors. So whether you’re seeking a high-efficiency motor stripping machine or other multifunctional copper recycling machines, our experienced workforce will coordinate with you throughout the process, ensuring that we produce results that match or even surpass your expectations.
Visit our factory

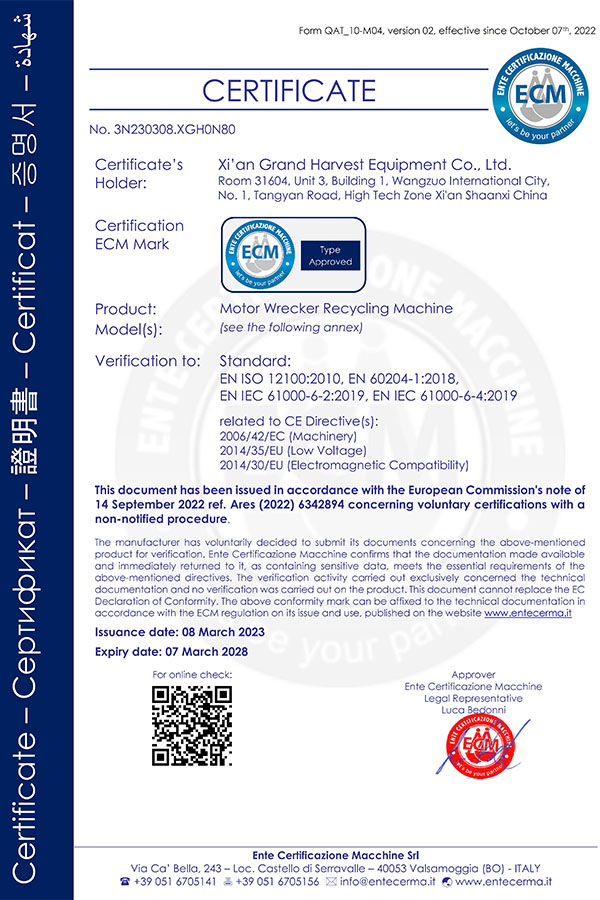

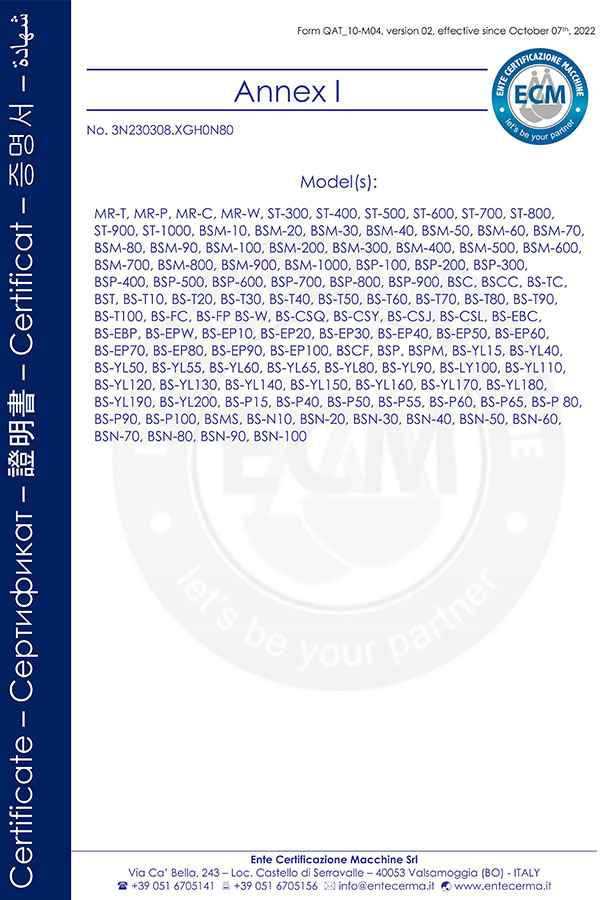

CE certificate
