Copper Wire Shredder Machine BS-D10

Best Recycling Rate BS-D10 Copper Wire Shredder Machine

分类 D series, Small Capacity Granulator Machine

Best Recycling Rate BS-D10 Copper Wire Shredder Machine

100KG/H processing capacity, if you need a larger capacity, BS-D20 wire shredder is another choice.
Main crusher blades are made of SKD-11, wear and impact resistant, serve for longer time.
99.9% copper recycling rate in a physical way can help you get bright copper.
Small model among D series copper wire shredder, low price, capable of handling your car wire harness.
Equipped with 11kw main crusher and 310-350mm feeding hole.

products details

BS-D10 copper wire shredder is a compact cable recycling machine designed to process up to 100 kg of scrap wire per hour. It handles a wide range of wires, including automotive wiring harnesses, communication cables, and other home copper wires. BS-D10’s compact design and simple operation make it an ideal choice for small copper recycling businesses and scrap yards with limited space or manpower.

video description

The factory testing video shows a BS-D10 copper wire shredder machine running smoothly for our Indonesian customer, Iran.

Power Supply: 380V / 50Hz / 3 Phase
Configuration: Standard Configuration

During the test, we fed a mixture of thin scrap wires with fine copper conductors. Despite the small wire size, BS-D10 achieved excellent separation results: the recovered copper was clean with almost no visible plastic, while almost no copper was found in the plastic outlet.

Iran was very satisfied with the testing results. His BS-D10 is now operating smoothly, helping him recover more copper from thin scrap wires, and improve the return from his cable recycling business.

BS-D10 professional Copper wire shredder machine Data

According to customers’ feedback, it is hard to distinguish BS-D10, BS-D20 and BS-D30 copper shredder because of their similar appearance. So we compared these three machines here to help you choose. The biggest capacity among three machines is about 300KG/H, if you need bigger one, welcome to check our big capacity machines and medium capacity machines.

Machine Display

Model	BS-D10 copper wire shredder	BS-D20 wire shredder machine	BS-D30 copper shredder
Capacity	100KG/H	200KG/H	300KG/H
Size	223016002000mm	260016002000mm	270021002300mm
Power	24KW	28KW	About 37.2 KW
Weight	1800KG	About 2000KG	3500KG
Configuration	Has the smallest feeding hole among three machines	Has middle feeding hole among three machines	Has the biggest feeding hole among three machines

Main components of BS-D10 small copper wire shredder machine

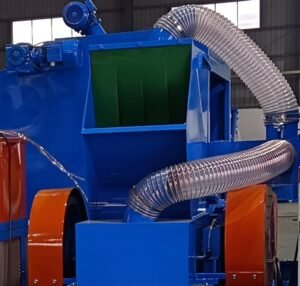

Main part of breaking scrap cables. And we use SKD-11 high hardness blades, which can crush the scrap cables well and reduce machine wear.

Main Crusher

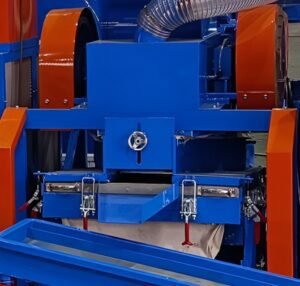

Using the principle of copper and plastic's different densities. Separate the scrap cable granules by airflow and gravity, it is the first separating process.

Air Separator

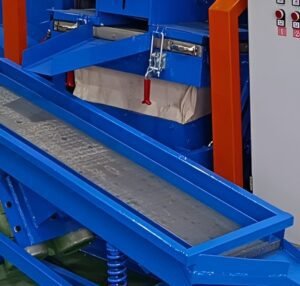

Second separation step, removing copper from plastic by vibrating, it usually cooperates with air separator

Small Vibrating Table

How to Recycle Copper from BS-D10 copper shredding machine?

Recycling scrap cables with BS-D10 copper wire shredder machine is a simple four-step process.
1. Crushing
Scrap cables are fed into BS-D10, where the main crusher cuts and granulates them into small copper and plastic particles.
2. Air Separation
The crushed material then enters the air separator. By using the density difference between copper and plastic, most of the two materials are separated efficiently.
3. Fine Separation
Any remaining mixed particles pass through a small vibration table for further separation, helping recover residual copper and improve the final purity.
4. Final Collection
After separation, clean copper granules and plastic are discharged through separate outlets, ready for collection, reuse, or further recycling.

BS-D10 homeuse copper wire shredder Working Video

Playlist

4 Videos

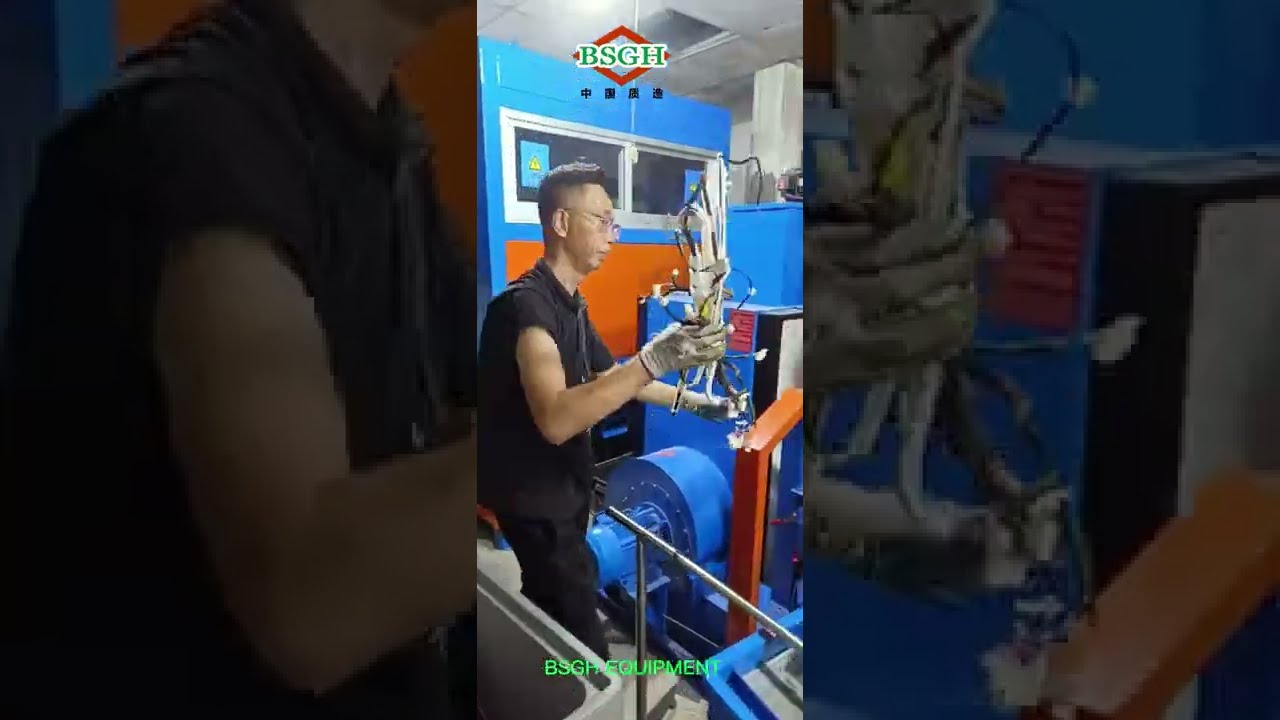

Copper Cable Recycling Machine Crush And Separate Plug Wires Output Brass | BSGH Good Feedback Video

0:38

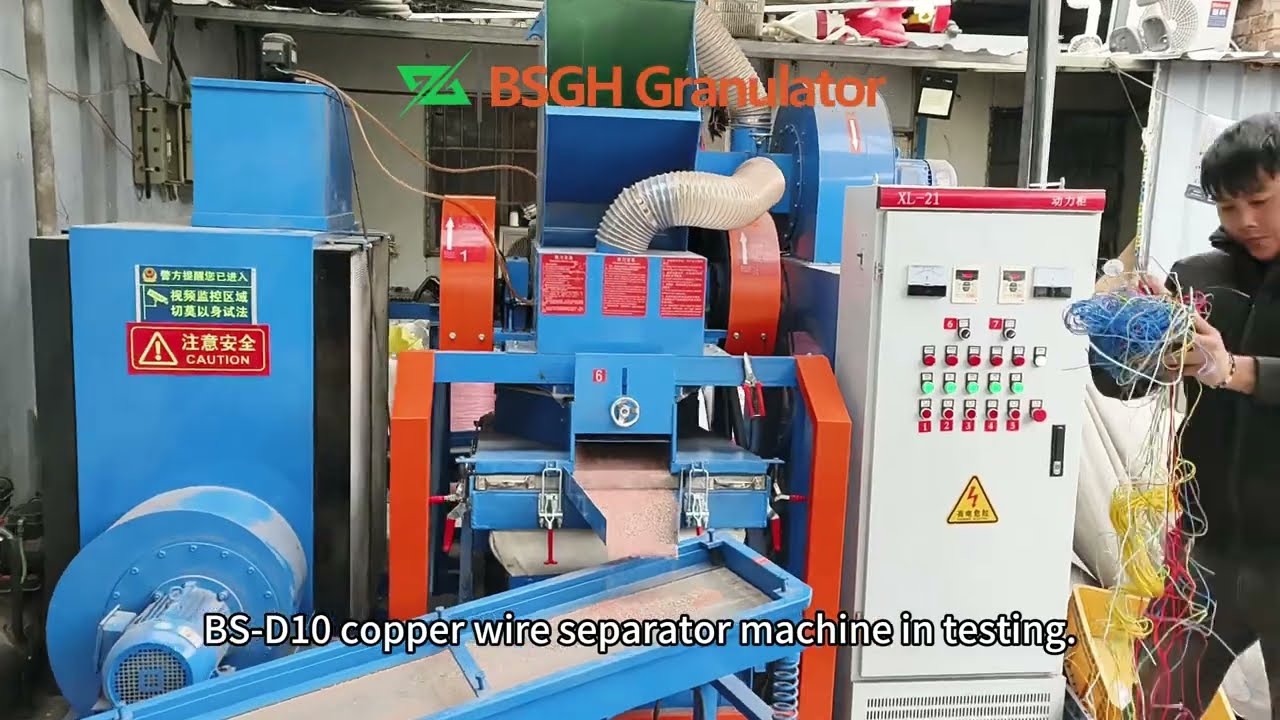

100~150kg/h Copper Wire Separator Machine BS-D10 | 100% Recovery Rate Cable Recycling Machine

0:41

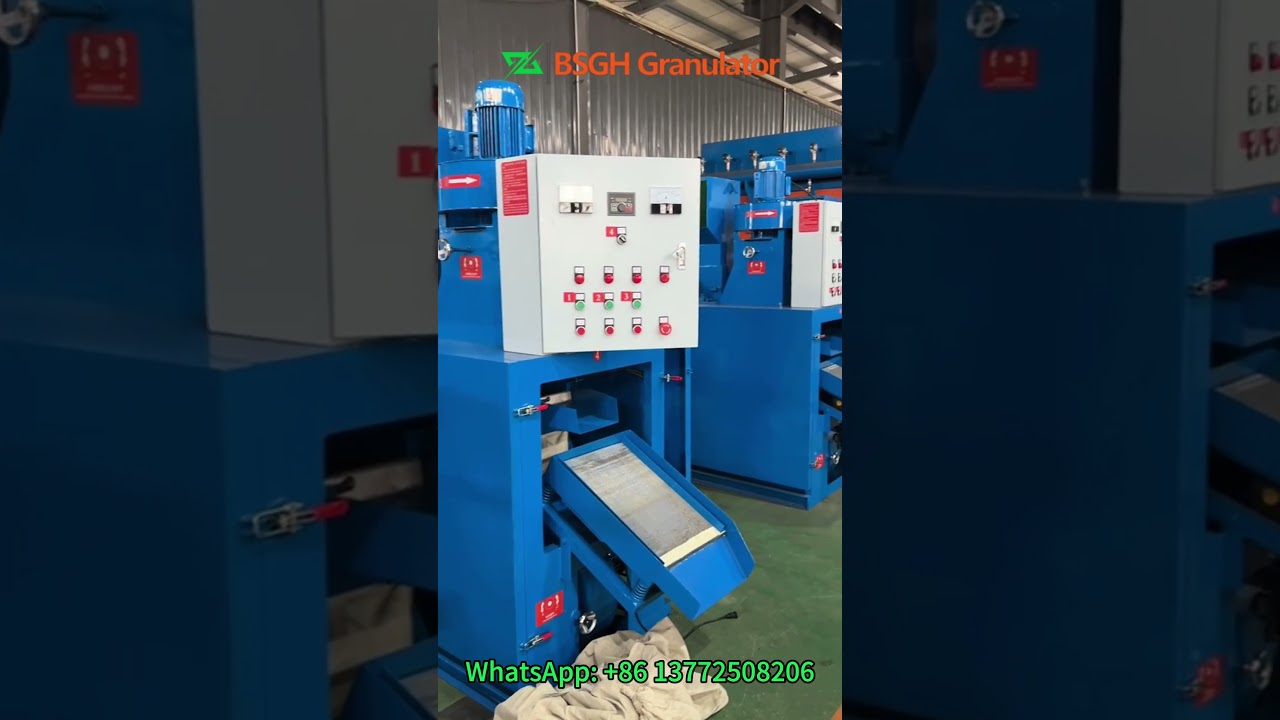

Single-phase Home Wire Granulator For Scrap Cable Recycling | Small Cable Recycling Machine For Sale

0:30

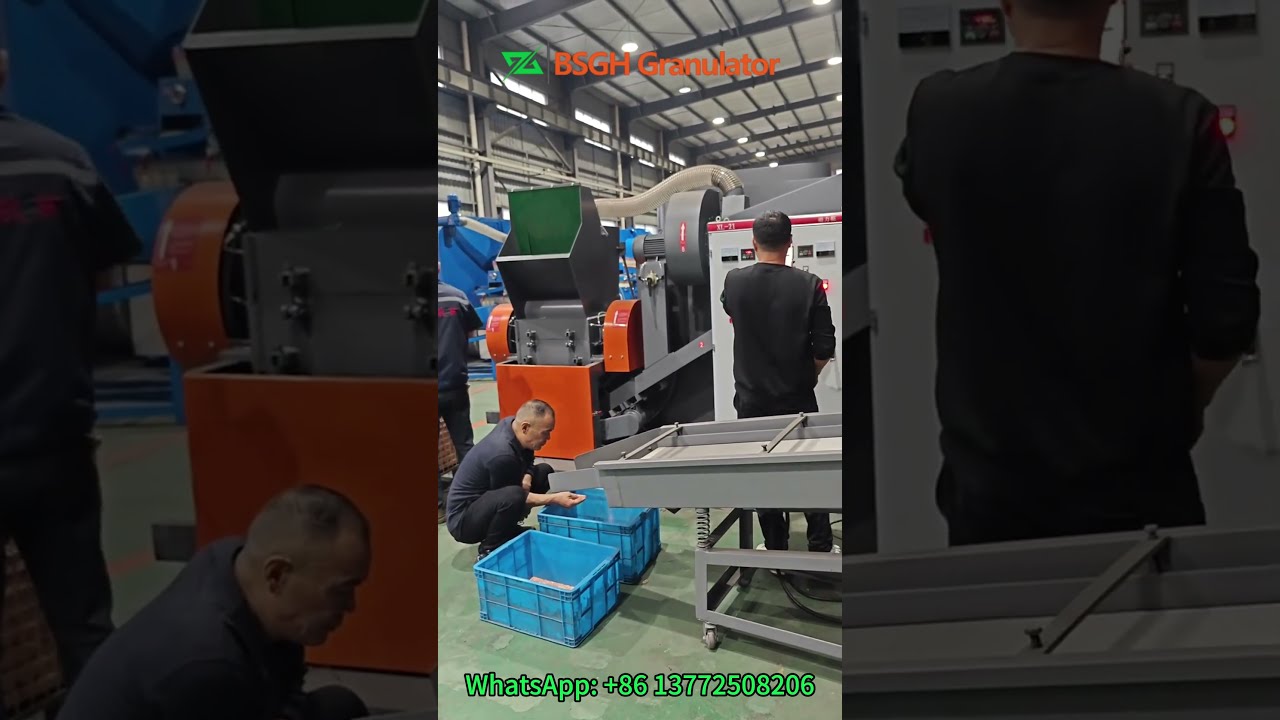

Best Performance Copper Wire Separator Machine With 99.99% Copper Recovery Rate

1:52

packing & Delivery

As a small size machine, we pack BS-D10 copper shredder with plastic inside and plywood outside. And we will track package information until you receive the machine.

Customer feedback

Customer satisfaction is the most convincing evidence of machine quality. Nothing makes us prouder than the more money our customers can make with our machines. The comments below are using feelings of our regular customers.

Rated 5 out of 5

Good Machine! I tested it as soon as I received it. It works so well. And I tried processing different scrap cables, it can process them well, too.

Mikus From Poland

Rated 5 out of 5

Really thanks for your recommendation and service. My client is so happy with the machine, I’m looking forward to cooperating with you again.

Francisco From Russia

Rated 5 out of 5

This is my first time buying a machine in China, it surprised me. Happy to see that copper and plastic granules are so pure.

Mike From Qatar

FAQ

I have different cables and would like to use an pre-shredder connected to BS-D10 copper wire shredder. If you have such an option, please send me information with the quote.

Surely we can assemble a pre-shredder for BS-D10 copper wire shredder, but not recommended. Pre-shredder is mainly used for medium or bigger-size granulator machines. BS-D10 is a small capacity machine only 100kg/H, no need to add the pre-shredder.

Can I get pure copper from BS-D10 copper wire shredder in one time?

Yes, you can get pure copper at one time. Our BS-D10 copper wire shredder's copper separation rate is up to 99.9%, so the final product is pure enough.

I see plastic in copper granules from BS-D10 copper wire shredder, how to solve it?

Do not worry, you can fine-tune the airflow and vibration frequency until no plastic in copper. If still not work, just contact us freely, we are here to help you till problem solved.
