Excavator Hydraulic shear supplier
BSGH Granulator is the professional excavator hydraulic shear manufacturer and supplier in China, our heavy-duty excavator scrap shears offer powerful cutting force to handle diverse scrap metal on any demolition site:
- Suitable for excavators ranging from 3 to 80 tons.
- Robust parts and 4-way indexable blades reduce maintenance cost and extend machine lifespan.
- 360-degree rotation allows shears to firmly grip scrap in perfect cutting angle mid-air.
- Support 1-year warranty and professional global technical support.
What is an excavator hydraulic shear？
Excavator hydraulic shear(commonly known as a mobile scrap shear) is a heavy-duty demolition attachment that adds powerful metal-cutting capabilities to standard excavators. Utilizing an eagle-beak jaw design, it generates immense hydraulic force to easily cut through tough steel structures directly on-site.
By allowing a single operator to work safely from inside the cabin, it eliminates the need for dangerous manual torch cutting. This attachment efficiently reduces large steel waste into small, manageable pieces, which maximizes truck loading capacity and significantly lowers transportation costs.
Common Applications & Trusted Industries:
Scrap Metal Recyclers: Ideal for shearing high-volume daily metal scraps efficiently.
ELV Dismantlers: Essential for tearing down and demolishing End-of-Life Vehicle (ELV) frames.
Industrial Demolition Contractors: Used for dismantling and cutting heavy steel structures on-site.

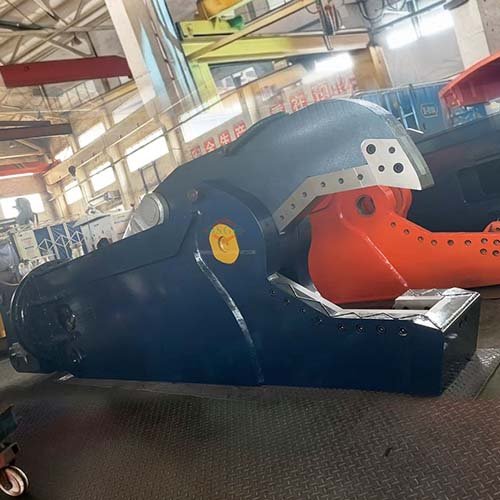

Heavy-duty excavator hydraulic shear from BSGH Granulator
Heavy-duty excavator hydraulic shear from BSGH Granulator can easily handle steel waste such as I-beam and rebar. It also supports multiple connection methods to fit a wider range of excavator models. You can surely find an optimal one based on features below:
- Fully adaptable for excavators ranging from 3 to 80 tons
- High-tensile alloy steel frame and premium H13 blades efficiently withstand daily operations and maximize machine lifespan.
- Equipped with 4-side usable blades—simply change to a new side when worn, reducing your replacement costs.
- A diverse model offers wide jaw openings and strong main shaft force to process used steel scrap.
- 360-degree rotation design realizes continuous adjustment angle in mid-air for exact cutting.
Hot selling excavator hydraulic shear machine for sale
Abide by advanced Italian hydraulic technology, BSGH Granulator hydraulic shears for excavators have been updated to the perfect, capable of providing superior flexibility. To meet your different needs, our 6 models of excavator metal shearing machine can be classified into 3 types: small, mid-size, and large. There must be a model accurately match your excavator—offering powerful cutting force from tip to throat. Explore the specifications below to find the best for your yard.
- Jaw Opening Size: 260mm
- Suitable Excavators: 6-10tons (stick-mounted); 3-10tons (boom-mounted)
- Hydraulic Pressure: 26Mpa
- Tip Cutting Force: 40tons
- Throat Cutting Force: 160tons

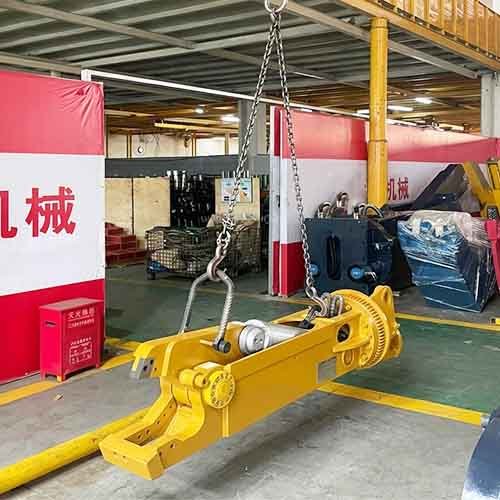

small 360 excavator hydraulic shear machine
- Jaw Opening Size: 360mm
- Suitable Excavators: 10-15tons (stick-mounted); 6-15tons (boom-mounted)
- Hydraulic Pressure: 27Mpa
- Tip Cutting Force: 50tons
- Throat Cutting Force: 176tons

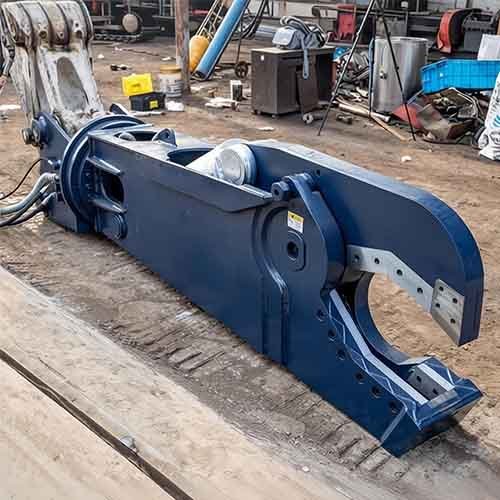

mid-size 460 excavator hydraulic shear machine
- Jaw Opening Size: 480mm
- Compatible Excavators: 20-25tons (stick-mounted); 10-25tons (boom-mounted)
- Hydraulic Pressure: 32Mpa
- Tip Cutting Force: 90tons
- Throat Cutting Force: 360tons

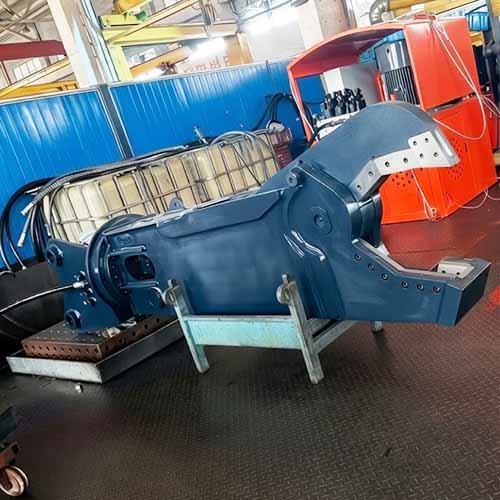

Medium 610 excavator hydraulic shearing machine
- Jaw Opening Size: 600mm
- Compatible Excavators: 20-40tons (stick-mounted); 18-40tons (boom-mounted)
- Hydraulic Pressure: 32Mpa
- Tip Cutting Force: 205tons
- Throat Cutting Force: 930tons
Big 810 excavator hydraulic shearing machine
- Jaw Opening Size: 800mm
- Compatible Excavators: 30-60tons (stick-mounted); 20-60tons (boom-mounted)
- Hydraulic Pressure: 32Mpa
- Tip Cutting Force: 131tons
- Throat Cutting Force: 610tons

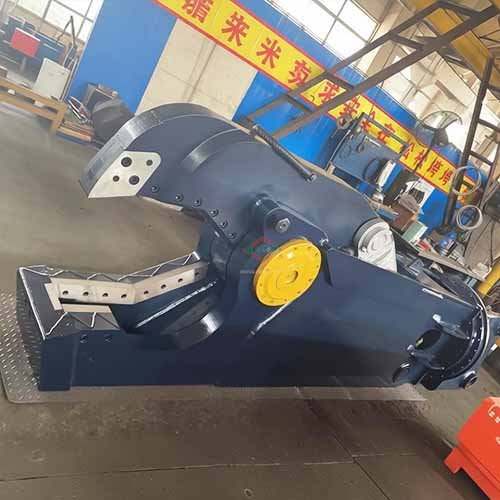

large 1000 excavator hydraulic shearing machine
- Jaw Opening Size: 1030mm
- Compatible Excavators: 40-80tonw (stick-mounted); 25-80tons (boom-mounted)
- Hydraulic Pressure: 32Mpa
- Tip Cutting Force: 250tons
- Throat Cutting Force: 1200tons
industrial excavator hydraulic shear working video
Processing heavy structural steel manually is both dangerous and slow. In this video, our US client Jim, demonstrates how he easily cuts thick I-beams with 460 excavator hydraulic shear. Installed directly to his 20-ton excavator’s boom, Jim controls entire heavy-duty operation in the safe cabin. Notice how it rotates to adjust jaw cutting angle, securely gripping and precisely cutting I-beam in seconds. Jim comments: “This shear exactly catches my waste and strongly shears through all the time! Your 460 integrates with my excavator perfectly, efficiently reducing my scrap volume and making loading incredibly easy, I can operate alone, indeed a highly labor-saving solution for any scrap recycling yard.”
best excavator hydraulic shear advantages
Double-Side Shims design
Double-side shims act as a vital buffer between blades and seats, absorbing massive cutting impact and extending seats lifespan. When blade gap increases over time, you can turn over shims to adjust gap. Both ensure accurate cutting and save replacement costs.
100% Tailored service

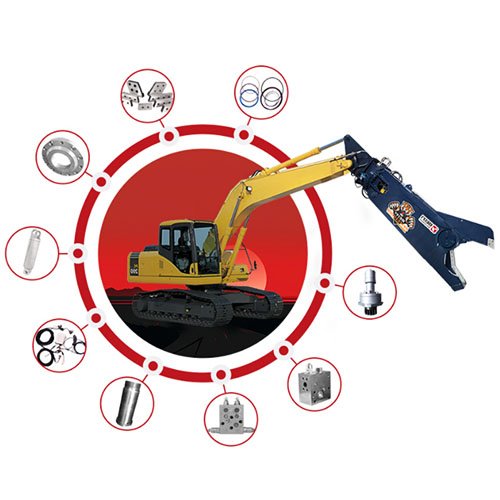

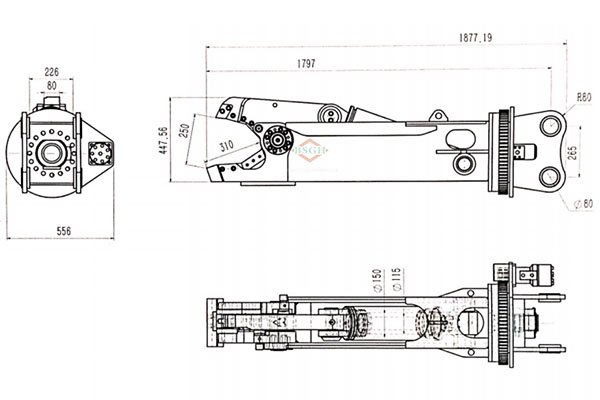

Just tell us your excavator’s specifications, we customize mounting accessories, including tail bracket and pin dimensions. We also offer designs, voltage and blade materials for your excavator metal shear, you will get your individual machine from us.
durable rotary disk
With heat-treat rotary disks to make them incredibly hard, ensuring excellent resistance to wear and rust. To guarantee perfect mid-air control, we also design a brake reducer and a balance valve, making the excavator hydraulic shear rotate at a full 360 degrees smoothly.
Speed control valve
Speed control valve can accelerate jaw’s closing speed when unloaded, and instantly switch to maximum cutting power the moment blades bite metal waste, greatly shortening cycle times and reducing your excavator’s fuel consumption.
Choose Us, helps you get twice the result with half an effort
Our Excavator Hydraulic Shear: A Versatile Multi-Carrier Solution
To maximize versatility on your job site, our hydraulic shears are designed to fit multiple types of heavy equipment. We offer three primary mounting options to suit your specific project needs:

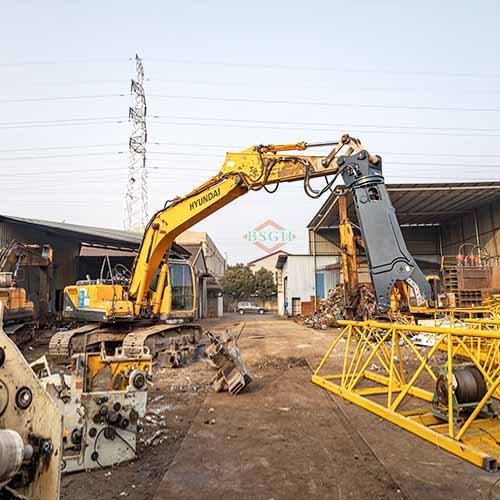

- Excavator Stick Installation (2nd Member): The shear can be installed directly onto your excavator stick. This standard configuration is ideal for high-reach demolition tasks and rapid scrap processing.

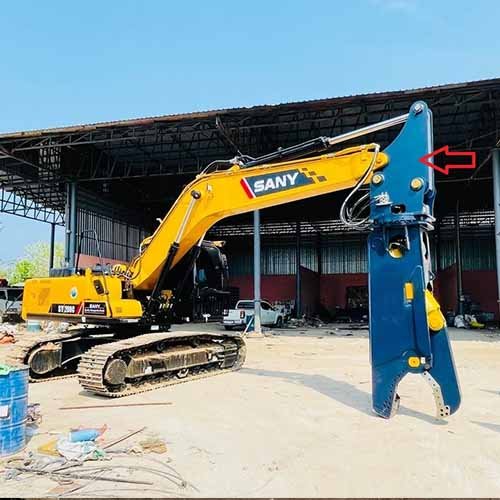

- Excavator Boom Installation (1st Member): For challenging projects requiring maximum power, we offer custom-engineered brackets to mount the shear directly to the main boom. By removing the stick, this setup lowers the center of gravity and significantly amplifies the cutting force.

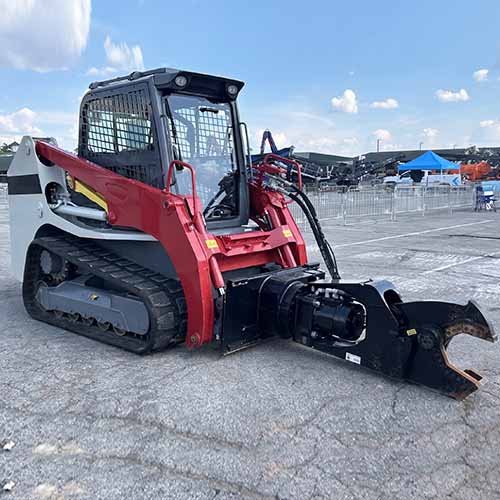

- Heavy-Duty Loader Integration: Using specialized conversion brackets, our hydraulic shears can be seamlessly integrated with heavy-duty Caterpillar loaders. This setup is highly efficient for continuous scrap volume reduction within recycling yards.
raw materials for excavator hydraulic shear
Our excavator metal shearing machine easily cut through heavy scrap steel, dismantle End-of-Life Vehicles (ELVs), process solid rebar, and handle heavy-duty factory demolitions. Built for immense cutting force on-site, it has become global-trusted solution for metal recycling and demolition industries.
Why Choose Our Excavator Hydraulic Shears?
At BSGH, we combine industry-leading engineering with a comprehensive after-sales support system. From urban demolition to heavy scrap steel recycling, we consistently deliver high-performance attachments that drive real value for your business. Partnering with us guarantees:

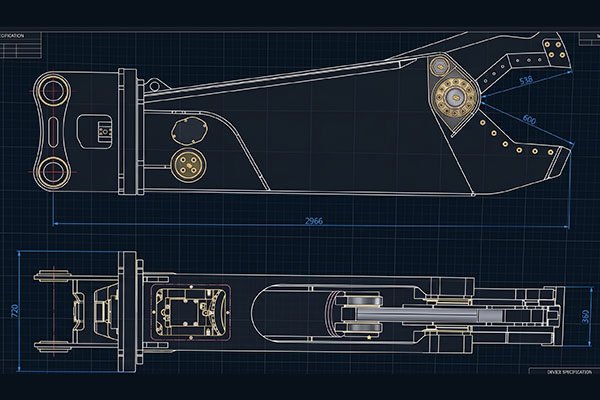

- Leading R&D Engineering: Driven by our innovative engineering team, every shear is built to premium standards, delivering superior and reliable performance even in the toughest demolition environments.
- Factory-Direct Pricing: Skip the middleman. As a direct manufacturer, we eliminate unnecessary markups to offer highly competitive pricing, ensuring maximum ROI (Return on Investment) for your equipment.
- Low Maintenance Costs: Built with robust, high-tensile steel frames and standardized wear parts—including easily replaceable, 4-way indexable blades—our shears significantly reduce daily maintenance expenses and minimize downtime.
- Rapid Production & Secure Global Delivery: We understand that time is money. We guarantee optimized manufacturing lead times and utilize export-grade international logistics. Every machine is sealed in moisture-proof packaging, ensuring it arrives at your yard safely and ready to work.
- Rigorous Quality Assurance & 24/7 Support: Every unit undergoes strict, extreme-load testing prior to dispatch. We back our products with a comprehensive 1-year warranty and round-the-clock global engineering support to keep your operations running smoothly.
Customer feedback
With solid machine stability and reliable global support, our excavator hydraulic shears have earned a proven reputation in scrapyards worldwide. Partner with us with total confidence—just like our global clients below.
“At first I was worried about problems because this was the first time I bought your excavator hydraulic shear, but it worked well incredibly. The most important thing is that the blades are durable and don’t slip on hard materials, making it extremely worry-free.”
Efraín
Customer From Brazil
“In the past, it would take me two days to process scrap steel with the old hydraulic shear, but now your brand machine can finish it in a morning. The workers all say it’s easy to use!”
Roni
Customer From France
“The blades were really durable and replacing became simpler than I expected. One person could do it in minutes, no need special training or ask others for help. This greatly saved my time!”
Mihalis
Customer From Saudi Arabia
FAQ
How can I choose my best excavator hydraulic shear?
There are several factors to consider, such as your material thickness & size, your excavator tonnage. For example, if you want to cut a steel plate, our 260 shearing machine can cut 20*100 mm directly. If no idea, you can freely contact us to confirm.
Will excavator hydraulic shears damage my excavator?
Absolutely not. Our hydraulic shear can just extend your excavator's cutting function, totally can't damage it.
Is it easy to do excavator hydraulic shear maintenance?
Yes. Our excavator hydraulic shear only needs to add hydraulic oil and replace blades regularly, besides, it has 4-sided usable blades, quadruple your cutting part lifespan, greatly saving maintenance cost.
What is the difference between Stick-Mounted and Boom-Mounted installation to excavator hydraulic shear?
The difference lies in installation place and cutting force.
- Stick-Mounted: You need to remove bucket and install shear at the end of the excavator stick, providing maximum reach and agility, perfect for high-reach demolition.
- Boom-Mounted: You need to remove excavator bucket and stick, shear is directly installed to the main boom, allowing you to mount a larger shear on a smaller excavator, drastically maximizing shearing force and stability for heavy structural steel processing.
