Armoured Cable Shredding Recycling Line
• The most efficient solution to help you recycle Armoured cables, saving time and effort
• Powerful Armor wire shredding system + high-precision separation system
• Maximum processing diameter can reach 120mm
• The whole machine complies with CE safety standards
• We provide flexible configuration customization solutions.
What is armoured cable shredding recycling line?
The armoured cable shredding recycling line is engineered for the toughest cable types—those reinforced with steel metal armor or wire mesh that most machines can’t process. These metal armour layer protect critical conductors with a hard outer shell, making them difficult to recycle using standard methods. BSGH’s advanced system solves this by combining high-torque dual-stage shredding with precision air, magnetic, and vibration separation. It efficiently breaks down and separates the metal armor, plastic insulation, and copper or aluminum core, delivering up to 100% purity. This automated process can boosts your scrap material recovery, reduces labor, and maximizes your return on every kilogram of scrap cable.

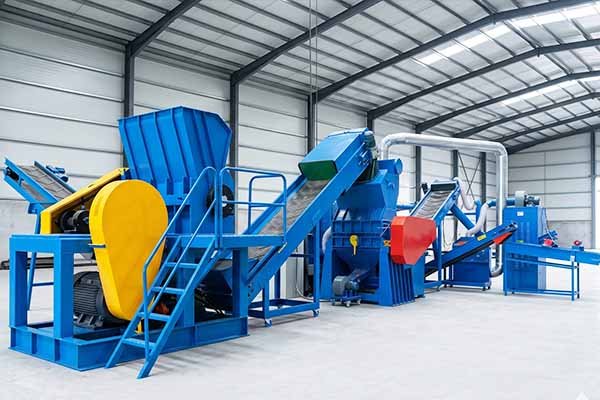

High-quality armoured cable shredding recycling line for sale

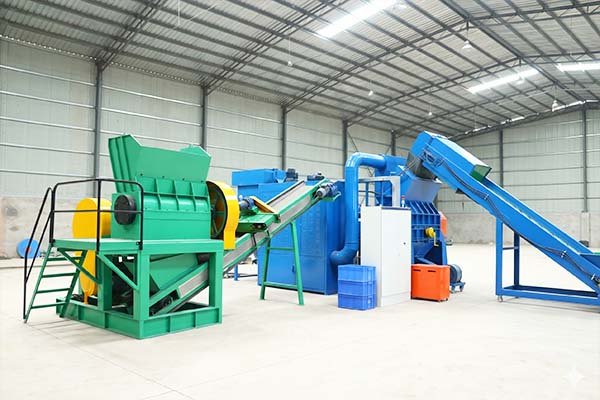

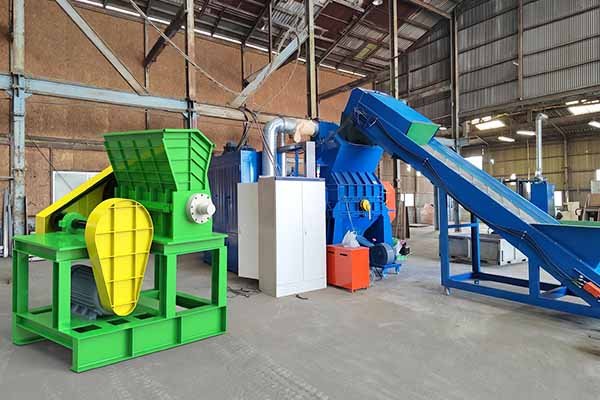

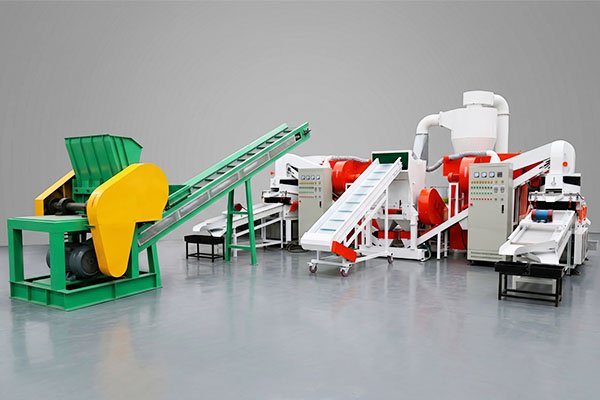

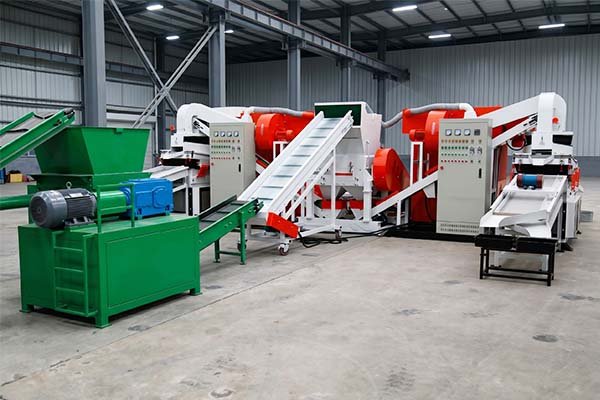

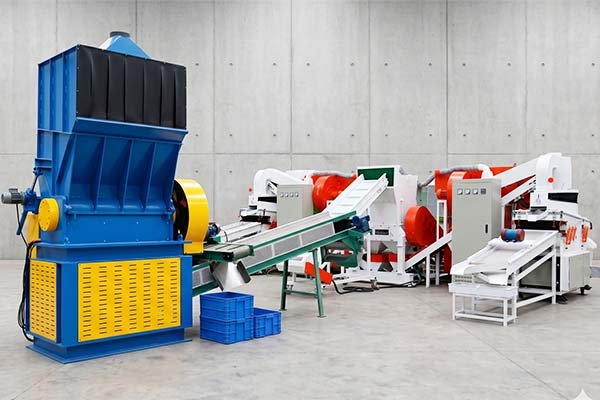

Our armoured cable shredding recycling line mainly consists of armor cable chopper machine and ECO1000 copper wire granulator recycling machine.

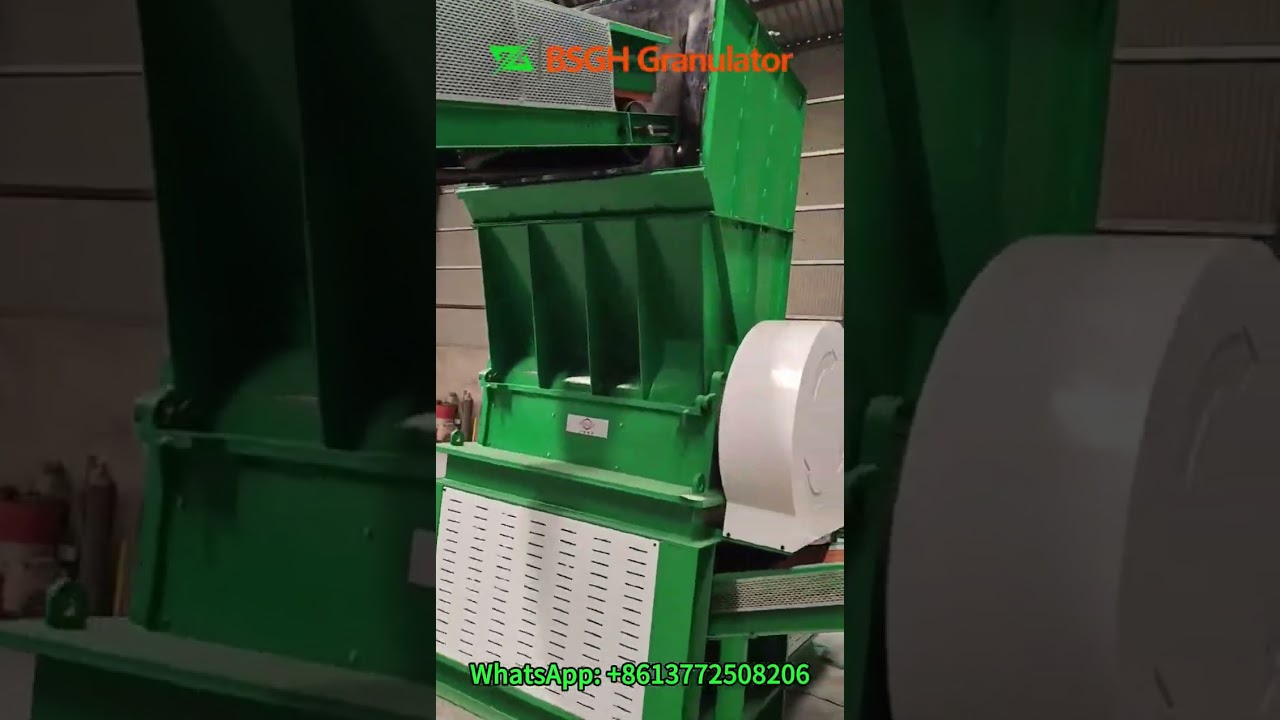

Armoured cable shredding machine
This machine is mainly in charge of the shredding large, hard and thick armoured cable into small pcs first, you can assemble the magnetic separator above conveyor belt or drum magnetic separator at the end of the conveyor belt.
- Power: 160KW
- Belt conveyor belt: 400*2500MM, 1.5KW
- Roll-type magnetic separator: 350*800MM
- Capacity: 2-3T/H
Machine de recyclage de fils de cuivre ECO1000
Eco1000 has 2 air separator systems and 4 small vibrating tables, this machine can process almost all types of scrap cable with high efficiency and high purity than others.
- Processing capacity: 1T/H
- Power: 76KW
- Size: 7.2*7.5*2.2M
- Weight: 5800KG
What can our armoured cable shredding recycling line process?
In addition to various common types of cables, our machine can also efficiently recycle various scrap wires with complex structures and thick insulation layers with a diameter not exceeding 100mm, including armored cables, submarine cables, high-voltage cables, ASCR cables, etc.

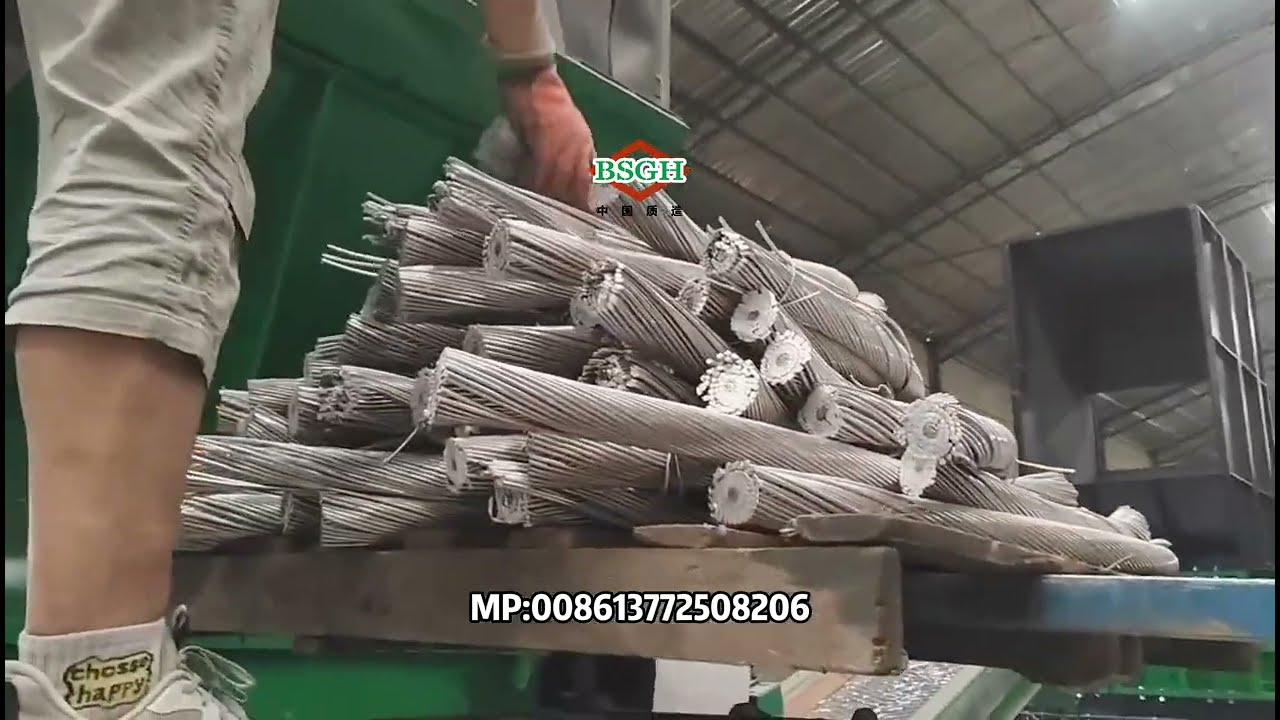

ACSR cables
All types of ACSR cables with single core or multi core, thick and thin wires.
Metal armoured cables
All types of armoured cable diameter from small to big.
high-voltage copper cable
Three-core XLPE insulated copper cable for high-voltage.
High-Density Power Cable
Includes flat, multi-core, armored, shielded, and flexible types
Standard Feeder Cable
Different size of 1/4″ 3/8″ 1/2″ 5/8″ 7/8″ 1-1/4″ 1-5/8″ Coaxial Feeder Cable
Working process of the armoured cable shredding recycling line
Our cable shredding recycling line can efficiently recycle armored cables through the following steps. You can click on the video to check the machine working details.

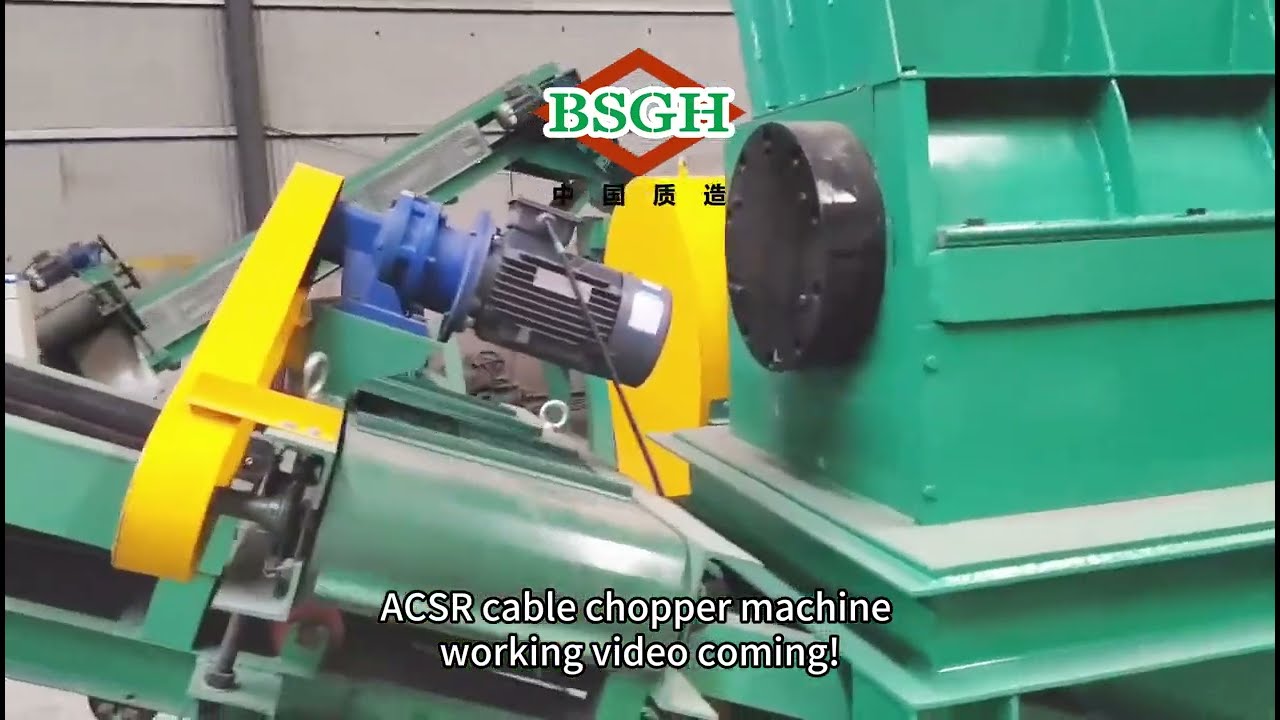

1. Armor cable chopper machine initially shreds the armored cables with strong shearing and tearing forces can easily reduce the armored cables to manageable sizes.
2. Conveyor belt conveys the initially shredded scrap wire to the main crusher. At the same time, the belt magnetic separator installed on the conveyor belt removes all the iron in the cable.
3. Main crusher crushes the scrap wire into 3-5mm copper and plastic mixed particles.
4. Two air separators use the air and difference in weight of the two materials to separate them, extracting the copper particles from the plastic insulation layer.
5. Vibrating tables secondary separate the mixed particles. Finally, you will get 100% pure copper particles, iron, and plastic insulation layers, all of which can be recycled or sold directly at a high price.
armoured cable shredding line features
Powerful Crushing System
Low-speed, high-torque shredder effectively handles even hard and thick-surfaced cables.
Haute efficacité
The pre-shredder can process about 3T/H; air separator system can reach 1T/H.
Superior Copper Recovery
High-precision separation achieves a 99.9% copper recovery rate, ensuring minimal loss of valuable material.
Low Labor Costs
The entire system is designed for operation by only 1-2 people, significantly reducing your workforce expenses.
Durable and heavy-duty
For big armor cable, hard cables no need to process previously, just input directly.
Simple Maintenance
Blades, screens, blades and other accessories are easy to replace, which greatly reduces operational downtime.
Your trustworthy armor cable shredding recycling machine manufacturer
company advantages
Granulateur BSGH - Votre partenaire fiable en Chine
As a leading top armoured cable shredding recycling line manufacturer for over 30 years in China, BSGH Granulator offers the best solutions for recycling your armoured cables. In addition to our Armoured Cable Shredding Recycling Line, we also provide Armoured Cable Stripping Machines, which can easily remove both the metal layer and insulation, allowing you to recover the entire copper core with minimal effort.
Since 1995, we’ve been committed to delivering high-quality, cost-effective cable recycling solutions to recyclers around the world. Our machines have been sold to over 80 countries and regions, including the USA, UK, Japan, South Korea, Thailand, Chile, Austrilia and Malaysia, earning consistent praise from our global customer base for reliability and performance.
At BSGH, we don’t just offer standard models—we specialize in customized solutions tailored to your exact needs. Our experienced design team can customize every detail of your machine, including auxiliary equipment, motor power and brand, blade material, screen size, voltage, and machine color.
If you have any requirements about the machine, you are welcome to contact us at any time.
More pictures and details below
FAQ
Can your engineers come to our local area to install the machine?
Yes, we have a team of experienced technicians available for global installation support. If you require on-site assistance, you need to cover all the cost of the technician's round-trip airfare, hotel accommodation, meals, and bear the allowance of US$200 per day.
My armor cables are a bit special. Can I send the raw materials to your factory to test the recycling effect?
Yes, we are very welcome to help you test your raw materials, and we will shoot a test video for you.
What are the consumable parts for armoured cable shredding recycling line?
Blades, crusher sieve, pulley belt, you can buy more blades to meet long-term use needs.
Which kinds of cable can your armoured cable shredding recycling line process?
Almost all types of cables diameter below 100MM, our machine can process directly no need to pre-process.
How about the shredder line warranty?
All our machine have 12 months warranty. You are also welcomed come to check machine running after machine production finished.
