Electric Motor wrecker factory

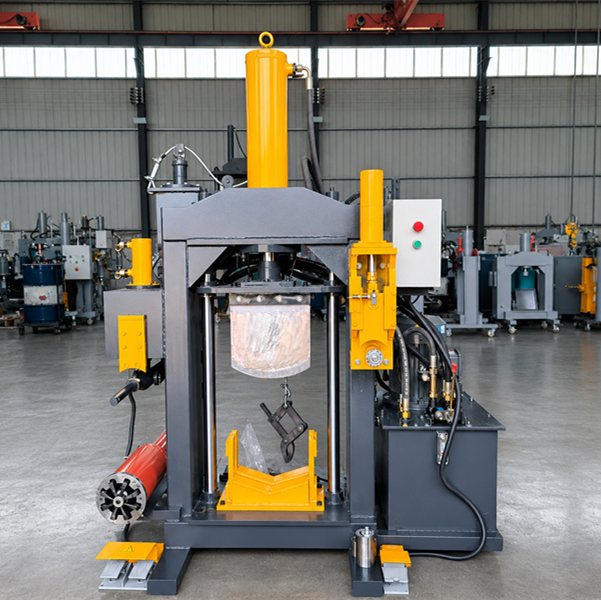

BSM-60 electric motor wrecker from BSGH Granulator is the best From the early days of its establishment, newly developed specialized designed to pull electric motor windings from scrap motor stators at one time, with the most convenient easy operations, for so many years we have committed to the research and development for scrap motor recycling machines, over the past 25 years, Our continuous efforts ensure that our products remain at the forefront of innovation, meet the diverse needs of customers and the evolving needs of the industry.
BSGH Granulator
Best electric motor wrecker machine in the world
Our electric motor wreckers with different models can recycle different types of motors. All of them have good reputations in the recycling industry because of their high efficiency, good quality and durability. Our series of products are constantly being upgraded and modified. On the premise of basic functions ensuring, We are also making some changes according to the new needs in recycling practice. Each machine is similar but unique. In this way, the motor recycling machine series ensures diversification and personalization thus, the needs of every customer can be well met.
most popular electric motor wrecker machine models
| Model | Power(KW) | Weight(KG) | Capacity(PCS/H） | Net Diamension(L*W*H, MM) |
|---|---|---|---|---|
| BSM-20 | 5.5 | 414 | 80~100 | 1220*940*920 |
| BSM-30 | 5.5KW | 395 | 60~80PCS/H | 2310*770*950 |
| BSM-40 | 7.5 | 670 | 0~120PCS/H | 1940*1430*1150 |
| BSM-50 | 7.5 | 650 | 40~60PCS/H | 2140*800*730/950*540*780 |
| BSM-60 | 4 | 508 | 80~120 | 1370*1040*1460 |
| BSM-70 | 3 | 430 | 200~300 | 1500*650*800 |
| ST-400 | 5.5 | 1100 | 8~30 | 1800*900*1950 |
What does electric motor wrecker consist of?
The structure of all electric motor wreckers can be divided into two parts. One is the cutting part and the other is the pulling part.
Cutting part: The blade can be divided into three categories: Flat blade, Sharp blade and Semi-Rod Blade.
Flat blade: This type is used to halve the motor case. ST-400 and BSM-50 are equipped with it.
Sharp Blades: It is designed for cutting the motor stator. Machines such as ST-400 and BSM-50 use this kind of blade to cut motor stators.
Semi-Rod Blade: It is used to cut the copper winding at one end of the stator leading the pulling process more easier. MR-W, BSM10/20/40/60, and BSC mainly employ this type.
Pulling part: The purpose of the pulling part is to process stators of different diameters.
It mainly consists of claws of different application sizes, some machines also add hydraulic clamps. The 8-claw is mainly used to handle stators below 120mm. The 16-claw aims to process stators below 180mm. The hydraulic pliers can deal with stators with larger diameters.
Different blades have different uses. They are all made of high hardness, good quality and wear-resistant materials.
What's the application of electric motor wrecker?
Electric motor wreckers are mainly used to recycle scrap motors which are mainly found in household appliances and industrial equipment including washing machines, air conditioners, electric vehicles, fans, machine tools, exhaust fans, car engines, compressors, etc.
25+ experience in recycling fields
10+Years experience in electric motor wrecker machine
BSGH Granulator is located in Zhejiang china, sales department in Xi’an. Since the early days of the company, our goal has been to manufacture excellent machines for recycling scrap metal. We have rich production experience, more than 25 years of producing waste copper granulator machines and more than 10 years of producing scrap motor recycling machines. Products are constantly updated to follow the trends of the times, and the types of products are enriched too, such as hydraulic alligator shear cutters and hydraulic briquetting machines. We also provide customized services in order to meet all our customers’ needs from all over the world. Not only have we put a lot of effort into production, we have also continuously improved after-sales service which adopted an online and offline service approach to ensure that every customer can successfully install and use our machine.
Over the years, BSGH Granulator has continued to expand and develop, and our machines have been well popular. This is enough to show that the quality of the machine and our service attitude have been recognized by the world market. In the future, we will be modest and prudent and still produce good machines with heart and soul.
leading electric motor wrecker
How dose electric wrecker works?
The entire workflow can be divided into two steps: cutting and pulling.
Step one: Put the scrap motor under machine cutter and fix it with machine or hand (Depending on the type of the machines), rotate and then the blade will cut it in half or separate the ends of copper winding from its body. (Relying on the type of blades)
Step two: Take out the motor and put it to the pulling part where hydraulic claw will pull the entire copper winding out automatically.
Note: It is worth mentioning that the cutting and pulling functions of motor recycling machine can be used at the same time, which can effectively improve the efficiency of the machine.
routine maintenance when using electric motor wrecker?
- Check the electrical box of the machine regularly to avoid water or moisture.
- The power socket and sheath should be replaced if damaged.
- The running tracks on both sides of the cutting machine need to be refueled every day. It is best to add lubricant twice a day.
- The claws need to be lubricated with lubricating oil regularly. It is best to add lubricant twice a day.
- Do not pile up flammable objects around the machine to avoid dangerous accidents.
- When there is glue or bamboo tightly in the stator, you need to do pre-treatment according to the actual situation: heating first.
- The hydraulic tank should not be filled up fully, 2/3 or 3/4 of the oil tank is recommended.
- Claws and push rods need to be inserted into appropriate positions according to specific recycled motors.
- When the stator is too tight or too loose, you need to cut the stator a few more times.
- Claws only can be inserted into copper windings, DON’T insert into silicon steel or else, the claws will be damaged.
why us? - our happy customer
The most complete and the earliest for electric motor wrecker machine R&D, producing for more than 10 years, here you not only can get the best machines but also the best professional service, you also very happy just like my other customers.
shipment
How to packed your machine? some machine are LCL, we will packed with plastic foam first and then the outer with plywood case, some are FCL, machine will packed with foam first and then will be loading into container first.
what will you get?
after order confirmed
Arrange Production
We will notify the production department to manufacture according to requirements of the customers and production deadline. When machine is finished, we will send a video to customers to check, If they are satisfied with it, we will quickly arrange delivery.
Shipping and Delivery
We will hand over the machine to a reputable freight company that has long-term cooperation with us. The machine will be sent to the designated port. We also pay attention to the transportation information timely to make sure the safe arrival.
After-sales
We provide both online and offline after-sales services. When you meet some problems can’t be solved by yourself, we will help you through network. When they cannot be solved online, our technicians will come to your country and assist you carefully.
What are you waiting for, send me your requests NOW!
