BS-120 Electric Cable Stripping Machine | 10–120mm Heavy-Duty Cable Stripper

120MM Electric Cable Stripping Machine

分类 Wire Stripper Machine

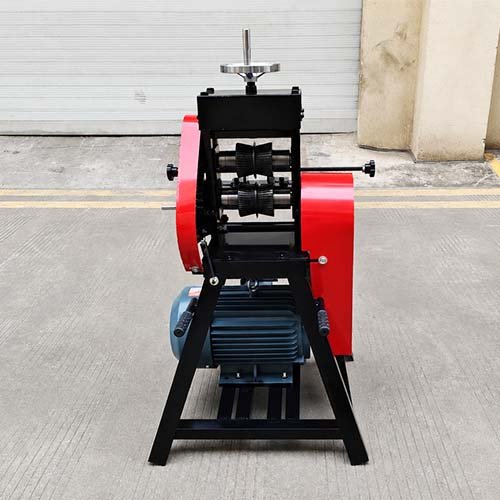

BS-120 heavy duty cable stripping machine for 120mm armoured cable

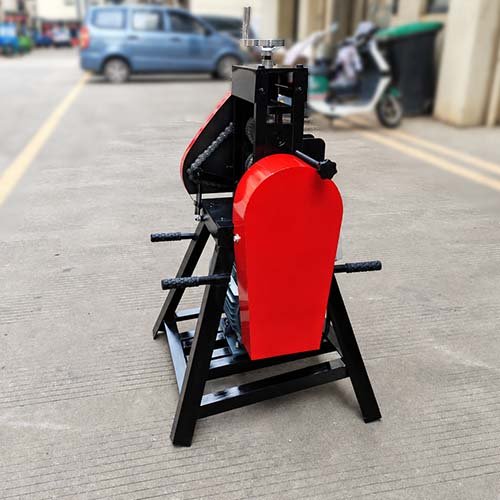

bsgh granulator 120mm cable stripping machine for intact copper wire separation

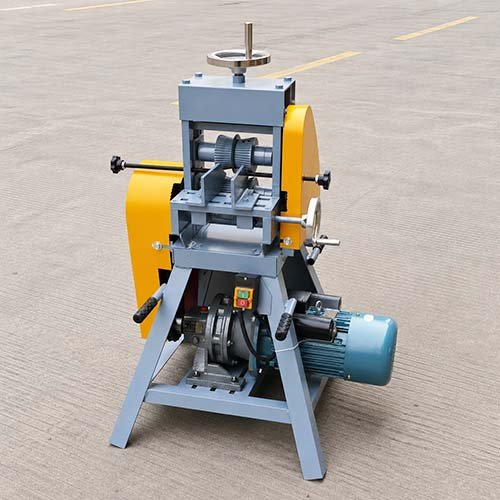

cheap cable stripper machine BS-120 for large cable from bsgh granulator

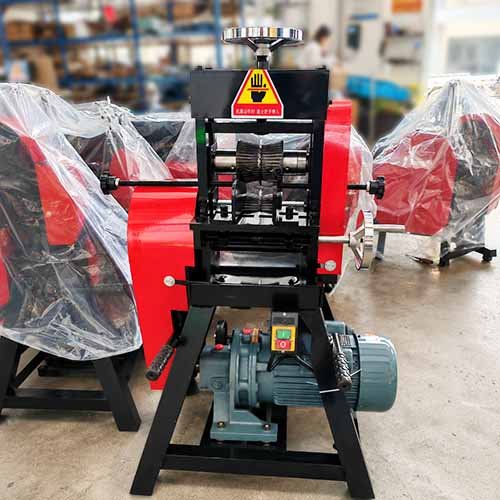

newly development wire stripping machine BS-120 in bsgh

120MM Electric Cable Stripping Machine

BS-120 cable stripping machine is built for stripping steel-sheathed, aluminum-sheathed, and armoured cables ranging from 10 to 120mm..
Cheapest model for peeling thick cables.
Low center-of-gravity design keeps the machine steady during tough cable processing.
9CrSi cutting blades have good hardness, achieving complete copper wire separation in one pass.
Four anti-slip carrying handles for flexible movement.
You can freely choose voltage, color, and reverse switch function.
Tips: When you process scrap cables, it’s better to sort them by different diameters, so there is no need for frequent adjustment.

products details

Newly development BS-120 electric cable stripping machine from BSGH Granulator is designed for peeling scrap armored cables, steel-sheathed cables, and aluminum-sheathed cables from 10mm to 120 mm in diameter. When you feed materials into BS-120, blades on two rolling shafts cut through outer sheath from both side, leaving two incisions and separating copper core from insulation layer in one pass. Inner copper wire remains intact and easy to sell. As the cheapest model for processing 120mm tough cables, BS-120 is easy to operate, easy to move with four carrying handles, suitable for individual recyclers, small scrap yards, DIY metal recovery users, and cable recycling workshops.

video description

Machine Model: BS-120 120MM Cable Stripping Machine
Customer: David from the USA
David’s BS-120 heavy-duty cable stripping machine is ready and in testing now. Before feeding, our worker adjusts the right-hand handwheel to fit cable diameter, ensuring accurate feeding. When tough aluminum armored cable enters the machine, BS-120 quickly cuts the outer sheath completely, as it is multi-layer armored cable, need you to strip again to get copper core. What a smooth feeding, stable cutting, and clean stripping without jamming!
David was satisfied with our professional test and is looking forward to putting it into operation after delivery.

120mm electric Cable stripping machine for sale

Since BS-120 electric cable stripping machine came to the recycling market, it has become a popular choice for processing large scrap cables up to 120mm for the cheapest option. If you have higher demands, you also can considering BS-AN125 cable stripper, the comparison below will help you choose the right cable stripping machine based on your material type, cable size, and recycling needs.

Model	BS-120 Electric Cable Stripping Machine	BS-AN125 Heavy-duty Cable Stripping Machine
Motor Power	3kW with reducer for 220V 4kW, 6-pole motor for 380V	3kW with reducer
Voltage	220V/380V or Customized	380V / Customized
Processing Range	φ10–120mm	φ1.5-5mm φ6-35mm φ10-120mm
Machine Size	6758110cm	9205001300
Machine Weight	130kg	260kg

Obviously, if you just have heavy-duty cable between 10-120mm, you can just choose cheap cable stripper machine BS-120, but if you have ultra-thin wire below 10mm, you’d better choose BS-AN125.

Choose the Right Power for Your BS-120 Cable Stripper

Advanced BS-120 electric cable stripping machine is available with two standard power options: 220V and 380V. We can also customize the voltage to match your local power supply.

220V version is equipped with a geared motor, which provides higher torque and stronger cable-biting force. It is a practical choice for small scrap yards, workshops, and individual recyclers who only have single-phase power but still need to strip thick or armored cables.
380V version uses a 6-pole motor for smoother operation, better durability, more powerful than single-phase, more stable long-hour performance. It is ideal for factories, cable recycling plants, and scrap yards that need continuous daily operation.

If you need flexibility and strong torque with single-phase power, choose 220V geared motor version. If you need heavy-duty, long-term industrial operation, also have industry voltage, 380V 6-pole motor version is a better choice.

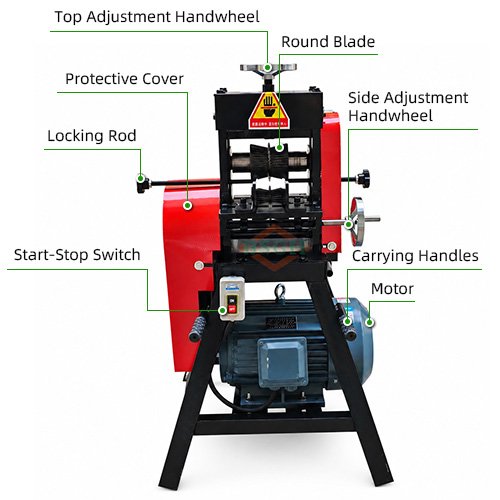

BS-120 electric cable Stripper Machine Structure

BS-120 electric cable stripping machine is designed with a practical and user-friendly structure. Each component—from the blade adjustment system to the feeding inlet, motor, handles, and control switch—is built to make cable stripping easier, faster, and more stable.

Top Adjustment Handwheel: Adjusts blade gap between two rollers when stripping different cables.
Side Adjustment Handwheel: Controls feeding inlet opening for smoother cable feeding.
Locking Rod: Fastens feeding inlet for stable feeding.
Four Carrying Handles: Holds anti-slip handles and you can easily move 120mm cable stripping machine.
Round Blades: Made of high-quality 9CrSi alloy steel for good hardness, wear resistance, and long service life.
Start-Stop Switch: Simply presses on/off to start and stop BS-120 quickly.
Pure Copper Motor: Provides stable power, better durability, and reliable long-term performance.
Protective Cover: Protects machine for longer lifaspan.

Raw materials

BS-120 heavy-duty electric cable striping machine is specifically designed to process hard cables with diameters ranging from 10 to 120 mm such as armoured cable, shielded cable, high-voltage cable etc.

Packing & Delivery

Your cheap BS-120 electric cable stripping machine will be packed by protective film in a wooden crate from BSGH Granulator factory, then ship by sea to destination port, you can trace each step with our video and shipping list.

Good Comments

As a newly launched 120mm cable stripping machine, BS-120 has quickly gained positive feedback from customers worldwide. Its strong stripping power, stable operation, and excellent performance on thick and armored cables make it a reliable choice for modern cable recycling.

Rated 5 out of 5

“I bought BS-120 cable stripping machine from BSGH, reliable service and transparent process, satisfying!”

Rated 5 out of 5

“Very reliable machine. BS-120 handles our heaviest scrap wires with ease and stays perfectly steady while working. The price is really awesome.”

Rated 5 out of 5

“I was shocked by its compact structure, just placed at the corner, runs smoothly, definitely worth every penny!”

FAQ

What should I do if final copper wires from BS-120 120mm cable stripping machine are broken?

Do not worry, when copper core is damaged, because blade gap is too small. You only need to fine-tune the top adjustment handwheels to slightly increase blade distance till final copper core intact. You can also ask us for help online.

For BS-120 electric cable stripping machine, do you recommend single phase or 3phase voltage?

Surely 3phase, if you have industry voltage, you must choose 3phase because 3phase voltage is more powerful; but if you only have single phase voltage, you can choose single phase, single phase voltage price higher than 3phase voltage.

How do I choose between BS-AN120 and BS-120 electric cable stripping machine?

Dear friend, you have a good understanding of our cable stripping machine, and if you consider budget first, then BS-120 is cheaper and fit you, but if you want heavy-duty and more stable one, you can choose BS-AN120 cable stripper.

If I have usd1000 budget, my cable range under 120MM, which electric cable stripping machine should I choose?

You can choose our BS-120, this model can help you to process your scrap cable well also fit for your budget.
