One Stop Scrap Copper Recycling Solution Provider for Your Scrap Copper Wire Recycling Machine!
Designed to give maximum possible blade length without losing cutting capacity, the AS-2000 scrap metal cutting shear is perfect for a wide variety of yard uses in particular the handling of larger pieces of non ferrous scrap, such as metal sheet, stainless steel pipes and other recycling needs. Whether for metal smelting or scrap metal recycling, our AS-2000 scrap metal cutting shears are indispensable tools for efficient operation.
The AS-2000 scrap metal cutting shears is easy to operate and can efficiently process scrap metal materials with strong shearing force. We have designed overload protection system and emergency stop button to maximize the protection of the machine. On the right is a video of the machine working for your reference.
In order to cut large materials into small scraps for easier transportation and smelting, our AS-2000 scrap metal cutting shear is an excellent option for industrial recycling purposes. Easy to operate and adjust continuous operation flexibly, this machine will cut all types of material into any form or shape with 200T shearing ability. There are more details about our AS-2000 scrap metal cutting shears below.
Model | AS-2000 Scrap Metal Cutting Shears |
Weight | 5500KG |
Power | 22KW |
Cutting Part Size | 2400*1400*1500mm |
Oil Tank Size | 1770*1350*1340 |
Efficiency | 7-12Times/Min |
Max Shearing Ability | 2000 KN |
Blade Length | 800mm |
Max Opening Size | 380mm |
Shearing Material Size | Channel Steel: 280*82*9mm Angle Steel: 140*140*10mm Round Steel: ф70 Steel Plate: 400*25mm Square Steel: 65*65mm |

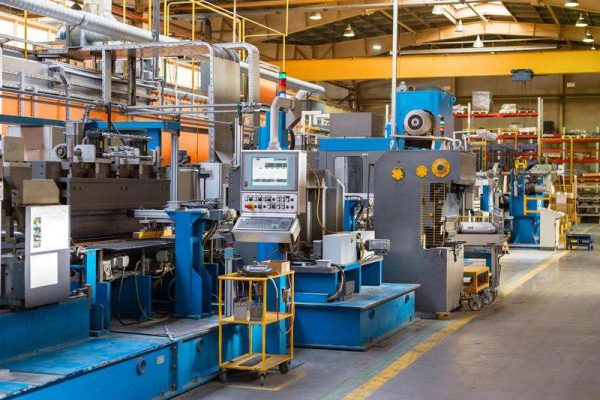

Our AS-2000 cutting shears can process almost all kinds of scrap metal materials and is ideal solution for metal recycling factory, smelters, foundries, machinery industry.
AS-2000 scrap metal cutting shears is consist of mechanical system, electrical system and hydraulic system.

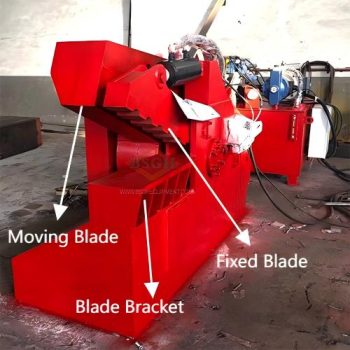

Mechanical system is main parts of the machine, which is welded by base, fixing blade, moving blade, shear cylinder.

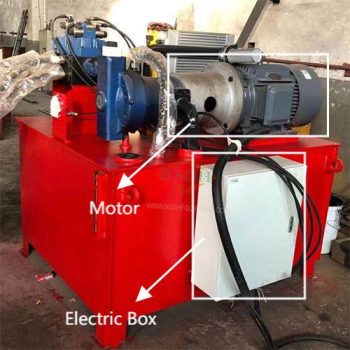

The electric box control the normal operation of the whole machine

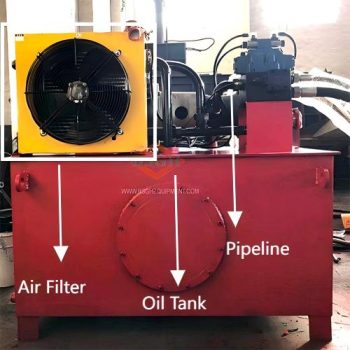

It’s composed mainly by hydraulic pump, hydraulic cylinders and pipelines.
Single Operation: Put the scrap metal pipes or steel plate on the blades bracket, and one time press the button, one shearing motion.
Continuous Operation: Shearing machine will not stop cutting the scrap metal until it become format shape, don’t need to keep pressing button.
As the top scrap metal recycling machine manufacturer, BSGH Granulator has been in the recycling industry for more than 25 years and has a rich product line. In addition to alligator shears, we also produce copper recycling machines, radiator recycling machines, motor recycling machines and other recycling machines to meet your various needs. Whether you’re a new or established recycling business, our machines and our support will help drive your success every step of the way.
Scrap Metal Cutting Shears are used in scrap yard and recycling plant to process various materials, such as square steel, round steel, angle steel, etc.
They can process large pieces of scrap metal, effortlessly cutting through various metal plates. They are reliable, highly productive, and suitable for metal fabrication, recycling, and smelting.
Yes, we have a variety of cutting shears models, shearing capability from 60KN to 5000KN. Whether you are personal use or industrial recycling, whether you want integrated machine or split machine, we can fully meet your needs.
Long-term use may cause the seal parts aging and the dust-proof ring to failure, which will cause hydraulic oil and metal scraps appearing on the piston rod. Therefore, the seal parts and dust-proof ring should be replaced in time.
BSGH Granulator is specialized in producing copper granulator recycling equipment.
Our company aims at providing the most superior service for clients and serving the highest quality products to customers.
